| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43045-1000 |
| Color: | Black |
| Series: | 43045 |
| Amperage: | 8.5 A |
| Connector Type: | Micro-Fit 3.0 |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 3 mm |
| Voltage: | 600 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .254 µm |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | SMC and Wave |
| Duration at Max. Process Temperature (seconds): | 030 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Glow Wire Capable: | Yes |
| Mated Height: | 10.29 mm |
| Stackable: | No |
| Surface Mount Compatible: | Yes |
| Breakaway: | No |
| Shroud Type: | Fully |
| Product Name: | Micro-Fit 3.0 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0430451000 |
| SKU: | MOL43045-1000 |
43045-1000
| Heilind Number: | MOL43045-1000 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43045-1000 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

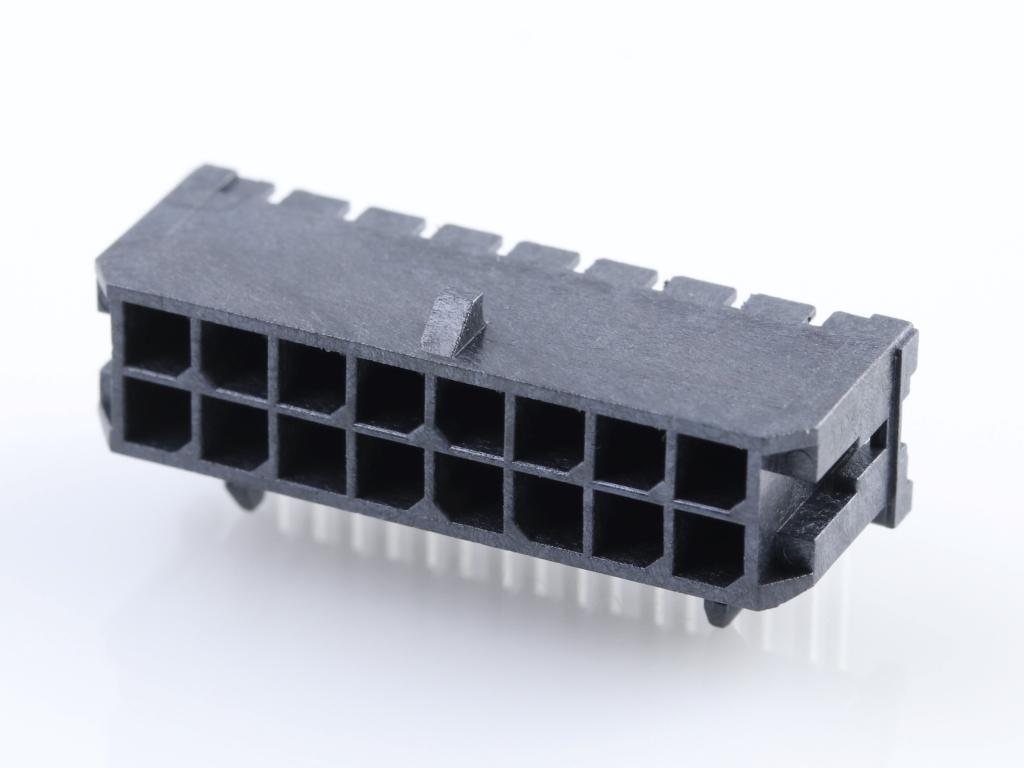

Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
Introducing the Micro-Fit 3.0 Right-Angle Header, a high-performance PCB connector designed for precision and durability. With a pitch of 3.00mm and featuring dual rows of 10 circuits, this header ensures reliable connectivity in compact spaces. The snap-in plastic peg PCB lock offers secure attachment, while the tin plating and glow-wire capability guarantee safety and longevity. Engineered for versatility, it is suitable for wire-to-board applications and is compatible with through-hole termination. Constructed with high-temperature thermoplastic and rated for operating temperatures between -40 and 105°C, this header meets stringent quality standards. With RoHS compliance and lead-free process capability, it is environmentally friendly. Trust the Micro-Fit 3.0 for your critical connectivity needs.
