| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43045-1600 |
| Gender: | Male |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Pitch: | 3 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 8.5 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| PCB Connector Type: | Header |
| SKU: | MOL43045-1600 |
43045-1600
Specifications
Detailed Description
Introducing the Micro-Fit 3.0 Right-Angle Header, a versatile and reliable connectivity solution for your PCB applications. With a compact 3.00mm pitch and featuring dual rows, this header offers 16 circuits for efficient power and signal transmission. The inclusion of a snap-in plastic peg PCB lock ensures secure and stable connection, while its tin plating and glow-wire capability enhance safety and durability. Designed for high performance, this black header is rated for 8.5A and 600V, with brass contacts and a high-temperature thermoplastic body for superior conductivity and resilience. Perfect for space-constrained environments, its right-angle orientation and through-hole termination method allow for easy installation onto 1.6mm thick PCBs. RoHS compliant and suitable for lead-free soldering processes, the Micro-Fit 3.0 is the ideal choice for your wire-to-board connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 22-23-2021 | KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, 2.54µm Matte Tin (Sn) Plating, 3.56mm Tail Length |  |
 | Molex 22-28-4020 | KK 254 Breakaway Header, Vertical, 2 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm | |
 | Molex 39-29-3066 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 43020-0401 | Micro-Fit 3.0 Plug Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43020-0600 | Micro-Fit 3.0 Plug Housing, Dual Row, 6 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43025-1000 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43045-0600 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43045-0800 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43045-1000 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43045-1612 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 16 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43045-1800 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 18 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43650-0215 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black | |
 | Molex 43650-0405 | Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 0.76µm Gold Plating, Glow-Wire Capable, Black | |
 | Molex 50-37-5063 | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 6 Circuits, Natural | |
 | Molex 53047-0310 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 3 Circuits, 2.30mm PC Tail Length | |

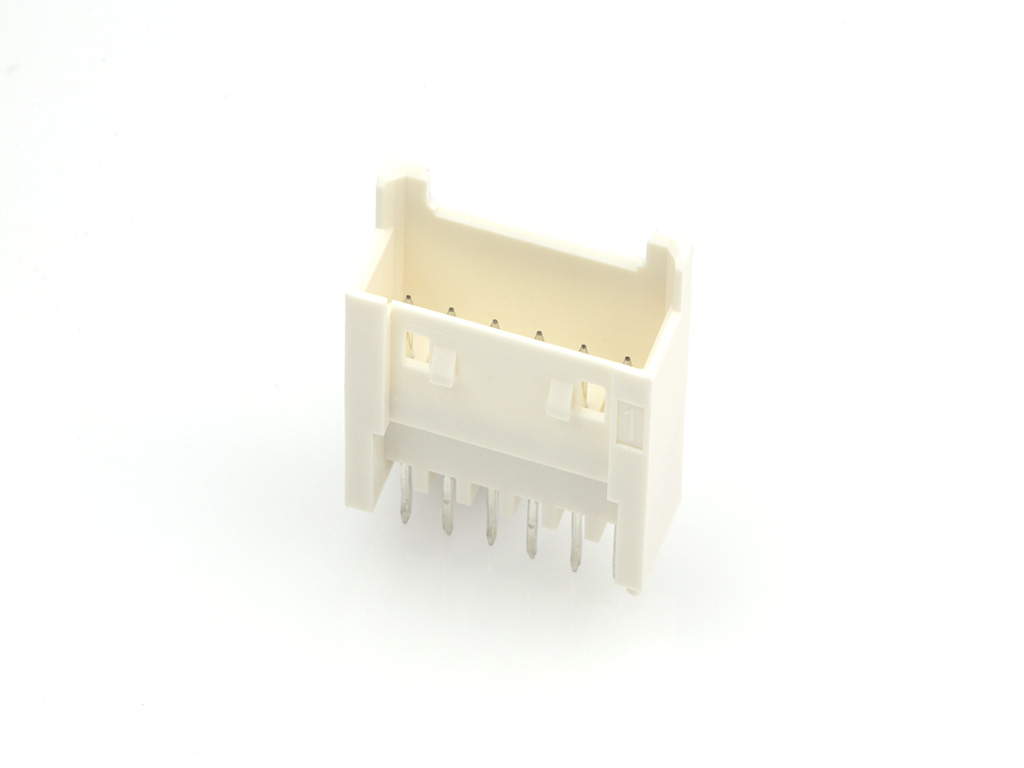

 | Molex 53517-0630 | 2.50mm Pitch, Mini-Lock PCB Header, Single Row, Vertical, Through Hole, Matte Tin Plating, Positive Lock, 6 Circuits, with Potting Capability, 3.50mm PC Tail Length, Natural | |
