53047-0410

ICC Number:	MOL53047-0410
Manufacturer:	Molex
Manufacturer Number:	53047-0410
Datasheet:	Datasheet
ECAD Model:

Description:

1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 4 Circuits, 2.30mm PC Tail Length

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 53047-0410
Gender:	Male
Number of Contacts:	4
Number of Rows:	1
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Pitch:	1.25 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	1 A
Voltage Rating:	125 V
Operating Temperature:	-40 to 85 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL53047-0410

Detailed Description

Introducing the PicoBlade 53047-0410, a high-performance 1A straight through-hole connector designed for seamless wire-to-board or board-to-board connections. With 4 tin-plated contacts and a pitch of 1.25mm, this connector ensures reliable signal transmission in compact electronic applications. Operating at voltages up to 125V and featuring a low-profile vertical orientation, it is ideal for space-restricted designs. Engineered for durability, the 53047-0410 offers a wide operating temperature range of -40 to 85°C and is RoHS compliant, making it suitable for a variety of industries including automotive, consumer electronics, and telecommunications. Trust in the quality and performance of the PicoBlade 53047-0410 for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock

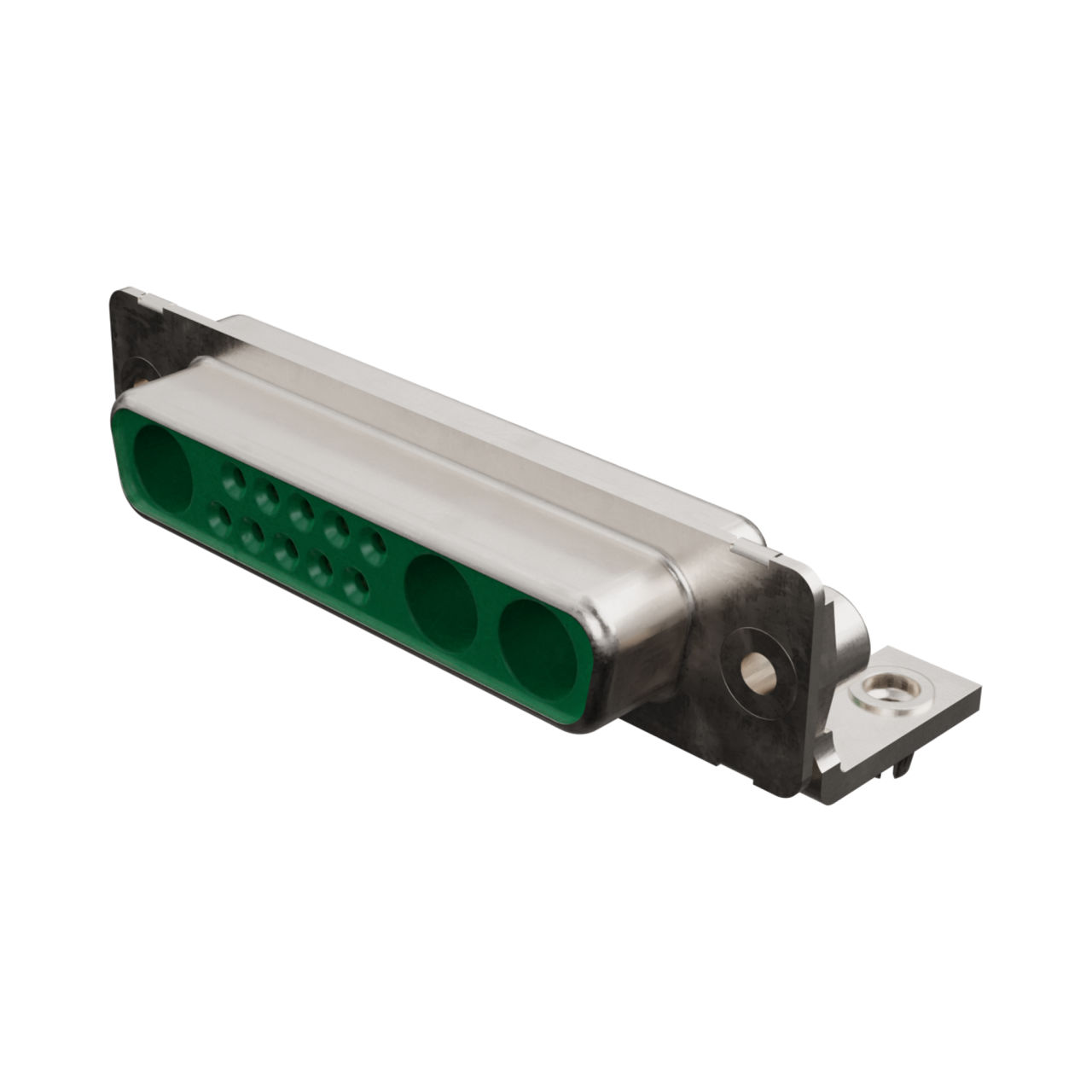

	Molex 173107-0324	FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 14.50mm Riveted Metal Bracket and #4-40 Clinch Nut, 13 Circuits Max, 10 Signal Contacts Loaded, Green Insulator

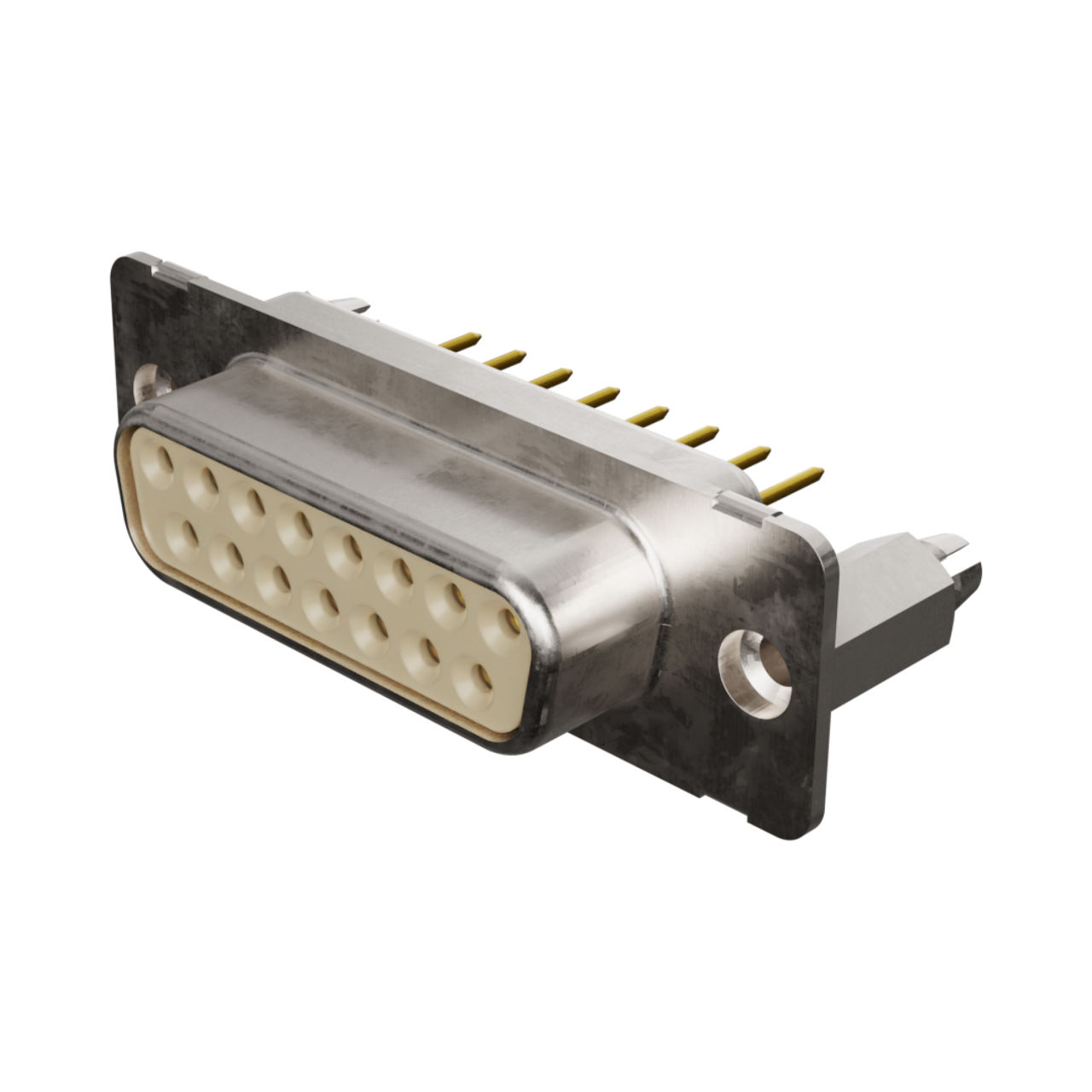

	Molex 173109-2436	FCT Standard-Density D-Sub Connector, Female, Straight, PCB Through Hole, 11.70mm Tail Length, Gold Plating, 200 Mating Cycles, 8.10mm #4-40 Snap-in Bolt, 15 Circuits, Heat Resistant Natural Insulator
