90131-0767

ICC Number:	MOL90131-0767
Manufacturer:	Molex
Manufacturer Number:	90131-0767
Datasheet:	Datasheet
ECAD Model:

Description:

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 14 Circuits, 0.38µm Gold (Au) Selective Plating

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 90131-0767
Gender:	Male
Number of Contacts:	14
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Gold
Pitch:	2.54 mm
Shroud Type:	No
Flammability Rating:	UL 94V-0
Current Rating:	3 A
Voltage Rating:	350 V
Operating Temperature:	-55 to 125 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL90131-0767

Detailed Description

The Molex 90131-0767 is a high-quality black PCB pin header, part of the C-Grid III series. With a current rating of 3 A and 14 contacts arranged in 2 rows, this connector ensures efficient power and signal transmission. Featuring a durable polyester construction and straight body orientation, it offers reliability in vertical applications. Each contact is made of brass with gold plating, guaranteeing excellent conductivity. With a pitch of 2.54 mm and through-hole termination, it is easy to install on circuit boards. This connector is RoHS compliant and suitable for a wide range of electronic devices, making it a versatile and dependable choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4030	6.35mm Pitch MLX Power Connector Header, Vertical, 3 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
	Molex 16-02-1115	SL Crimp Terminal, Series 71851, Female, with 0.76Âµm Selective Gold (Au) Plated Contact, 24-22 AWG, Bag
	Molex 22-11-2022	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, 0.51µm Gold (Au) Plating, 3.56mm Tail Length
	Molex 22-11-2092	KK 254 Solid Header, Vertical, with Friction Lock, 9 Circuits, 0.51µm Gold (Au) Plating, 3.56mm Tail Length
	Molex 22-27-2061	KK 254 Header, Vertical, Square Pin, Friction Lock, 6 Circuits, 7.50mm Mating Pin Length, 3.56mm Tail Length, 2.54µm Matte Tin (Sn) Plating

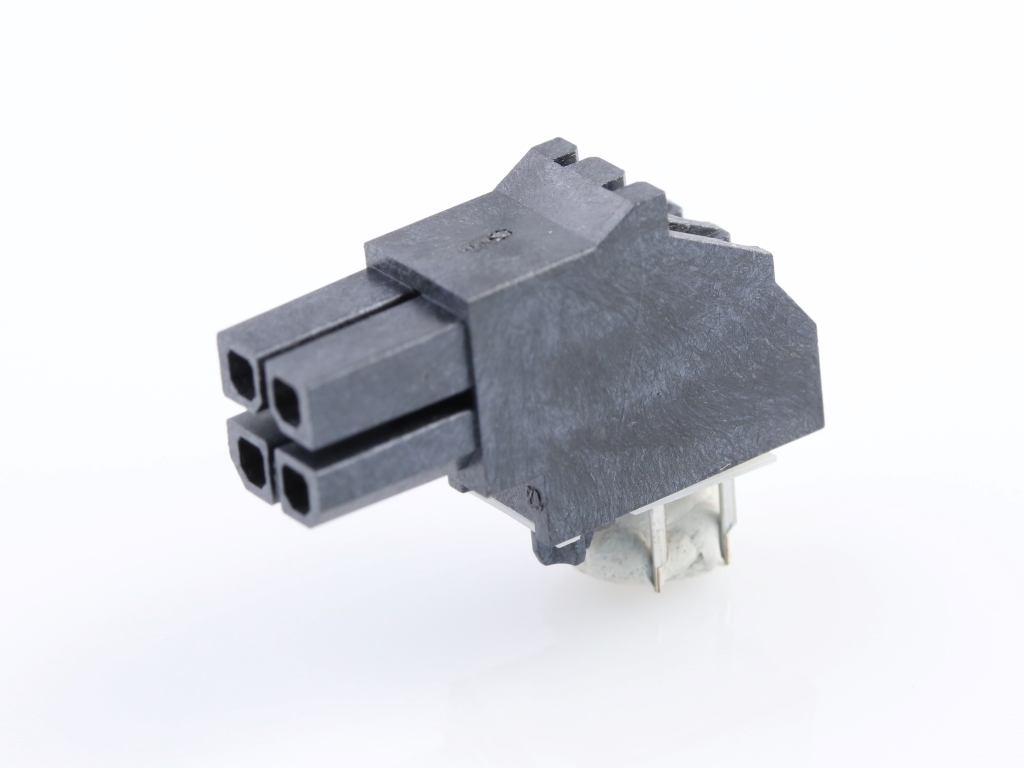

	Molex 44764-0401	Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 1.02µm Tin (Sn) Plating, Mylar Positioning Strip, 4 Circuits
	Molex 50-57-9404	SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black
	Molex 51021-0400	1.25mm Pitch, PicoBlade Receptacle Crimp Housing, Single Row, Friction Lock, 4 Circuits, Natural
	Molex 53261-0571	1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 5 Circuits, Natural, Tape and Reel
	Molex 70543-0001	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 2 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
	Molex 70543-0002	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 3 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
	Molex 70543-0004	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 5 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
	Molex 70543-0005	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 6 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
	Molex 70543-0013	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 14 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating

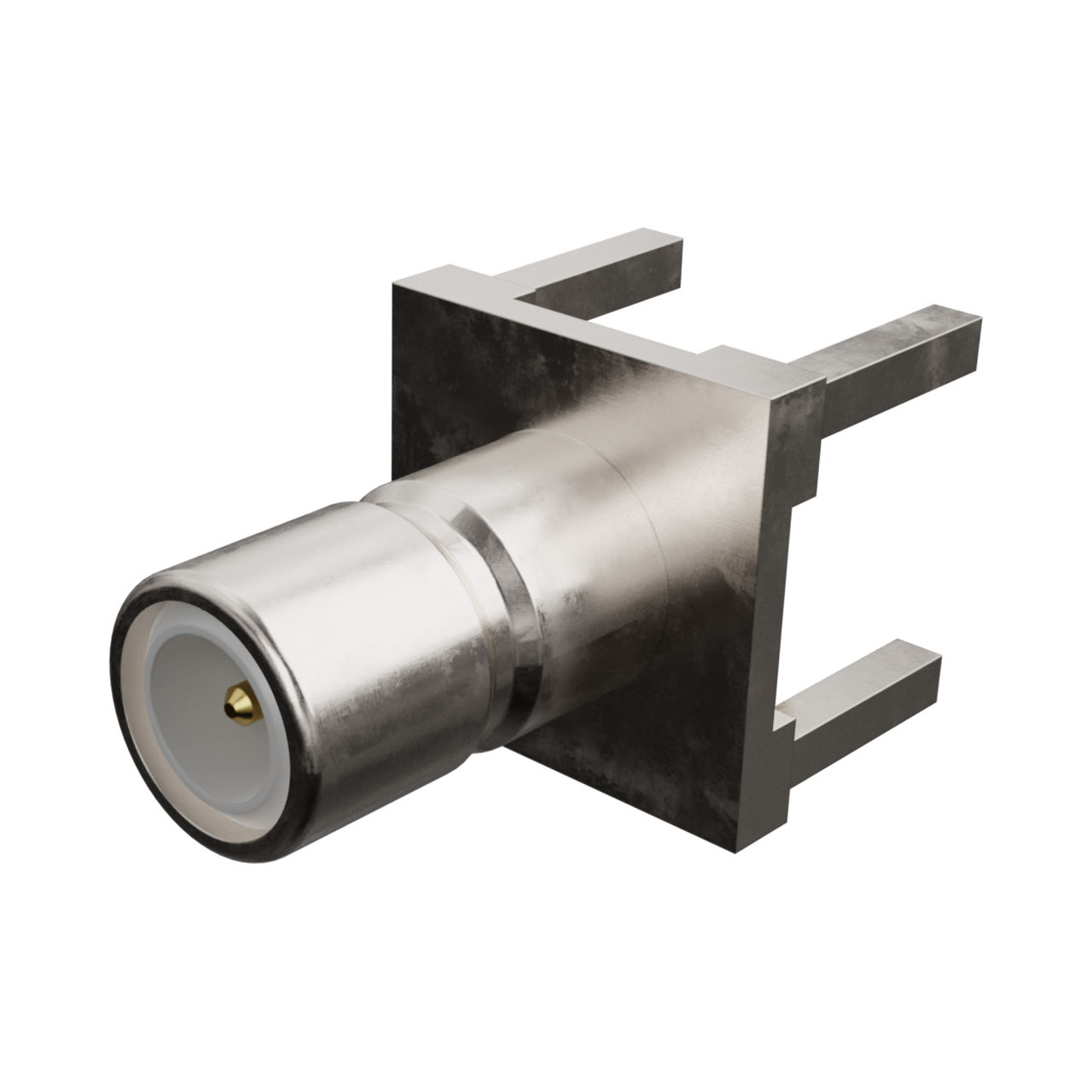

	Molex 73100-0207	SMB Jack, Straight, PCB Receptacle, Through Hole, Brass Body, Gold (Au) Plated, 50 Ohms
