| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 22-27-2061 |
| Color: | Natural (White) |
| Series: | 6410 - KK 254 |
| Amperage: | 4 A |
| Connector Type: | KK 254 |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 2.54 mm |
| Voltage: | 500 V |
| Material: | Nylon |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 3.56 mm |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 5.08 µm |
| Number of Contacts Loaded: | 6 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 5.08 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 2.54 mm |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0022272061 AE-6410-06A(222) |
| SKU: | MOL22-27-2061 |
22-27-2061
| Heilind Number: | MOL22-27-2061 |
| Manufacturer: | Molex |
| Manufacturer Number: | 22-27-2061 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 6 Circuits, Tin (Sn) Plating
More >>Specifications
Detailed Description
Introducing the 22-27-2061 KK 254 Wire-to-Board Header, a high-quality vertical connector designed for seamless board-to-board connections. With six circuits and durable brass contacts featuring tin plating, this header ensures reliable signal transmission with a current rating of 4 A and a voltage tolerance of 500 V. Its through-hole termination method and straight body orientation offer easy installation on standard 1.6 mm PCBs, while the nylon housing guarantees robust performance. Featuring UL and CSA agency certifications, as well as RoHS compliance, this connector meets stringent quality and environmental standards. Whether used in consumer electronics or industrial applications, the 22-27-2061 guarantees optimal performance and longevity.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

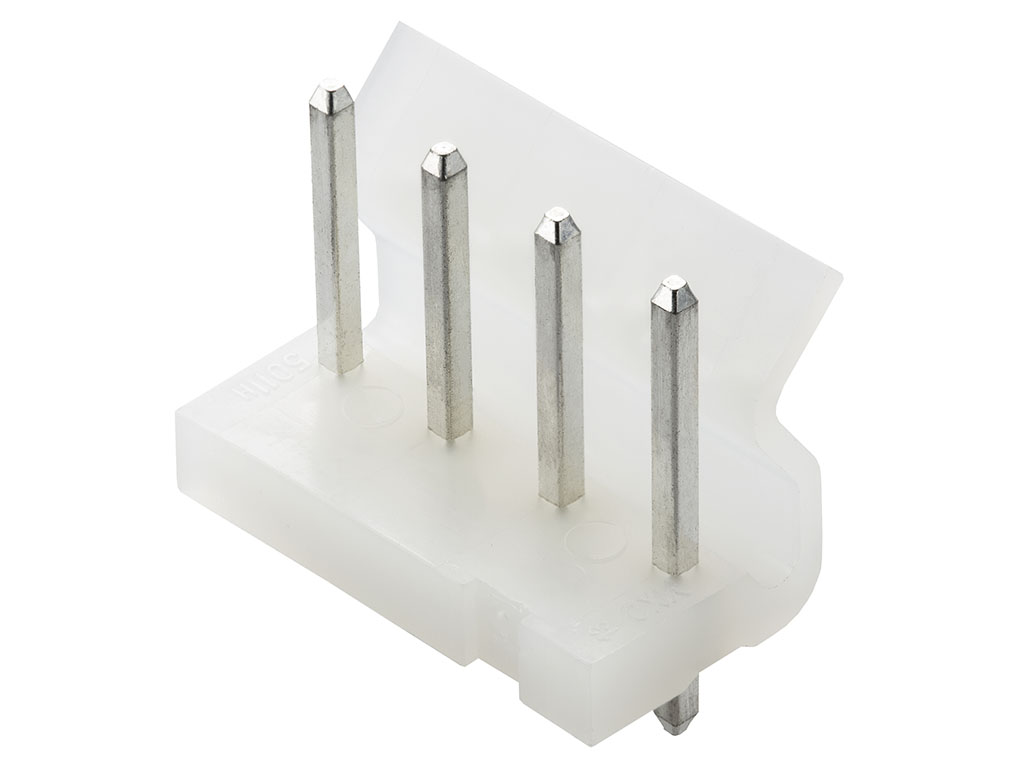

 | Molex 10-32-1041 | 5.08mm Pitch SPOX Wire-to-Board Header, Vertical, with Friction Lock, 4 Circuits |  |
