Attribute | Value |
---|---|
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 70543-0005 |
Color: | Black |
Series: | 70543 |
Amperage: | 3 A |
Connector Type: | SL |
Number of Contacts: | 6 |
Number of Rows: | 1 |
Termination Method: | Through Hole |
Contact Material: | Brass, Phosphor Bronze |
Body Orientation: | Straight |
Pitch: | 2.54 mm |
Voltage: | 250 V |
Material: | High Temperature Thermoplastic |
Orientation: | Vertical |
Keying: | No |
Tail Length: | 3.3 mm |
Operating Temperature Range: | -40 - 105 °C |
Contact Mating Area Plating: | Gold |
Contact Mating Area Plating Thickness: | .381 µm |
Number of Contacts Loaded: | 6 |
Mating Cycles: | 50 |
PCB Locator: | No |
PCB Retention: | Without |
Contact Termination Plating Thickness: | 1.905 µm |
Polarized to Mate: | Yes |
PCB Thickness (Recommended): | 1.6 mm |
Connector System: | Wire to Board |
Contact Termination Plating: | Tin |
Maximum Solder Process Temperature: | 260 °C |
Lead Free Process Capability: | WAVE |
Duration at Max. Process Temperature (seconds): | 003 |
Max. Cycles at Max. Process Temperature: | 001 |
Termination Pitch: | 2.54 mm |
Glow Wire Capable: | No |
Guide to Mating Part: | No |
Lock to Mating Part: | Yes |
Stackable: | No |
Surface Mount Compatible: | No |
Breakaway: | No |
Make First / Break Last: | No |
Shroud Type: | Fully |
Product Name: | SL |
Material Flammability Standard: | 94V-0 |
Part Aliases: | 0705430005 A-70543-0005 |
SKU: | MOL70543-0005 |

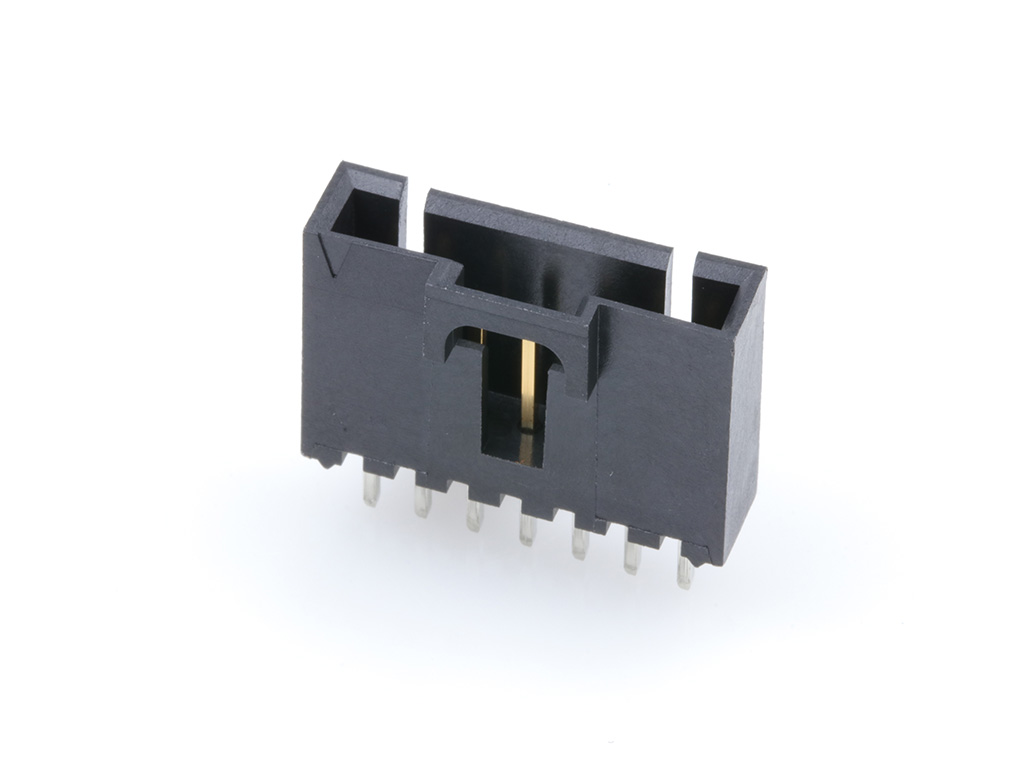

70543-0005
Heilind Number: | MOL70543-0005 |
Manufacturer: | Molex |
Manufacturer Number: | 70543-0005 |
Datasheet: | Product Specification |
ECAD Model: |
Description:
2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 6 Circuits, 0.38
More >>Specifications
Detailed Description
Introducing the Molex SL 70543 Series Connector, featuring a sleek black design and high-performance capabilities. With a low amperage of 3A and 6 contacts in a single row, this through-hole connector ensures reliable power and signal transmission. Constructed with durable brass and phosphor bronze contact materials, and housed in a straight, high-temperature thermoplastic body, it guarantees long-lasting functionality even in harsh environments. Its gold-plated mating area and tin termination offer excellent conductivity and soldering reliability. RoHS compliant and suitable for wave soldering, this connector is perfect for a wide range of applications in wire-to-board and board-to-board connections, making it a must-have component for your electronic projects.
