| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 204318-0006 |
| Series: | 204318 - Coeur CST |
| Amperage: | 140 A |
| Number of Contacts: | 1 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Voltage: | 600 V |
| Orientation: | Vertical |
| Diameter: | 6 mm |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Number of Contacts Loaded: | 1 |
| Mating Cycles: | 200 |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Connector System: | Board to Board |
| Contact Termination Plating: | Silver |
| Glow Wire Capable: | No |
| Product Name: | Coeur CST |
| Part Aliases: | 2043180006 |
| SKU: | MOL204318-0006 |
204318-0006
Specifications
Detailed Description
Introducing the Sentrality 6.00mm Top-entry, Surface Mount Socket Assembly, part of the Coeur CST series (204318). This high-power connector features a single contact with a current rating of 140 A and a voltage of 600 V, making it ideal for demanding applications. Constructed with a copper alloy contact material and gold plating in the mating area, it ensures reliable and low-resistance connections. Designed for vertical orientation on the PCB, this socket assembly boasts a 6 mm diameter and is suitable for power circuit applications. With silver contact termination plating and RoHS compliance, it guarantees both performance and environmental responsibility. Trust in the Sentrality 6.00mm Socket Assembly for efficient and durable board-to-board connectivity in your projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 170382-0001 | zSFP+ Assembly, Right-Angle, Surface Mount, 20 Circuits, 0.38µm Gold (Au), Tin Tails |  |
 | Molex 170432-0002 | zQuad Small Form Factor Pluggable Plus (zQSFP+) Assembly, Surface Mount, 38 Circuits, Gold (Au) Plated 0.762µm, Supports QSFP28 / EDR / QSFP56 | |

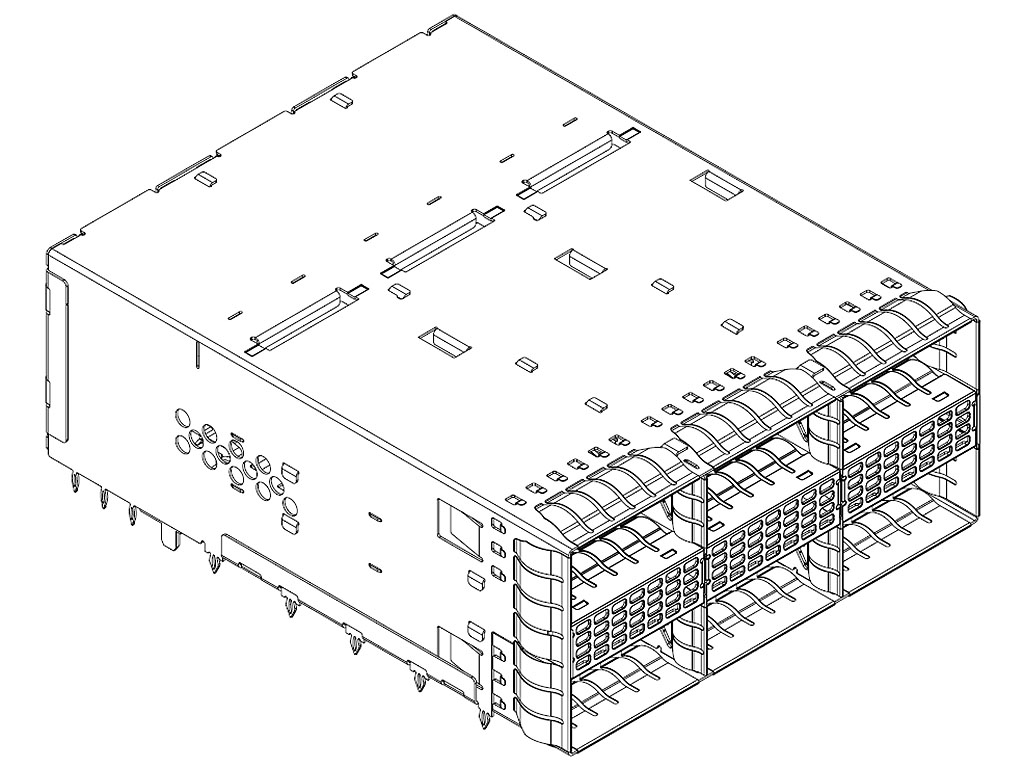

 | Molex 171722-3002 | zQuad Small Form Factor Pluggable Plus (zQSFP+) Stacked Integrated 2-by-3 Connector and Cage with Metal EMI Gasket, 228 Circuit, Gold (Au) Over Nickel Plated, Up/Down Light Pipe Indicators | |
 | Molex 171971-0105 | 2.54mm Pitch SL Header, Single Row, Vertical, LCP, Shrouded, Through Hole, 3.30mm Tail Length, 0.38µm Selective Gold (Au) Plating, 5 Circuits | |
 | Molex 172185-0002 | EXTreme EnergetiC Modular Right-Angle Plug Assembly, 29 Circuits (25 Signal/4 Power) with Solder Tail Mounting, with Guide | |
 | Molex 204066-1124 | Impel Plus 90 Ohm, 4-Pair Right-Angle Daughtercard, 1.90mm Pitch, Unguided, 14 Columns, 112 Circuits, Plated Through Hole Dimension 0.31mm | |
 | Molex 212194-0001 | Sentrality 8.00mm Top-entry, Surface Mount Socket Assembly, Tape and Reel | |

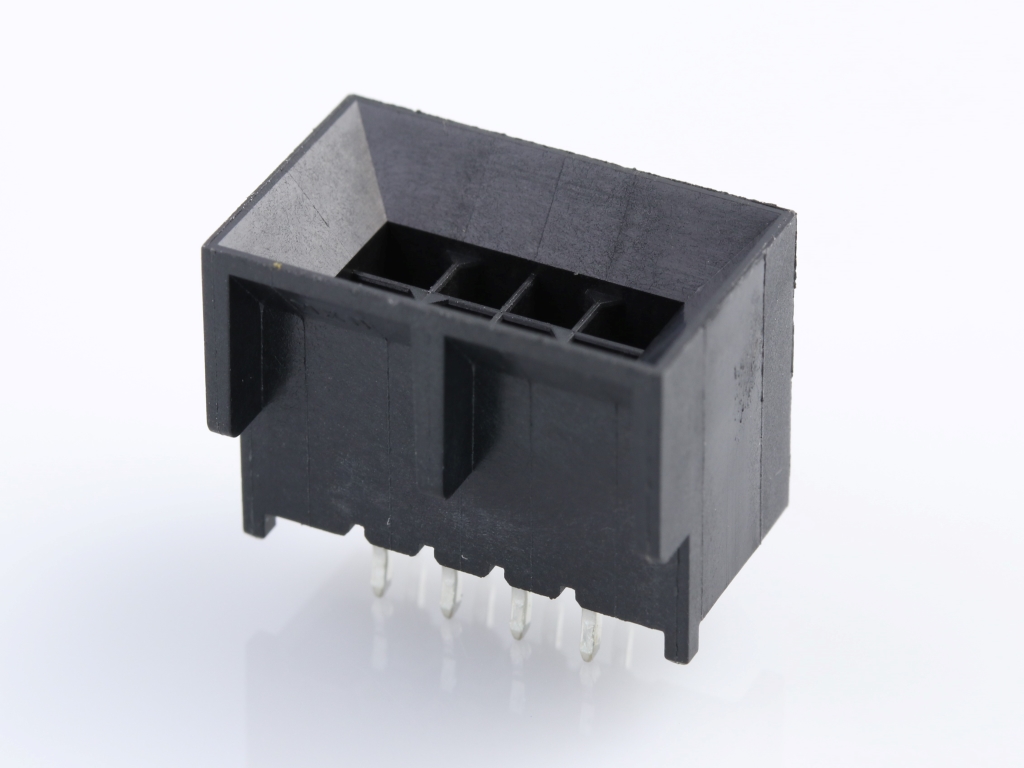

 | Molex 44432-0802 | Micro-Fit BMI Header, Dual Row, Vertical, with PCB Polarizing Peg, 8 Circuits, 0.38µm Gold (Au) Plating, Kinked Tails | |
 | Molex 76170-1036 | Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Unguided, 6 Columns, 54 Circuits, Plated Through Hole Dimension 0.39mm, Lead-Free | |

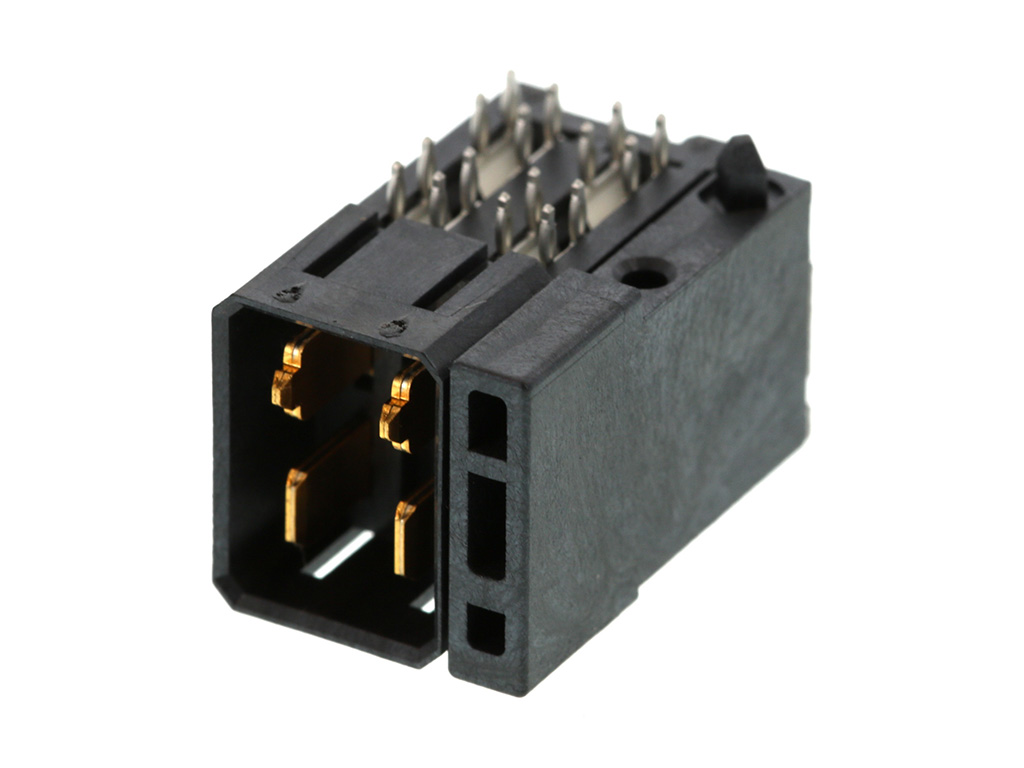

 | Molex 78347-1004 | Impact 3 Pair, Right-Angle Power Header, Left Hold-Down, Press-Fit, Module 1: P1 & P2 Blade Length 5.70mm & 6.90mm, LCP, Glass Filled UL94-V0, Black, Tray Packaging, Lead-Free | |

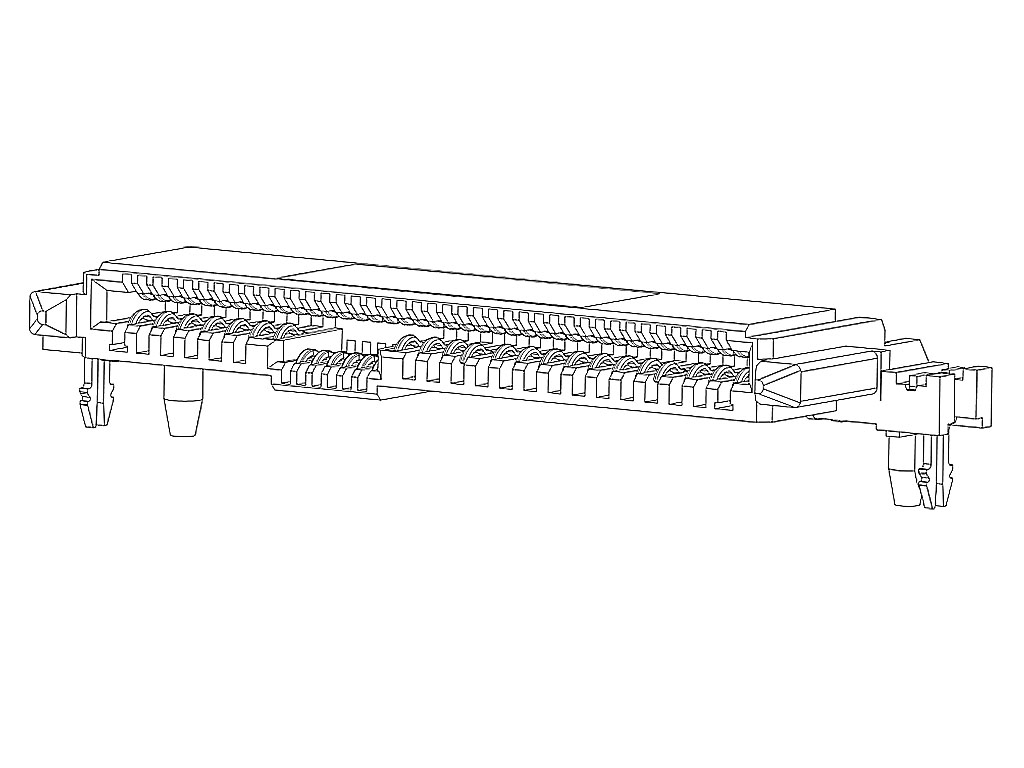

 | Molex 78798-0001 | 1.27mm Signal Pitch, 0.80mm Signal Pitch, 1.27mm Power Pitch SAS-3/PCIe-3 Receptacle, Right-Angle, Surface Mount, with Forklock, 2.85mm Height, 3.50mm Peg Length, 1.60mm PCB Thickness, 68 Circuits, with Cap, Tape and Reel, Lead-Free | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2021 | 509786 - Manufacturing Process Change. Changing caps from copper to stainless steel, Laser etching date codes. no product soec/ performance changes. | Download | |||
