| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 76170-1036 |
| Gender: | Female |
| Housing Material: | High Temperature Plastic |
| Number of Contacts: | 54 |
| Number of Rows: | 9 |
| Contact Plating: | Gold |
| Pitch: | 1.9 mm |
| Tail Length: | 1.2 mm |
| Mating Cycles: | 200 |
| Current Rating: | 0.75 A |
| Voltage Rating: | 30 V |
| Operating Temperature: | -55 to 85 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | MOL76170-1036 |
76170-1036
Specifications
Detailed Description
Introducing the 76170-1036, an Impact 100 Ohm 3 Pair Right Angle Daughtercard Receptacle designed for high-performance connectivity in electronic systems. With 6 columns and 54 circuits, this plated through hole receptacle offers secure and reliable termination for optimal signal transmission. Featuring a lead-free construction and gold contact plating, it ensures long-lasting durability and compatibility with various applications. Operating efficiently in temperatures ranging from -55°C to 85°C, this connector is suitable for a wide range of environments. With its compact body orientation and 1.9mm pitch, it is ideal for space-constrained installations. Rest assured, this product is RoHS compliant, meeting strict environmental regulations. Upgrade your backplane connectivity with the 76170-1036.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

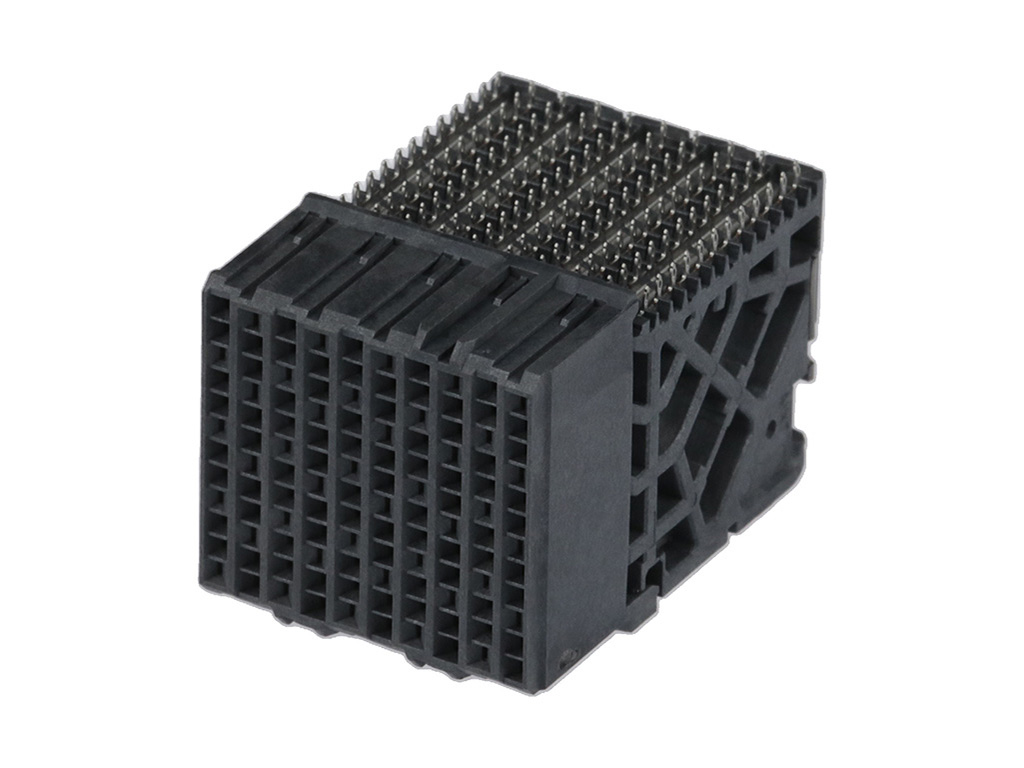

 | Molex 170340-1020 | Impact 85 Ohm Plus 4 Pair, Right-Angle Daughtercard, Unguided, 10 Columns, 120 Circuits, Plated Through Hole Dimension 0.39mm, Lead Free |  |
 | Molex 170382-0001 | zSFP+ Assembly, Right-Angle, Surface Mount, 20 Circuits, 0.38µm Gold (Au), Tin Tails | |
 | Molex 171971-0105 | 2.54mm Pitch SL Header, Single Row, Vertical, LCP, Shrouded, Through Hole, 3.30mm Tail Length, 0.38µm Selective Gold (Au) Plating, Tube, 5 Circuits | |
 | Molex 204318-0006 | Sentrality 6.00mm Top-entry, Surface Mount Socket Assembly | |
 | Molex 44432-0802 | Micro-Fit BMI Header, Dual Row, Vertical, with PCB Polarizing Peg, 8 Circuits, 0.38µm Gold (Au) Plating, Kinked Tails | |

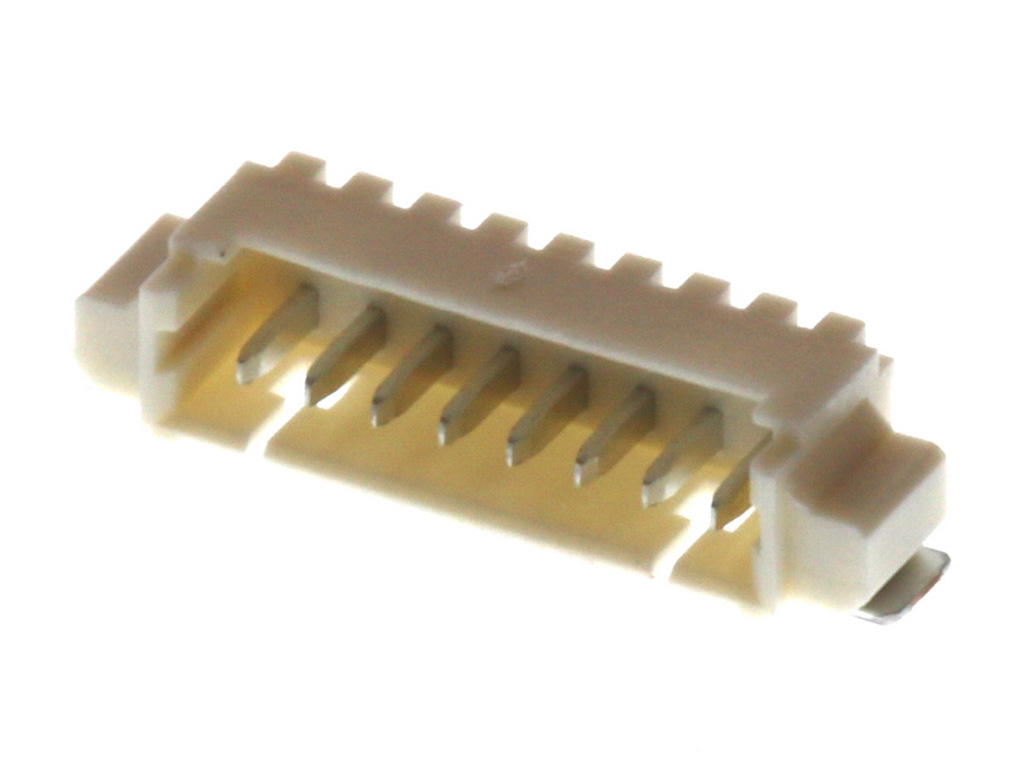

 | Molex 53261-0971 | 1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Surface Mount, Tin (Sn) Plating, Friction Lock, 9 Circuits, Natural | |
 | Molex 70543-0004 | 2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 5 Circuits, 0.38µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating | |

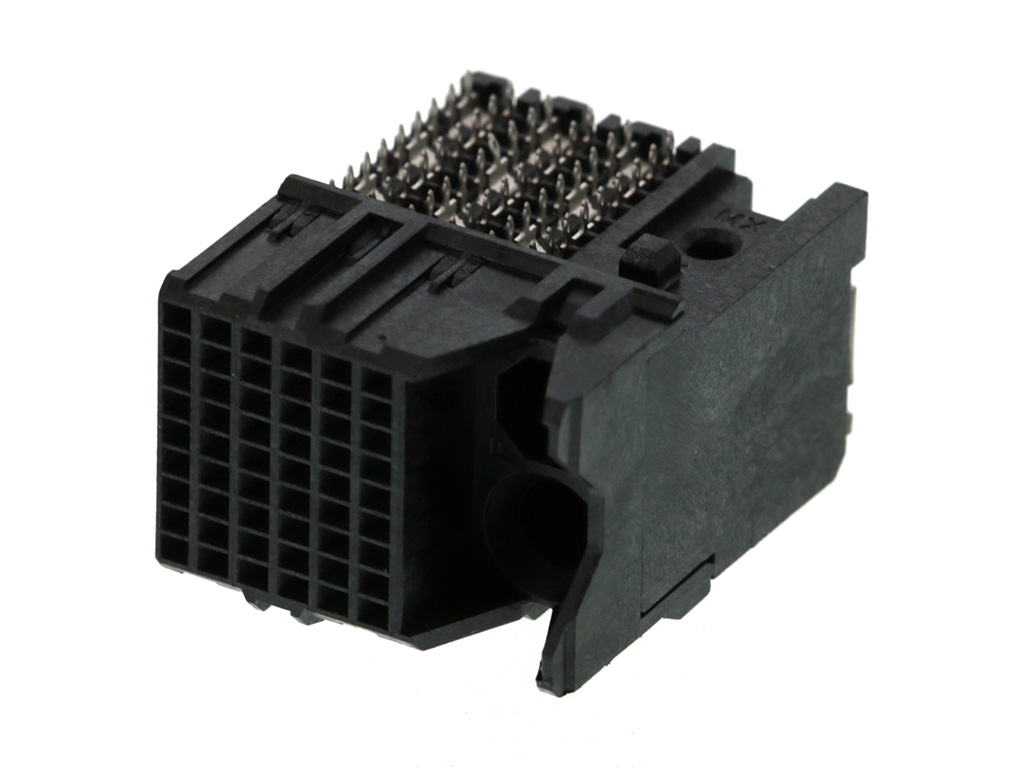

 | Molex 76170-3036 | Impact 100 Ohm 3 Pair Right-Angle Daughtercard Receptacle, Left Guided, 6 Columns, 54 Circuits, Plated Through Hole Dimension 0.39mm, Lead-Free | |
