90120-0763

Heilind Number:	MOL90120-0763
Manufacturer:	Molex
Manufacturer Number:	90120-0763
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch C-Grid III Header, Single Row, Vertical, 3 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 90120-0763
Color:	Black
Series:	90120 - C-Grid III
Amperage:	3 A
Connector Type:	C-Grid III
Number of Contacts:	3
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	350 V AC/DC
Material:	Polyester
Orientation:	Vertical
Keying:	No
Tail Length:	2.9 mm
Operating Temperature Range:	-55 - 125 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	3
Mating Cycles:	200
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Polarized to Mate:	No
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Nickel
Maximum Solder Process Temperature:	230 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	Yes
Make First / Break Last:	No
Shroud Type:	No
Material Flammability Standard:	94V-0
Part Aliases:	0901200763
SKU:	MOL90120-0763

Detailed Description

Introducing the 90120-0763, a high-quality black C-Grid III connector designed for reliable wire-to-board connections. With three brass contacts and a straight body orientation, this connector offers exceptional performance in various electronic applications. Featuring a pitch of 2.54mm and a voltage rating of 350V AC/DC, it ensures efficient power transmission. Its through-hole termination method and gold contact mating area plating guarantee secure and durable connections, even in harsh environments. With UL and CSA agency certifications, as well as RoHS compliance, you can trust in the quality and safety of this connector. Perfect for PCBs with a 1.6mm thickness, it comes packaged in a convenient tray for easy handling. Upgrade your connectivity solutions with the 90120-0763.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-89-7122	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 12 Circuits, 0.38
	Molex 10-89-7162	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 16 Circuits, 0.38
	Molex 10-89-7202	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 20 Circuits, 0.38
	Molex 22-05-3061	KK 254 Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin (Sn) Plating
	Molex 22-23-2021	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 22-23-2041	KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
	Molex 22-23-2051	KK 254 Solid Header, Vertical, with Friction Lock, 5 Circuits, Tin (Sn) Plating

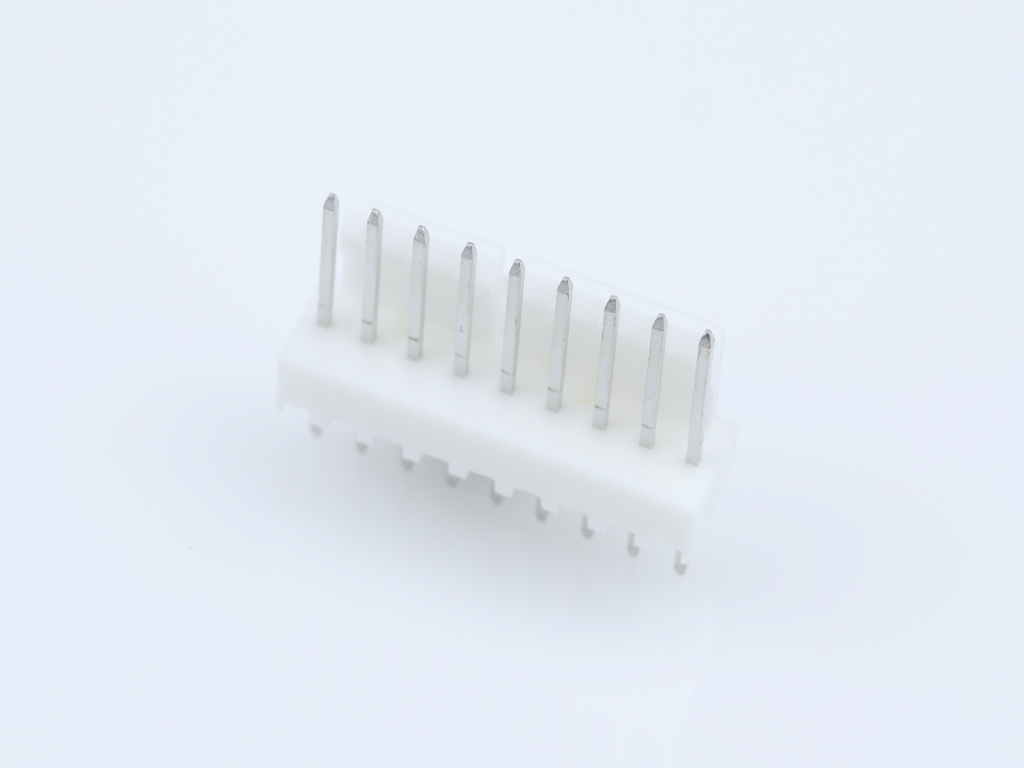

	Molex 22-23-2091	KK 254 Solid Header, Vertical, with Friction Lock, 9 Circuits, Tin (Sn) Plating
