| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 53047-0810 |
| Series: | 53047 |
| Amperage: | 1 A |
| Connector Type: | PicoBlade |
| Number of Contacts: | 8 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Body Orientation: | Straight |
| Pitch: | 1.25 mm |
| Voltage: | 125 V |
| Orientation: | Vertical |
| Keying: | No |
| Tail Length: | 2.3 mm |
| Operating Temperature Range: | -40 - 85 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 8 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| PCB Thickness (Recommended): | .8 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Current Derating Order No: | 987651-3691 |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Mated Height: | 5.2 mm |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Product Name: | PicoBlade |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0530470810 |
| SKU: | MOL53047-0810 |
53047-0810
Specifications
Detailed Description
Introducing the PicoBlade Connector System, a versatile solution for wire-to-board and wire-to-wire connections in electronic applications. With a low profile and straight body orientation, this connector is ideal for space-constrained designs. Featuring 8 contacts and a 1.25mm pitch, it offers reliable signal transmission in high-density setups. The through-hole termination method ensures secure and durable assembly, with a tail length of 2.3mm for easy installation. Operating at temperatures ranging from -40 to 85°C and rated for 125V and 1A, this connector meets the demands of a wide range of environments. Fully shrouded and with PCB retention, it guarantees proper alignment and stability during use. RoHS compliant and with a tin contact termination plating, the PicoBlade is not only environmentally friendly but also ensures excellent conductivity. Whether for industrial machinery, automotive systems, or consumer electronics, this connector is the perfect choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

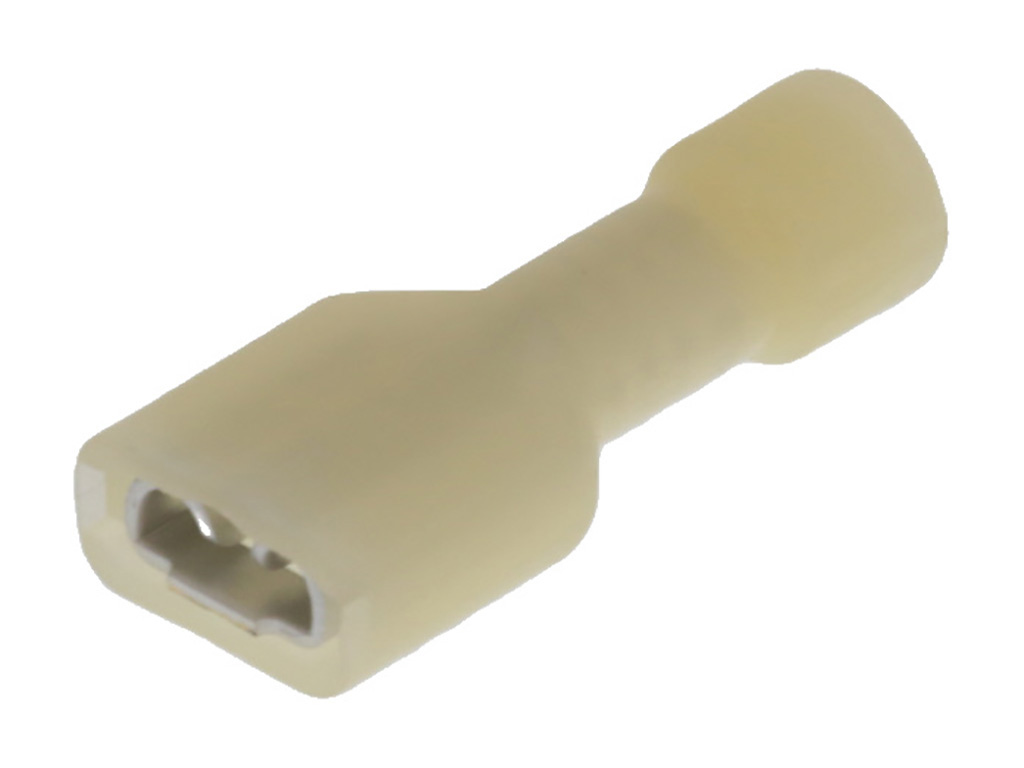

 | Molex 19003-0064 | InsulKrimp Quick Disconnect, Female, for 24-26 (0.20-0.12mm?), Box, Tab 4.75 x 0.51mm |  |
