70545-0036

Heilind Number:	MOL70545-0036
Manufacturer:	Molex
Manufacturer Number:	70545-0036
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 2 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70545-0036
Color:	Black
Series:	70545
Amperage:	3 A
Connector Type:	SL
Number of Contacts:	2
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass, Phosphor Bronze
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 V
Material:	High Temperature Thermoplastic
Orientation:	Vertical
Tail Length:	3.3 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	2
Mating Cycles:	50
PCB Locator:	Yes
PCB Retention:	Yes
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	003
Max. Cycles at Max. Process Temperature:	003
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Shroud Type:	Fully
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0705450036 A-70545-0036
SKU:	MOL70545-0036

Detailed Description

Introducing the 70545-0036 SL PCB Connector, a high-performance component designed for seamless wire-to-board connectivity. This black connector, part of the 70545 series, features a straight body orientation with 2 rows and 1 contact for efficient through-hole termination. Crafted from high temperature thermoplastic with brass and phosphor bronze contact materials, it ensures durability in operating temperatures ranging from -40 to 105 °C. With a 3A amperage and 250V voltage rating, it guarantees reliable power transmission. Gold plating on the contact mating area offers enhanced conductivity, while tin termination plating with wave solder capability ensures secure attachment to PCBs. RoHS compliant and in stock for immediate shipping, the 70545-0036 is the ideal choice for your PCB connection needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-58-0125	KK 396 Crimp Terminal 2578, 22-26 AWG, Reel, Phosphor Bronze, 0.51
	Molex 09-50-3031	KK 3.96mm Crimp Terminal Housing, Friction Ramp, 3 Circuits, Natural
	Molex 22-03-5035	2.50mm Pitch SPOX Wire-to-Board Header, Vertical, Shrouded, 3 Circuits, Tin (Sn) Plating
	Molex 22-03-5065	2.50mm Pitch SPOX Wire-to-Board Header, Vertical, Shrouded, 6 Circuits, Tin (Sn) Plating
	Molex 22-11-2022	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Gold (Au) Plating
	Molex 22-11-2072	KK 254 Solid Header, Vertical, with Friction Lock, 7 Circuits, Gold (Au) Plating
	Molex 22-11-2142	KK 254 Solid Header, Vertical, with Friction Lock, 14 Circuits, Gold (Au) Plating
	Molex 22-28-4023	KK 254 Breakaway Header, Vertical, 2 Circuits, 0.38
	Molex 39-29-0083	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-29-9027	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 43045-0414	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black

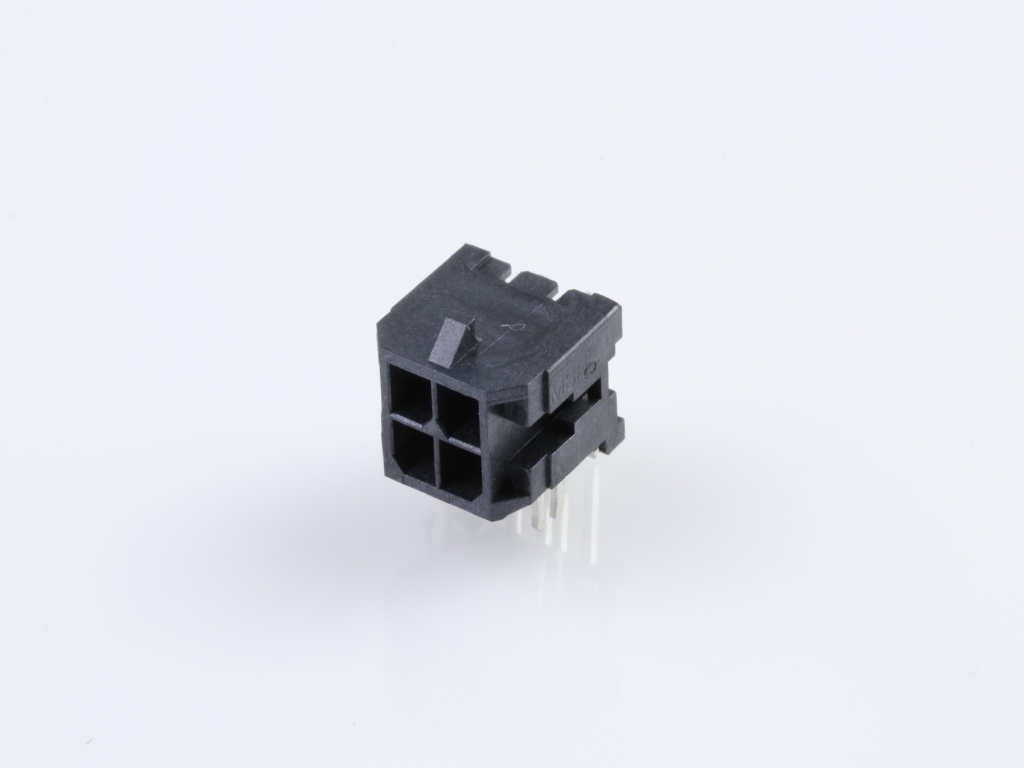

	Molex 43045-0423	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
	Molex 43045-1414	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 14 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 50-37-5033	2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 3 Circuits, Natural
	Molex 50-37-5063	2.50mm Pitch Mini-SPOX Wire-to-Board Crimp Housing, Friction Lock, 6 Circuits, Natural

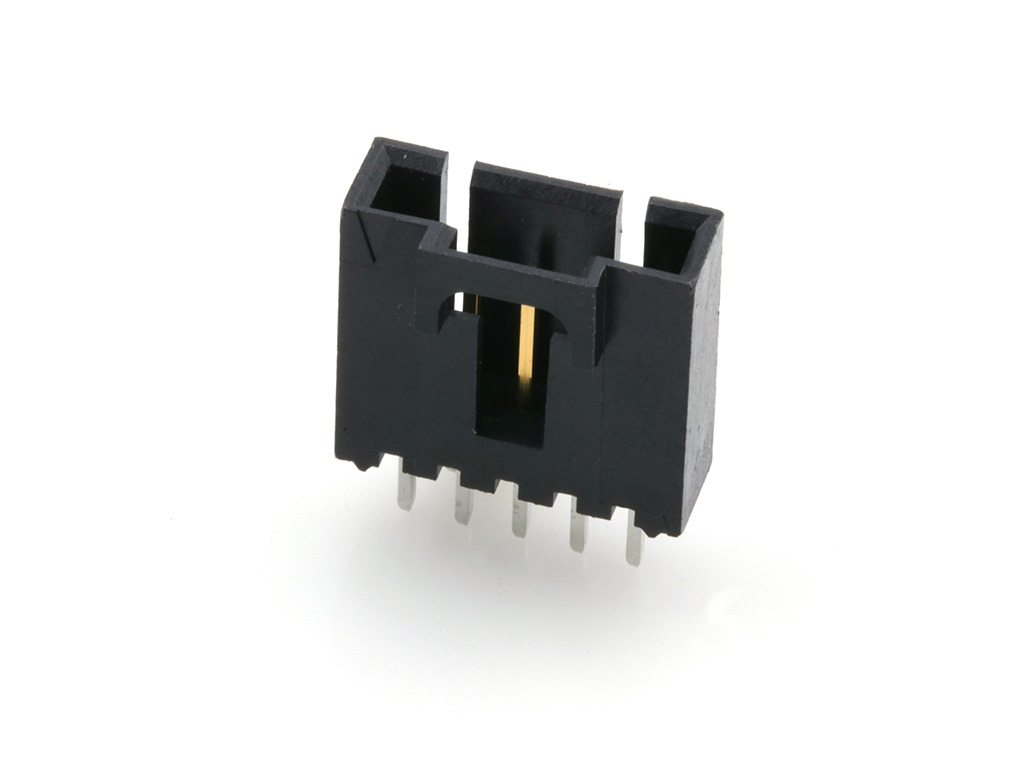

	Molex 70543-0109	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 5 Circuits, 0.76
