| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 79109-8410 |
| Color: | Black |
| Series: | 79109 - Milli-Grid |
| Amperage: | 1 A |
| Connector Type: | Milli-Grid |
| Number of Contacts: | 22 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Phosphor Bronze |
| Body Orientation: | Straight |
| Pitch: | 2 mm |
| Voltage: | 125 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Packaging: | Embossed Tape on Reel |
| Operating Temperature Range: | -55 - 105 °C |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 22 |
| Mating Cycles: | 50 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 1.905 µm |
| Supplier Product Group: | PCB Socket Receptacles |
| Connector System: | Board to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 010 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0791098410 |
| SKU: | MOL79109-8410 |
79109-8410
| Heilind Number: | MOL79109-8410 |
| Manufacturer: | Molex |
| Manufacturer Number: | 79109-8410 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Milli-Grid Receptacle, Surface Mount, Vertical, Top/Bottom Entry, without Press-fit Plastic Pegs, with Cap, Embossed Tape on Reel, 0.38?m Gold (Au) Selective, 22 Circuits, Lead-Free
More >>Specifications
Detailed Description
Introducing the 79109-8410, a high-performance Milli-Grid Receptacle designed for surface mount applications. This vertical connector features top/bottom entry, offering versatility in PCB layout. Without press-fit plastic pegs, it ensures easy installation. The included cap provides protection during handling and shipping. With embossed tape packaging on reel, it facilitates automated assembly. Boasting 0.38µm gold selective plating, it guarantees reliable signal transmission. This lead-free connector accommodates 22 circuits, ideal for various applications. Constructed with high-temperature thermoplastic, it ensures durability in harsh environments. With UL and CSA certifications, as well as RoHS compliance, it meets stringent quality standards. Trust the 79109-8410 for seamless board-to-board connectivity in your designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

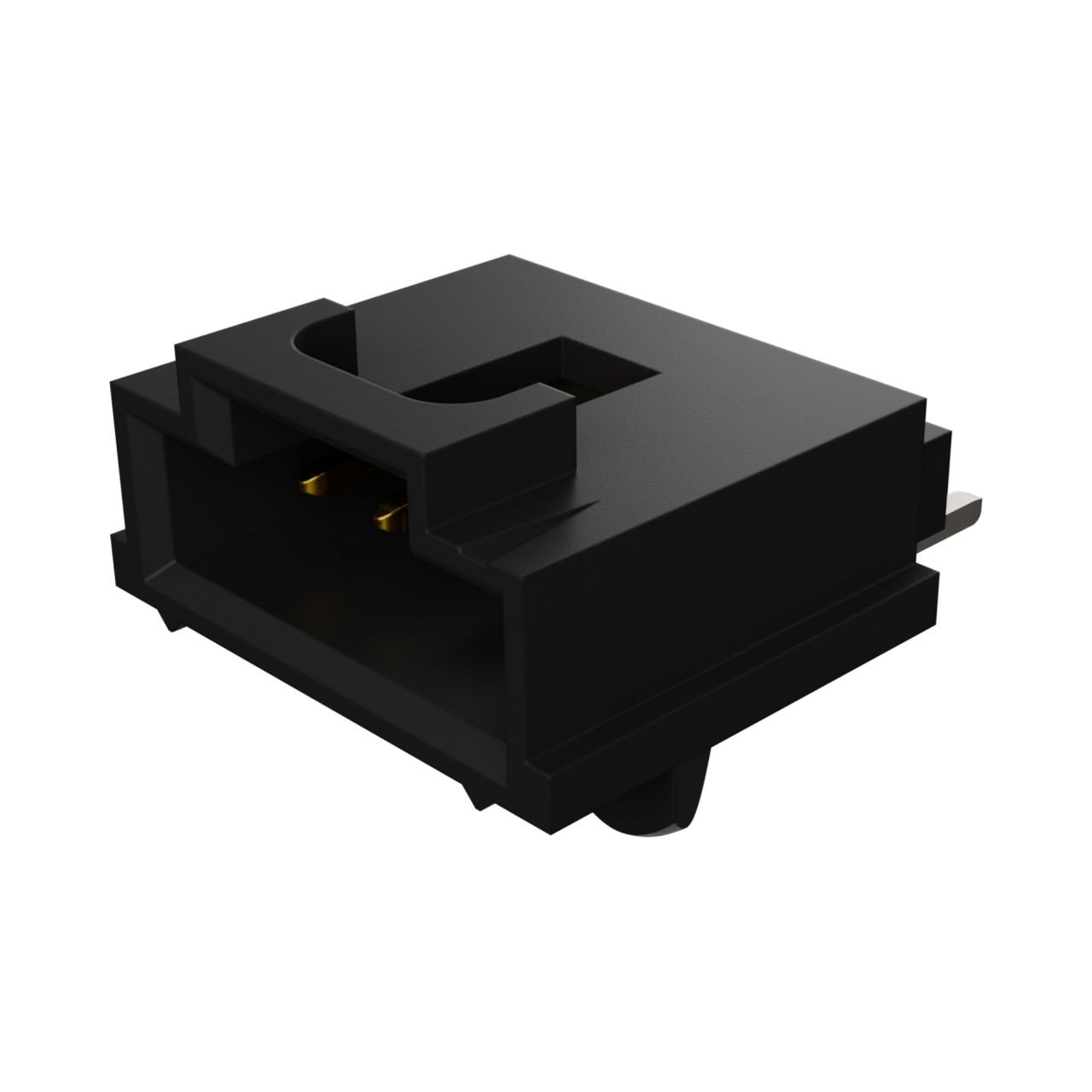

 | Molex 15-91-7040 | 2.54mm Pitch SL Wire-to-Board Header, Low Profile, Surface Mount, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 4 Circuits, 0.38 |  |
