70543-0038

Heilind Number:	MOL70543-0038
Manufacturer:	Molex
Manufacturer Number:	70543-0038
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 4 Circuits, Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70543-0038
Color:	Black
Series:	70543
Amperage:	3 A
Connector Type:	SL
Number of Contacts:	4
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass, Phosphor Bronze
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 V
Material:	High Temperature Thermoplastic
Orientation:	Vertical
Keying:	No
Tail Length:	3.3 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	3.81 µm
Number of Contacts Loaded:	4
Mating Cycles:	25
PCB Locator:	No
PCB Retention:	Without
Contact Termination Plating Thickness:	3.81 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	003
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0705430038
SKU:	MOL70543-0038

Detailed Description

The 70543-0038 is a high-performance PCB pin header connector featuring a sleek black design. With a low amperage of 3A and 4 gold-plated contacts, it ensures reliable power and signal transmission in your electronic devices. Its straight body orientation and through-hole termination method make for easy and secure installation. Constructed with high-temperature thermoplastic and rated for voltages up to 250V, this connector is durable and safe for a wide range of applications. RoHS compliant and lead-free solder capable, it meets stringent environmental standards. Perfect for wire-to-board connections, the SL series connector guarantees excellent performance and longevity in your projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-89-7102	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 10 Circuits, 0.38

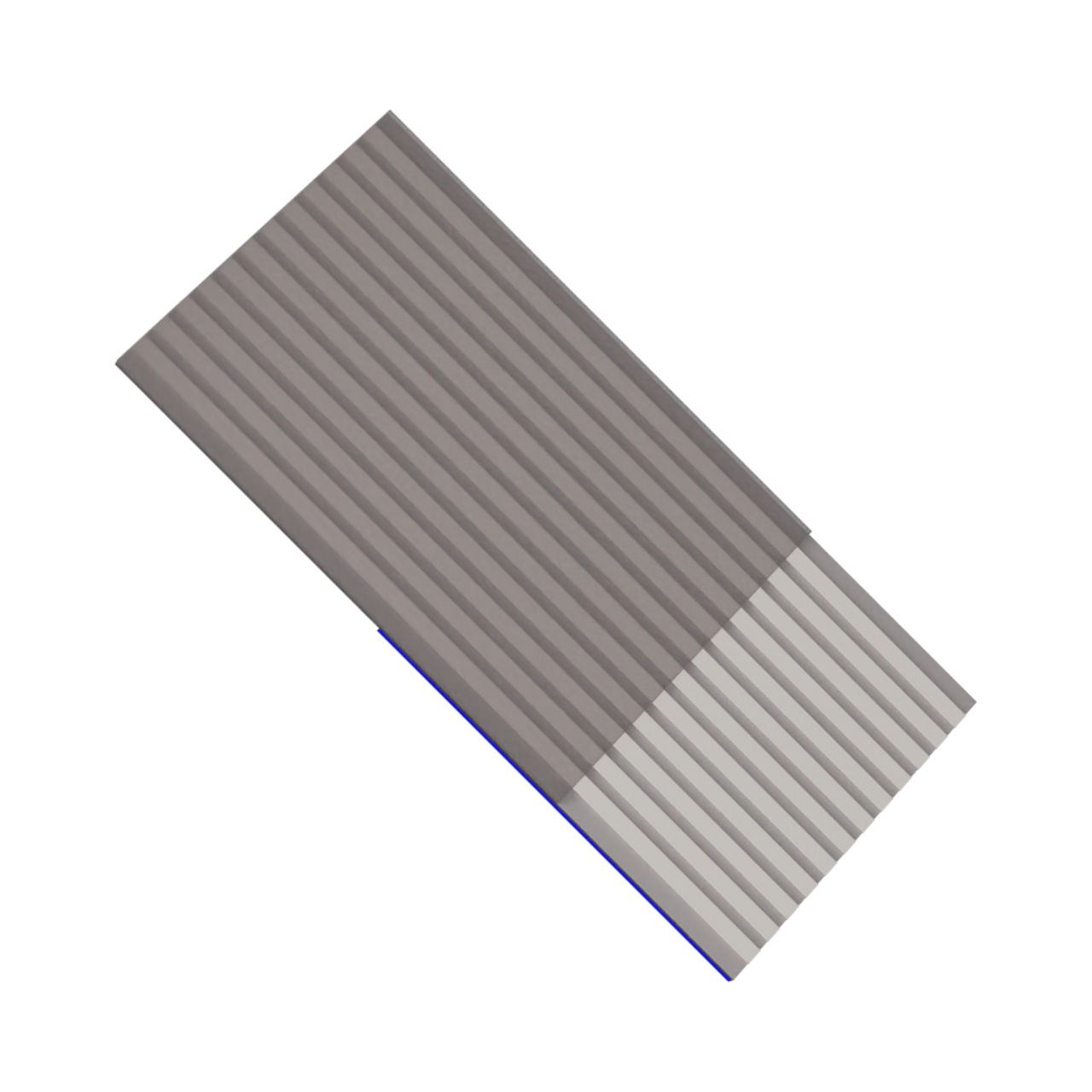

	Molex 15266-0117	0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 12 Circuits, 0.03m Cable Length, 0.27mm Cable Thickness, Tin (Sn) Plating
