15266-0117

Heilind Number:	MOL15266-0117
Manufacturer:	Molex
Manufacturer Number:	15266-0117
Datasheet:	Drawing
ECAD Model:

Description:

0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 12 Circuits, 0.03m Cable Length, 0.27mm Cable Thickness, Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	Cable Ribbon, FFC, FPC Cable & Jumpers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 15266-0117
Series:	15266
Amperage:	.5 A
Maximum Operating Temperature:	105 °C
Minimum Operating Temperature:	-40 °C
Overall Length:	0.03m
Pitch:	5 mm
Part Aliases:	0152660117
SKU:	MOL15266-0117

Detailed Description

Introducing the Premo-Flex FFC Jumper, a highly versatile and reliable connectivity solution designed for a wide range of applications. With a low amperage rating of .5 A and operating temperatures ranging from -40 °C to 105 °C, this jumper ensures efficient performance even in demanding environments. Measuring 0.03m in length with a pitch of .5 mm, it offers flexibility for various installation requirements. RoHS compliant and featuring the series number 15266, this jumper guarantees quality and consistency. Whether for industrial or consumer electronics, the Premo-Flex FFC Jumper is the ideal choice for seamless and durable cable connections.

Frequently Bought Together

Product	Part #	Description	Stock

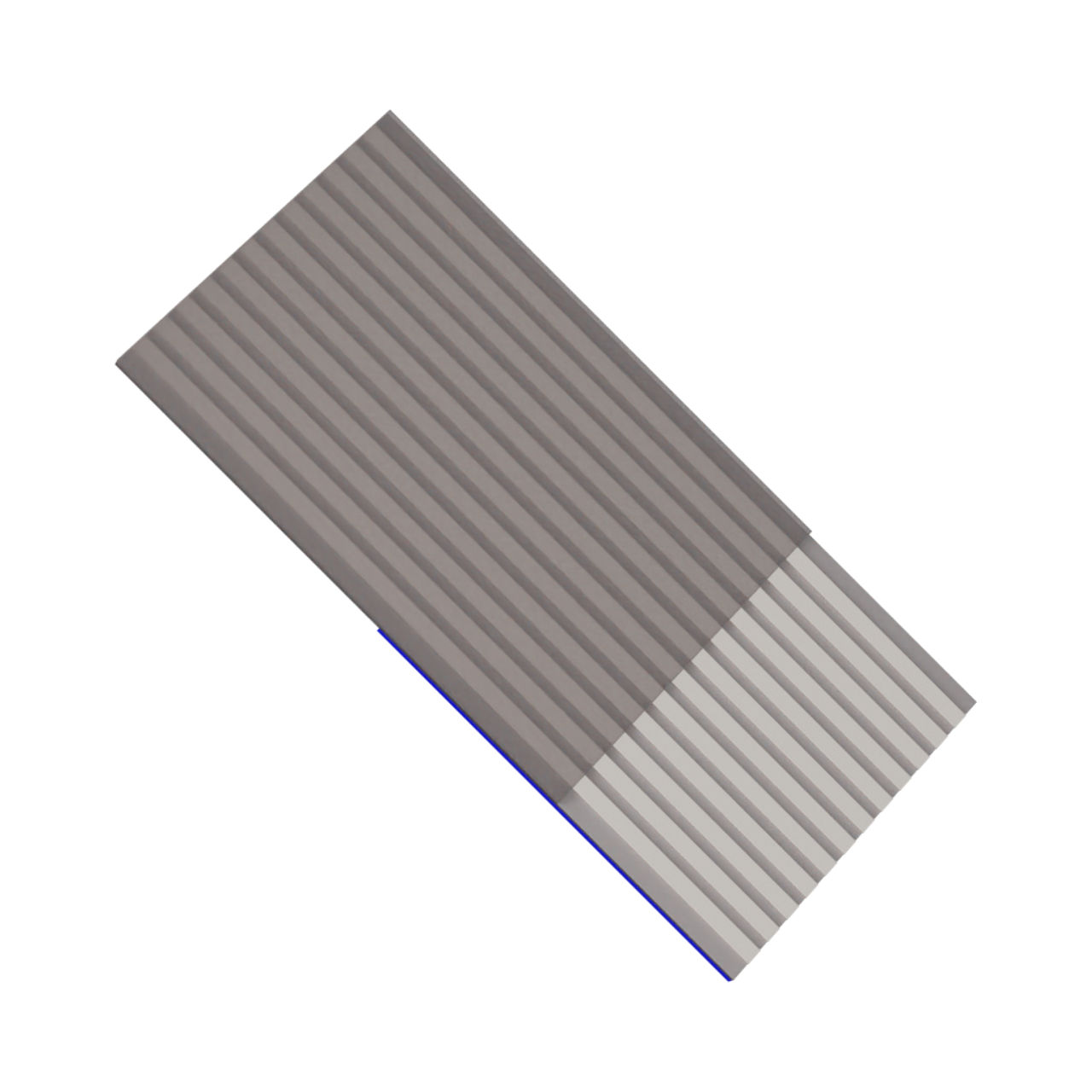

	Molex 15266-0121	0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 12 Circuits, 0.076m Cable Length, 0.27mm Cable Thickness, Tin (Sn) Plating
