70543-0037

ICC Number:	MOL70543-0037
Manufacturer:	Molex
Manufacturer Number:	70543-0037
Datasheet:	Datasheet
ECAD Model:

Description:

2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 3 Circuits, Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70543-0037
Gender:	Male
Number of Contacts:	3
Number of Rows:	1
Contact Material:	Brass, Phosphor Bronze
Contact Plating:	Tin
Pitch:	2.54 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	3 A
Voltage Rating:	250 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL70543-0037

Detailed Description

Introducing the 70543-0037, a high-performance PCB pin header connector designed for reliable wire-to-board and board-to-board connections. With a sleek black finish and a straight body orientation, this connector features three contacts loaded in a single row, allowing for efficient power and signal transmission. Made from durable high temperature thermoplastic and boasting a contact rating of 3A at 250V, it ensures long-lasting performance even in demanding environments. Tin-plated brass and phosphor bronze contacts offer excellent conductivity, while its through-hole termination method and 2.54mm pitch guarantee easy installation. RoHS compliant and lead-free wave solder capable, this connector is not only environmentally friendly but also suitable for automated assembly processes. Perfect for a wide range of applications, from consumer electronics to industrial machinery, the 70543-0037 is a versatile and dependable connectivity solution.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-89-7102	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating, 2.72mm PC Tail
	Molex 39-30-0020	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-2032	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 42816-0412	Mini-Fit Sr. Receptacle Housing, 10.00mm Pitch, Single Row, 4 Circuit, Black
	Molex 42820-3213	Mini-Fit Sr. Right-Angle Header, 10.00mm Pitch, Single Row, 3 Circuits, 3.50mm Tail Length, for 1.57mm PCB, 0.76µm Gold (Au) Plating, with Clip
	Molex 43045-0424	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0602	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, 0.76µm Gold Plating, Glow-Wire Capable, Black
	Molex 43045-1400	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 14 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43650-0227	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 48025-0002	Modular Jack, Right-Angle, 10/100, with Integrated Magnetic and LED, 8/8, Tail Length 2.80mm for IR Reflow, Lead-Free
	Molex 70543-0036	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 2 Circuits, Tin (Sn) Plating
	Molex 70543-0038	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 4 Circuits, Tin (Sn) Plating

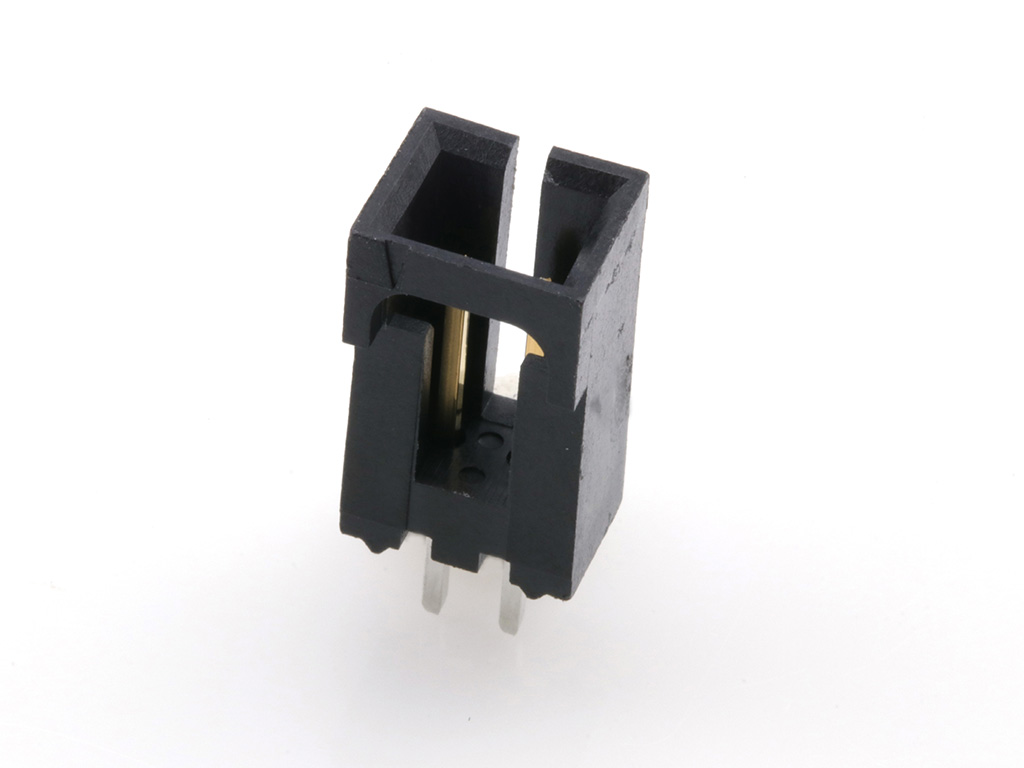

	Molex 70543-0106	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3.30mm Tail Length, 2 Circuits, 0.76µm Gold (Au) Selective Plating, Matte Tin (Sn) Tail Plating
	Molex 70551-0037	2.54mm Pitch SL Header, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Beveled Plastic Peg, 3 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
	Molex 87760-0616	2.00mm Pitch Milli-Grid Header, Right-Angle, Through Hole, 6 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 4.00mm, Tail Length 2.60mm, Lead-Free

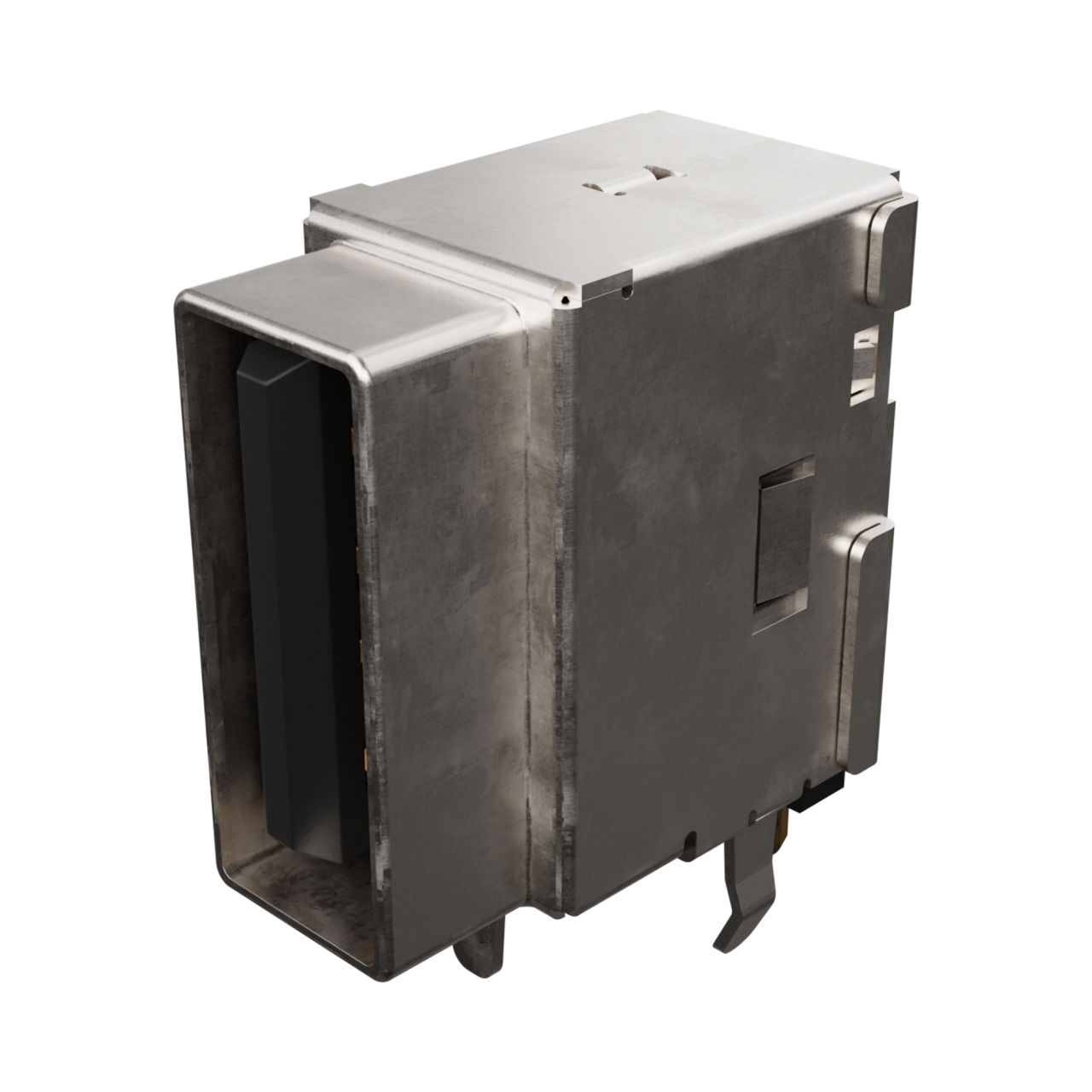

	Molex 89485-8000	Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right-Angle, Terminal Length 2.00mm, Without Mylar, Gold (Au) Flash Package, Lead-Free

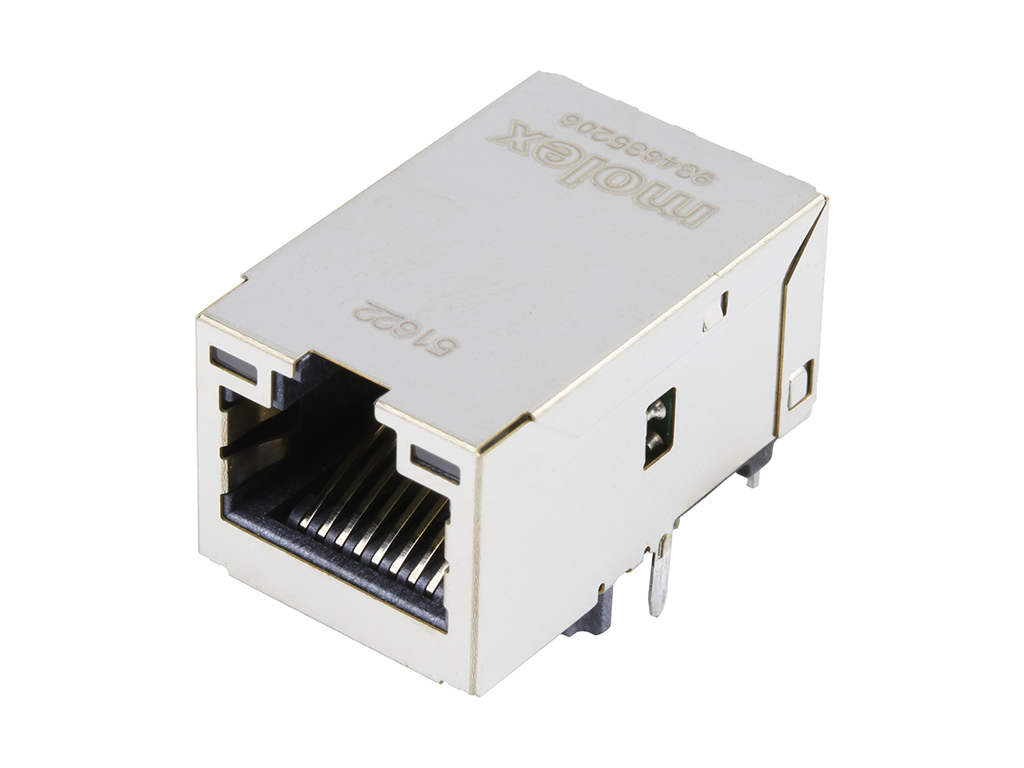

	Molex 93463-5206	MXMag Fast Ethernet 4 Core Non-PoE Single-Port RJ45 Connector, 25.40mm Depth, 3.30mm Phy Pin Length, Right-Angle, Inverted Profile, without Shield Tabs, with Green-Yellow LEDs, Industrial Temperature
