70246-2001

Heilind Number:	MOL70246-2001
Manufacturer:	Molex
Manufacturer Number:	70246-2001
Datasheet:	Product Specification
ECAD Model:

Description:

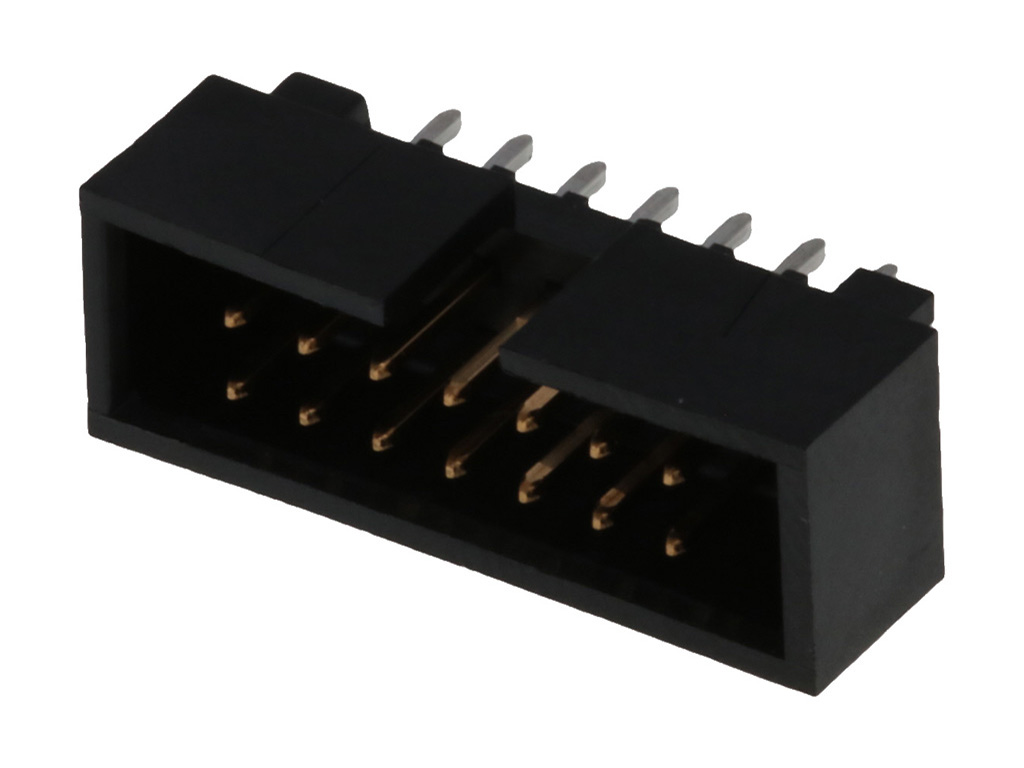

2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70246-2001
Series:	70246 - C-Grid
Amperage:	2.5 A
Connector Type:	C-Grid
Number of Contacts:	20
Number of Rows:	2
Termination Method:	Through Hole
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 VDC
Orientation:	Vertical
Keying:	No
Tail Length:	3.43 mm
Operating Temperature Range:	-55 - 120 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	20
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	235 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0702462001
SKU:	MOL70246-2001

Detailed Description

Introducing the 70246-2001, a high-performance C-Grid connector from our 70246 series. With a compact pitch of 2.54mm, this connector features 20 contacts in a straight, through-hole design for secure PCB termination. Rated for 2.5A and 250VDC, it offers reliable power and signal transmission in various applications. Gold contact plating ensures excellent conductivity, while a tin termination finish is ideal for lead-free soldering processes. With a wide operating temperature range of -55 to 120°C, this connector is suitable for demanding environments. Fully shrouded and RoHS compliant, the 70246-2001 guarantees both safety and environmental responsibility in your designs.
