| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 87715-9006 |
| Color: | Black |
| Series: | 87715 - PCI Express |
| Amperage: | 1.1 A |
| Connector Type: | PCI Express |
| Housing Material: | Thermoplastic |
| Number of Contacts: | 36 |
| Termination Method: | Through Hole |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Body Orientation: | Straight |
| Pitch: | 1 mm |
| Voltage: | 50 V AC/DC |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Keying: | Yes |
| Component Type: | Edgecard to PCB |
| Data Rate: | 8 Gb/s |
| Angle: | Vertical (Top Entry) |
| Tail Length: | 2.54 mm |
| Operating Temperature Range: | -55 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 36 |
| Mating Cycles: | 50 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Contact Termination Plating Thickness: | 2.540 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 010 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 1 mm |
| Electrical Model: | Yes |
| Power and Signal Configuration: | 36 s - 0 p |
| Edge Card Thickness: | 1.57 mm |
| Standards Met: | PCIe |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0877159006 |
| SKU: | MOL87715-9006 |
87715-9006
Specifications
Detailed Description
Introducing the 87715-9006, a high-performance black PCI Express card edge connector designed for seamless board-to-board connections in electronic applications. With 36 gold-plated contacts and a straight-through hole termination method, this connector ensures reliable signal transmission at a blazing fast data rate of 8 Gb/s. Constructed with durable thermoplastic housing and phosphor bronze contact material, it guarantees longevity even in harsh operating conditions ranging from -55 to 85 °C. Featuring a vertical (top entry) design with PCB locator and retention, it offers easy installation and secure connectivity. RoHS compliant and lead-free reflow solder capable, this connector is not only environmentally friendly but also ensures easy integration into your production process. Trust the 87715-9006 for high-speed, high-reliability board-to-board connections in your next electronic design.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 10-89-7142 | 2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 14 Circuits, 0.38 |  |
 | Molex 22-05-3061 | KK 254 Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin (Sn) Plating | |
 | Molex 22-23-2061 | KK 254 Solid Header, Vertical, with Friction Lock, 6 Circuits, Tin (Sn) Plating | |
 | Molex 70246-1401 | 2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 14 Circuits, 0.38 | |

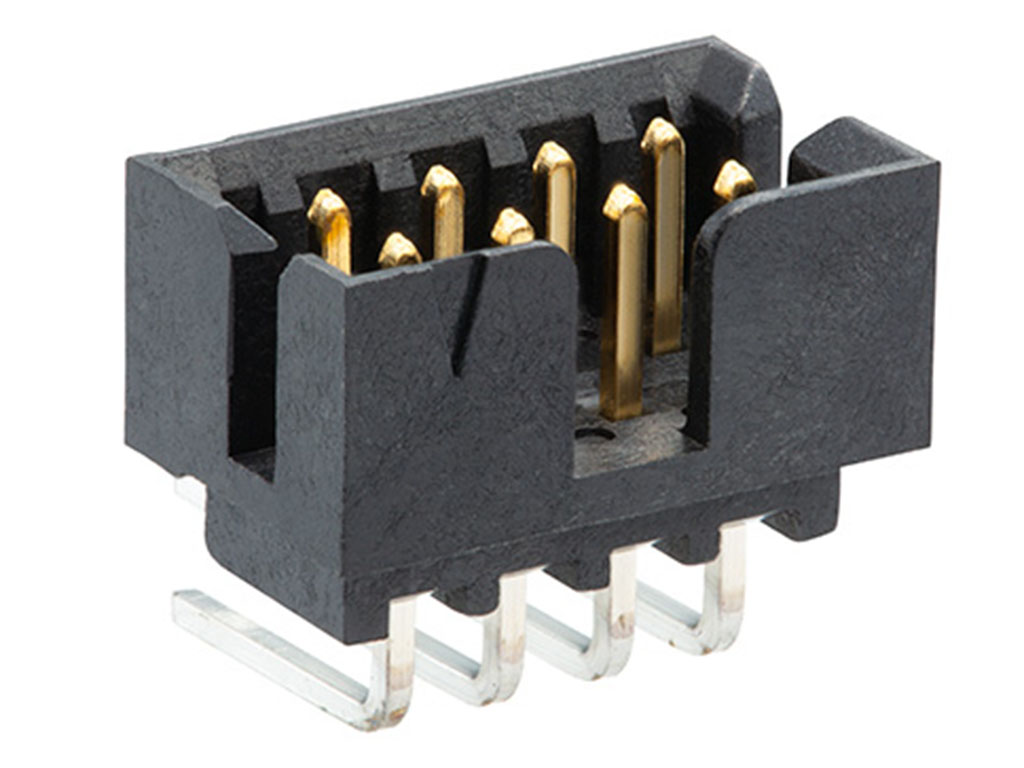

 | Molex 87833-1420 | Milli-Grid Header, Right Angle, Shrouded, Lead-Free, 14 Circuits, 0.38 | |
