43650-0419

Heilind Number:	MOL43650-0419
Manufacturer:	Molex
Manufacturer Number:	43650-0419
Datasheet:	Packaging Specifications
ECAD Model:

Description:

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 43650-0419
Color:	Black
Series:	43650
Amperage:	8.5 A
Connector Type:	Micro-Fit 3.0
Number of Contacts:	4
Number of Rows:	1
Termination Method:	Through Hole - Kinked Pin
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	3 mm
Voltage:	600 V
Material:	High Temperature Thermoplastic
Orientation:	Vertical
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	4
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	SMC and Wave
Duration at Max. Process Temperature (seconds):	030
Max. Cycles at Max. Process Temperature:	003
Glow Wire Capable:	Yes
Mated Height:	17.27 mm
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Shroud Type:	Fully
Product Name:	Micro-Fit 3.0
Material Flammability Standard:	94V-0
Part Aliases:	0436500419
SKU:	MOL43650-0419

Detailed Description

Introducing the Micro-Fit 3.0 Vertical Header, a high-performance connectivity solution for your PCB applications. This single-row header features 4 circuits with a secure PCB press-fit metal retention clip, ensuring reliable contact retention. With a pitch of 3.00mm and gold contact plating, it offers excellent conductivity and is glow-wire capable for added safety. The black high-temperature thermoplastic body is durable and flame-retardant, suitable for a wide range of operating environments. Designed for through-hole termination with kinked pins, this header has a current rating of 8.5A and a voltage of 600V, making it ideal for power and signal transmission. RoHS compliant and lead-free process compatible, the Micro-Fit 3.0 header guarantees quality and reliability in your designs. Upgrade your connectivity solutions today with this premium Molex connector.

Frequently Bought Together

Product	Part #	Description	Stock

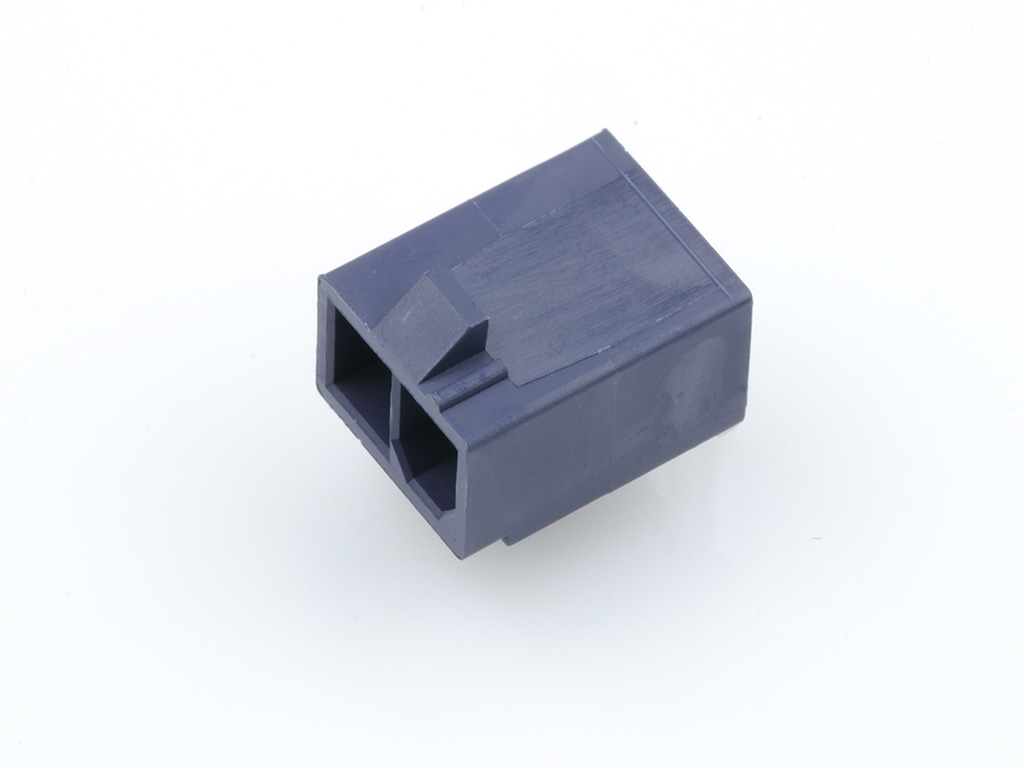

	Molex 172648-0102	Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, Nylon, 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable
	Molex 22-04-1021	Mini-Latch Wire-to-Board Header, Vertical, with Friction Ramp, 2 Circuits, Tin (Sn) Plating
	Molex 39-28-1043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

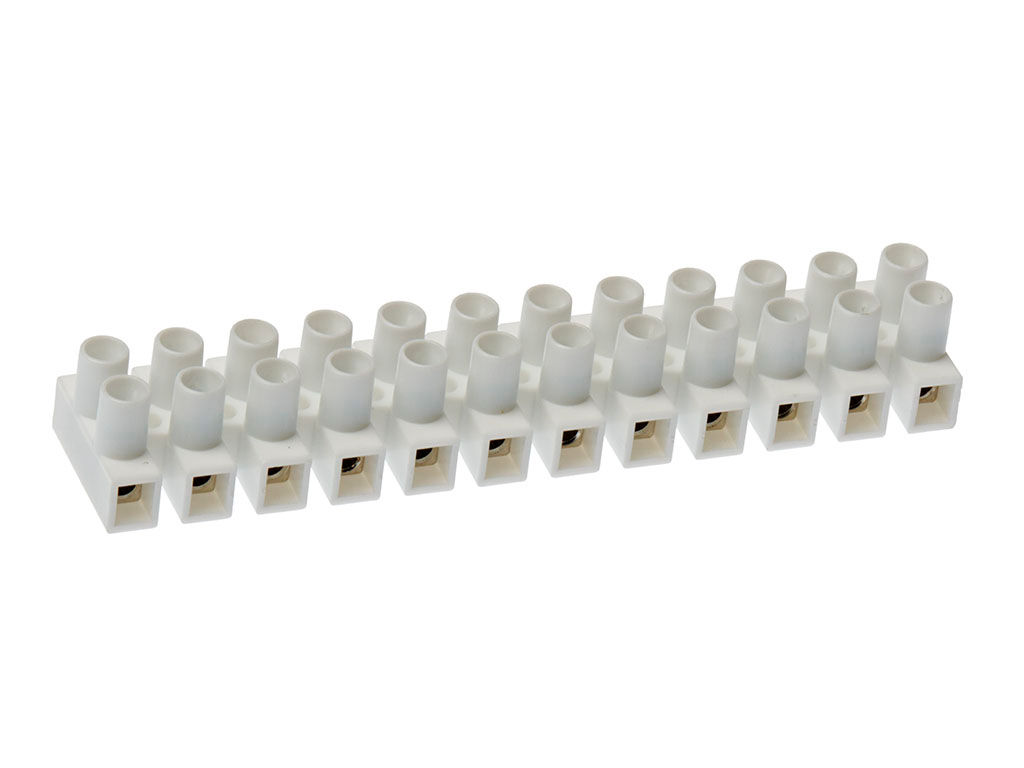

	Molex 39100-2302	12.00mm Pitch Beau Eurostyle Two-Screw Terminal Strips, 2 Circuits, Low Profile
	Molex 43045-0200	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Glow-Wire Capable, Black

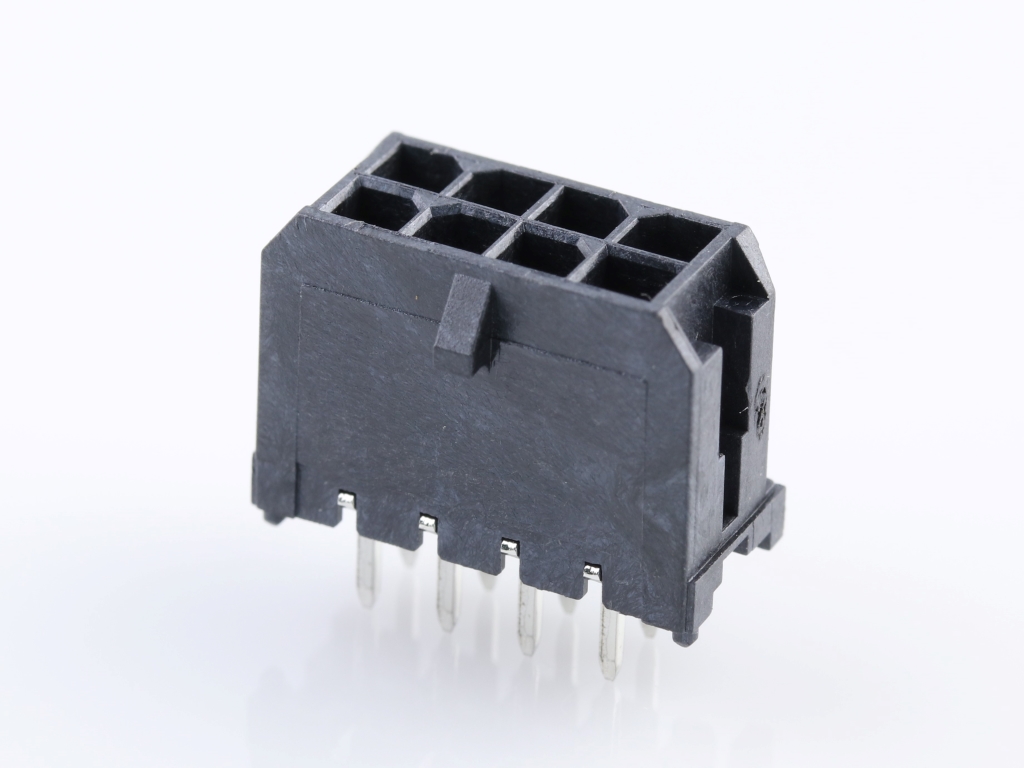

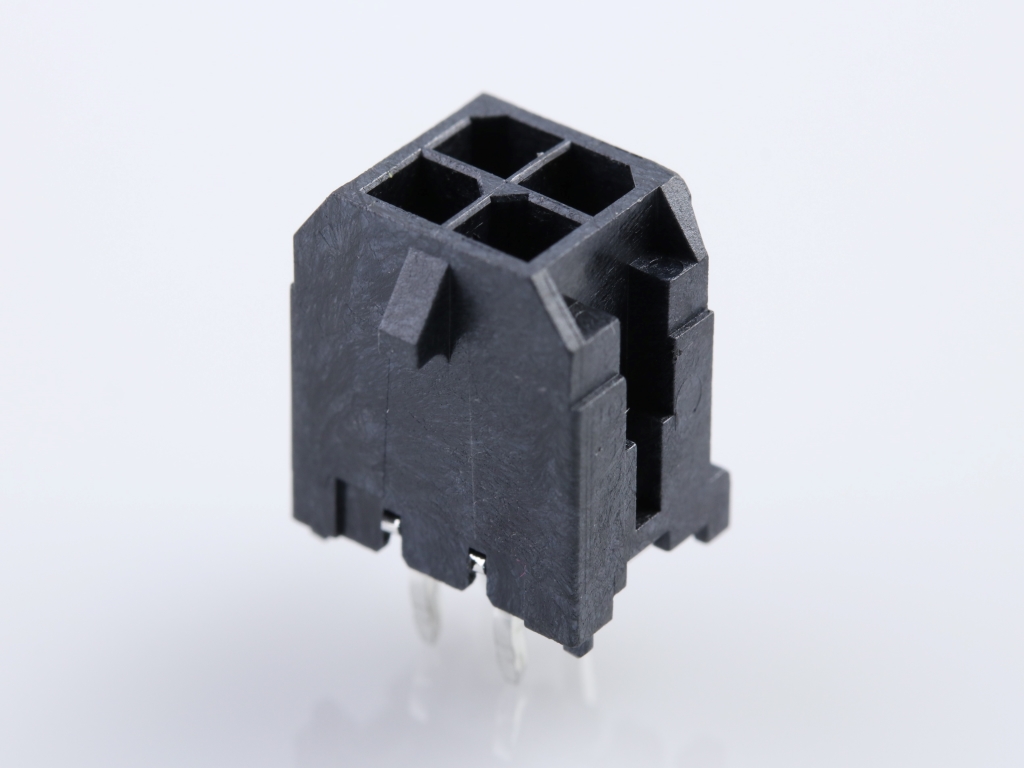

	Molex 43045-0413	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
