39100-2302

Heilind Number:	MOL39100-2302
Manufacturer:	Molex
Manufacturer Number:	39100-2302
Datasheet:	Datasheet
ECAD Model:

Description:

12.00mm Pitch Beau Eurostyle Two-Screw Terminal Strips, 2 Circuits, Low Profile

More >>

Specifications

Attribute	Value
Product Category:	Barrier Terminal Blocks, Strips & Accessories Barrier Terminal Blocks & Strips
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39100-2302
Color:	White
Series:	39100 - Eurostyle Two Screw
Amperage:	40 A
Connector Type:	Eurostyle Two Screw
Number of Contacts:	2
Number of Rows:	2
Contact Material:	Stainless Steel
Maximum Operating Temperature:	105 °C
Minimum Operating Temperature:	-40 °C
Body Orientation:	Straight
Pitch:	12 mm
Voltage:	300 V
Material:	Nylon
Orientation:	Vertical
Component Type:	One Piece
Operating Temperature Range:	-40 - 105 °C
Number of Contacts Loaded:	2
Panel Mount:	Mounting Holes Between Circuit
PCB Retention:	Yes
Polarized to Mate:	No
Wire Size:	10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 8 AWG
Connector System:	Wire to Wire
Termination Pitch:	12 mm
Lock to Mating Part:	No
Stackable:	No
Part Aliases:	0391002302 M800-03-02-5
SKU:	MOL39100-2302

Detailed Description

Introducing the 39100-2302, a high-performance Eurostyle Two Screw terminal block designed for secure and reliable wire connections. Featuring a durable nylon body and stainless steel contacts, this terminal block ensures longevity and stability in demanding applications. With a 40A amperage rating and a maximum operating temperature of 105°C, it is suitable for power-intensive systems. The two-row, two-contact design allows for efficient cable management, while the vertical orientation and PCB retention option offer flexibility in installation. Rated for 300V, this terminal block accommodates a wide range of wire sizes from 8 AWG to 20 AWG. With RoHS compliance and high-quality construction, the 39100-2302 is the ideal choice for industrial and commercial projects.

Frequently Bought Together

Product	Part #	Description	Stock

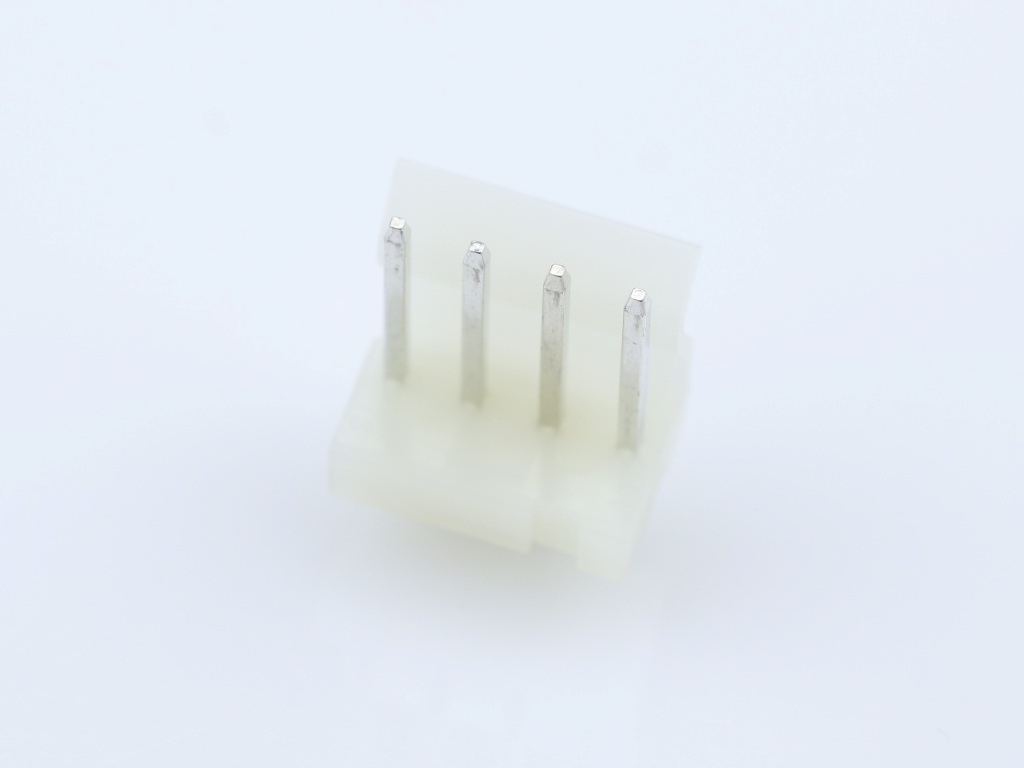

	Molex 09-65-2048	SPOX and KK 396 Wire-to-Board Header, Vertical, with Friction Lock, 4 Circuits
	Molex 19073-0167	Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 8 (M4), Length 27.71mm, Mylar Tape Carrier
	Molex 19073-0172	Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 10 (M5), Length 27.71mm, Mylar Tape Carrier
	Molex 22-03-2041	KK 254 Wire-to-Board Header, Single Row, Vertical, 4 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
	Molex 39-28-1043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 43160-2102	Sabre Vertical Header, 2 Circuits, Glow Wire Capable, PCB Thickness 1.60mm, with Board Lock
	Molex 43650-0319	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
	Molex 43650-0419	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black

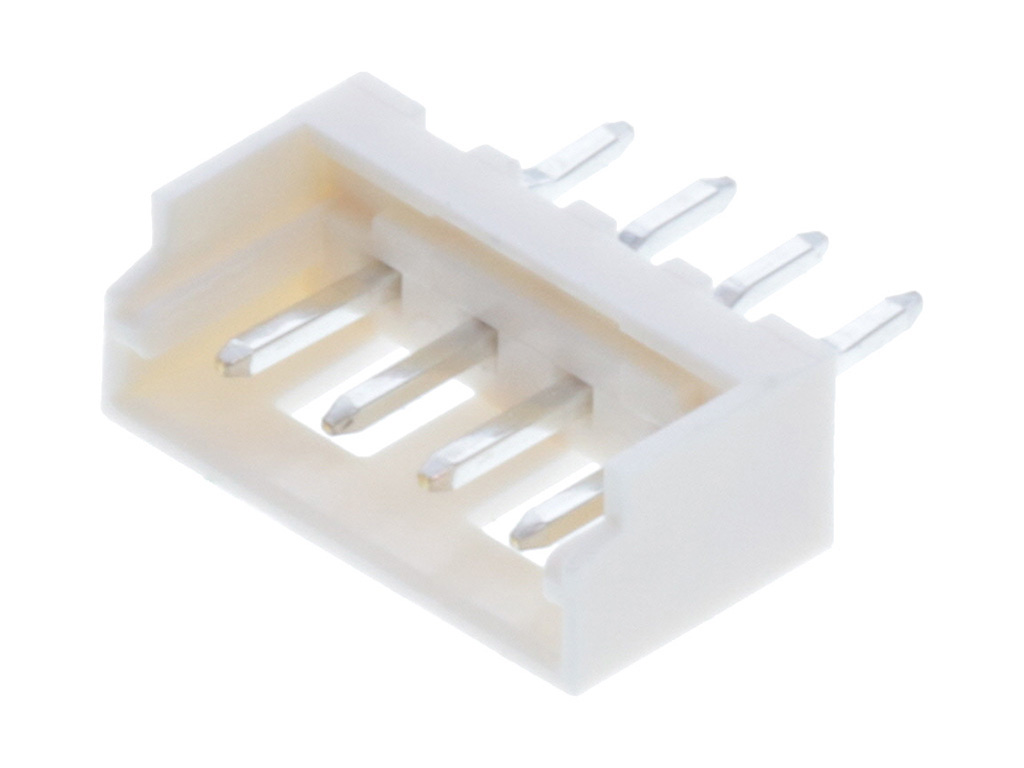

	Molex 53253-0470	2.00mm Pitch Micro-Latch Wire-to-Board Header, Vertical, Square Pin, Three-sided Shroud, 4 Circuits
	Molex 70543-0003	2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 4 Circuits, 0.38

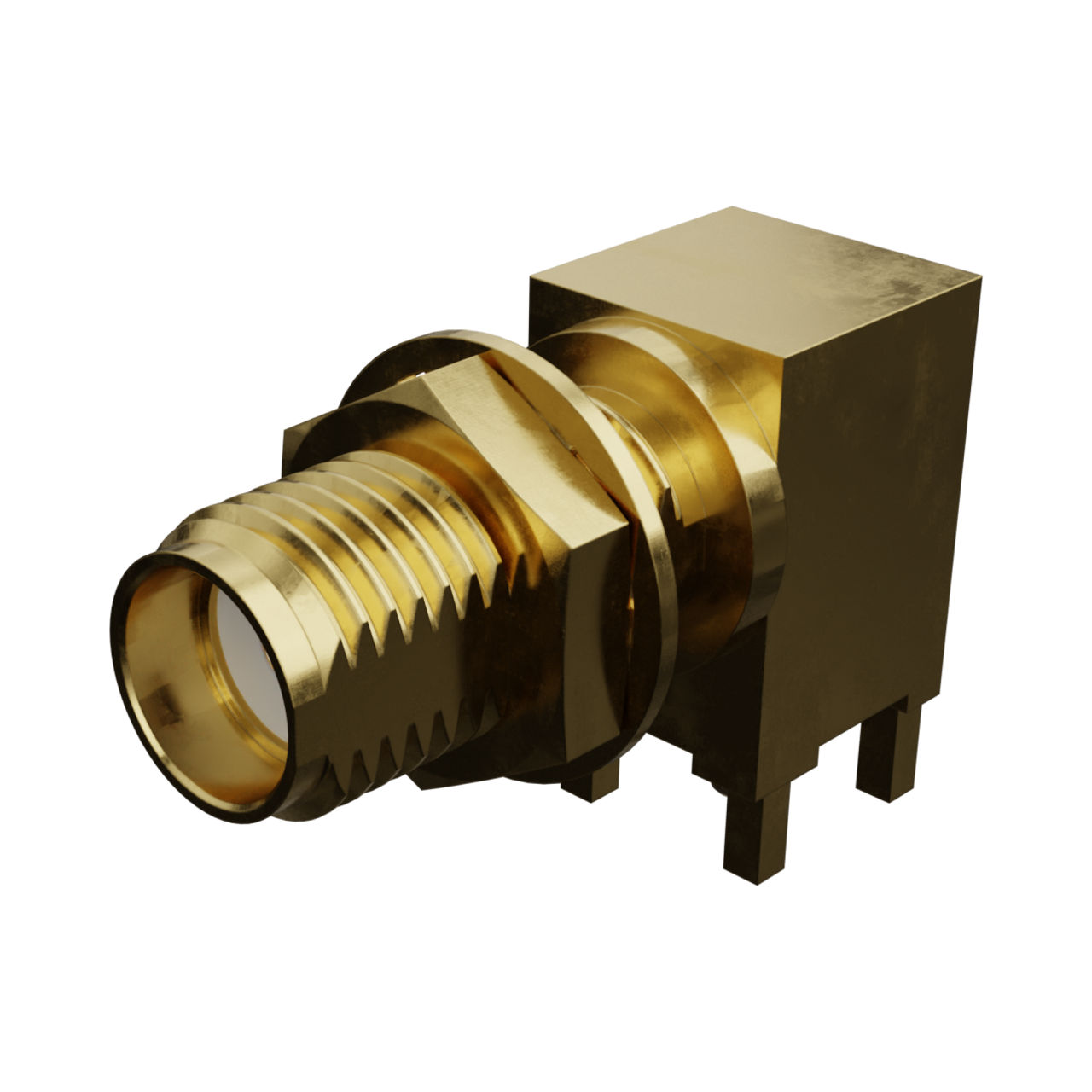

	Molex 73251-2201	50 Ohms, SMA Jack, Right-Angle PCB, 0.76?m Gold (Au) Plating, 50 Pieces Per Tray

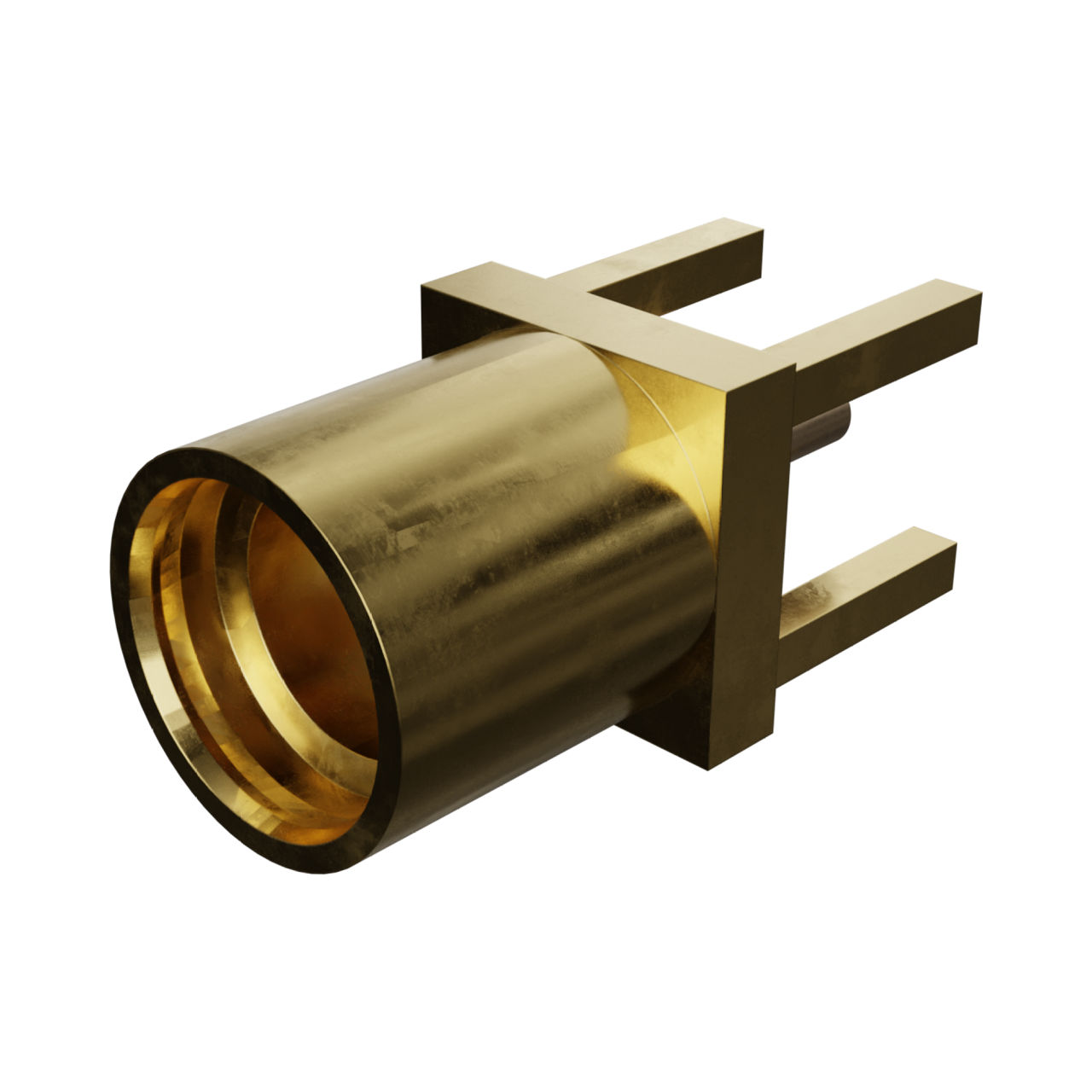

	Molex 73415-1471	50 Ohms, MMCX Vertical Jack, PCB, Brass and Gold Per Commercial Requirements, Bag
