172648-0102

ICC Number:	MOL172648-0102
Manufacturer:	Molex
Manufacturer Number:	172648-0102
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, Nylon 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable

More >>

Specifications

Attribute	Value
Product Category:	Connectors PCB Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172648-0102
Gender:	Male
Number of Contacts:	2
Number of Rows:	1
Contact Material:	Brass
Contact Plating:	Matte Tin
Pitch:	4.2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-2
Current Rating:	12.5 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Right Angle
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL172648-0102

Detailed Description

The Mini-Fit Jr. Header 172648-0102 is a versatile connector designed for reliable power and signal transmission in electronic applications. With a right-angle, single-row configuration and a snap-in plastic peg PCB lock, this header ensures secure board-to-board connections in tight spaces. Featuring two brass contacts with tin plating, it offers a current rating of 13 A and a voltage of 600 V, making it suitable for a wide range of systems. Constructed from Nylon 94V-2 with matte tin plating, this connector is glow-wire capable and operates in temperatures ranging from -40 to 105 °C. RoHS-compliant and lead-free wave solder compatible, the 172648-0102 is a reliable solution for your PCB connection needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-32-1071	5.08mm Pitch SPOX Wire-to-Board Header, Vertical, with Friction Lock, 7 Circuits
	Molex 10-89-7061	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 6 Circuits, Tin (Sn) Plating, 2.72mm PC Tail Length
	Molex 172286-2102	Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 2 Circuits, with Kinked Pins, Tin (Sn) Plating, Natural, Glow-Wire Capable
	Molex 22-05-2141	KK 254 Wire-to-Board Header, Single Row, Right-Angle, 14 Circuits, PA Polyamide Nylon, Tin (Sn) Plating

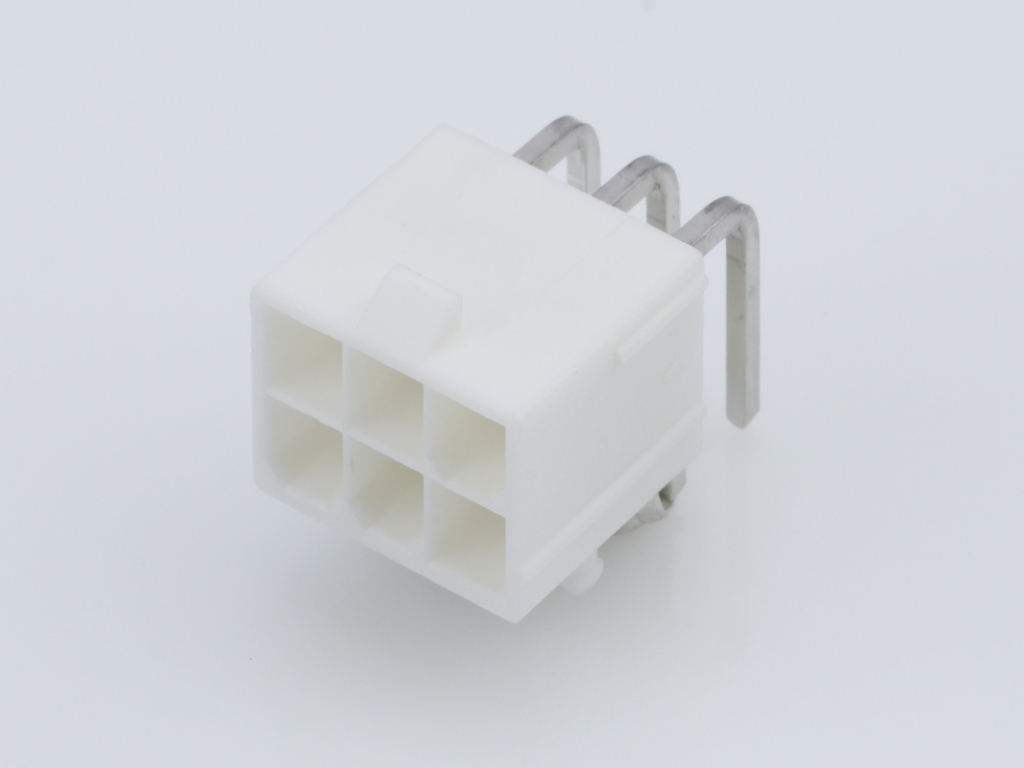

	Molex 39-30-0060	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-1040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural
	Molex 39-30-1049	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-3035	Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Plating

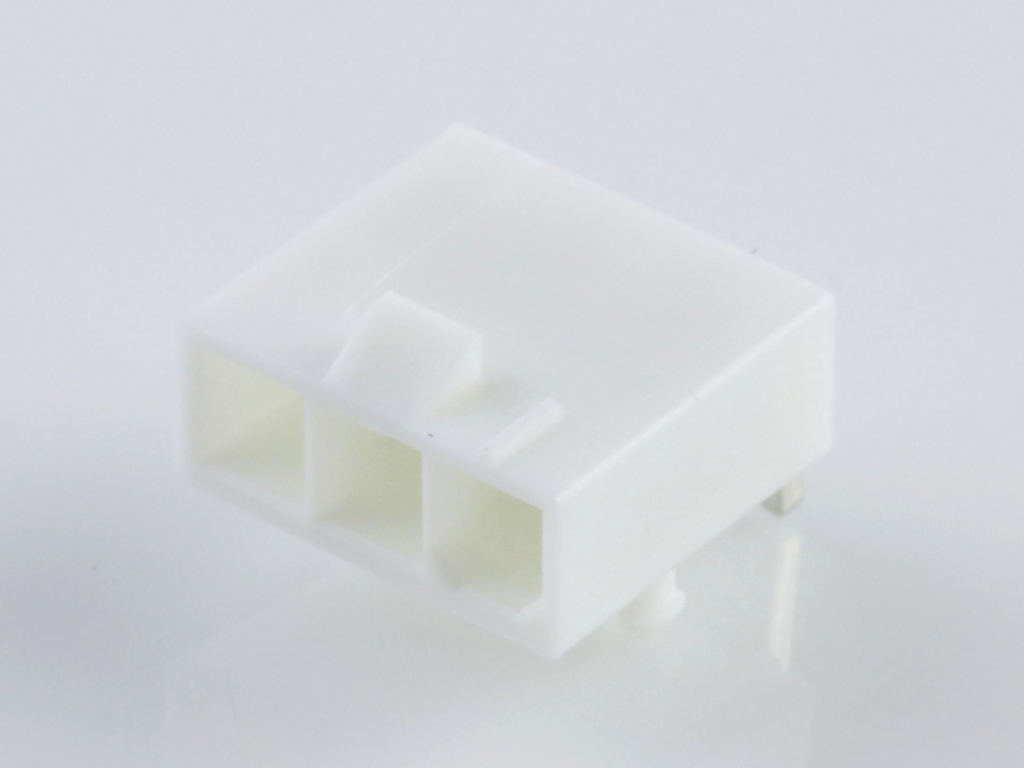

	Molex 39-30-3036	Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-0, Tin (Sn) Plating
