39-30-0100

Heilind Number:	MOL39-30-0100
Manufacturer:	Molex
Manufacturer Number:	39-30-0100
Datasheet:	Application Specification
ECAD Model:

Description:

Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 10 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-30-0100
Color:	Natural
Series:	5569 - Mini-Fit Jr.
Amperage:	13 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	10
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Right Angle
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Right Angle
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Matte Tin
Contact Mating Area Plating Thickness:	2.54 µm
Number of Contacts Loaded:	10
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	2.540 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.78 mm
Connector System:	Wire to Board
Contact Termination Plating:	Matte Tin
Maximum Solder Process Temperature:	240 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0039300100 5569-10A2-210
SKU:	MOL39-30-0100

Detailed Description

Introducing the Mini-Fit Jr. Header, a high-performance connector designed for your PCB assembly needs. This dual-row header features a right-angle orientation with a convenient snap-in plastic peg for secure installation. With 10 circuits, it offers ample connectivity for your applications. Constructed from durable PA Polyamide Nylon 6/6 94V-0 material, and boasting 2.54µm Matte Tin (Sn) Plating, this connector ensures reliable performance even in demanding environments. Rated for 13 A and 600 V, it guarantees efficient power transmission. Its brass contacts and through-hole termination method provide robust and stable connections. Ideal for wire-to-board applications, this header is RoHS compliant, making it a sustainable choice for your projects. Trust in the Mini-Fit Jr. Header for seamless and dependable connectivity in your designs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-89-7081	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 8 Circuits, Tin (Sn) Plating, 2.72mm PC Tail Length
	Molex 10-89-7101	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 10 Circuits, Tin (Sn) Plating, 2.72mm PC Tail Length

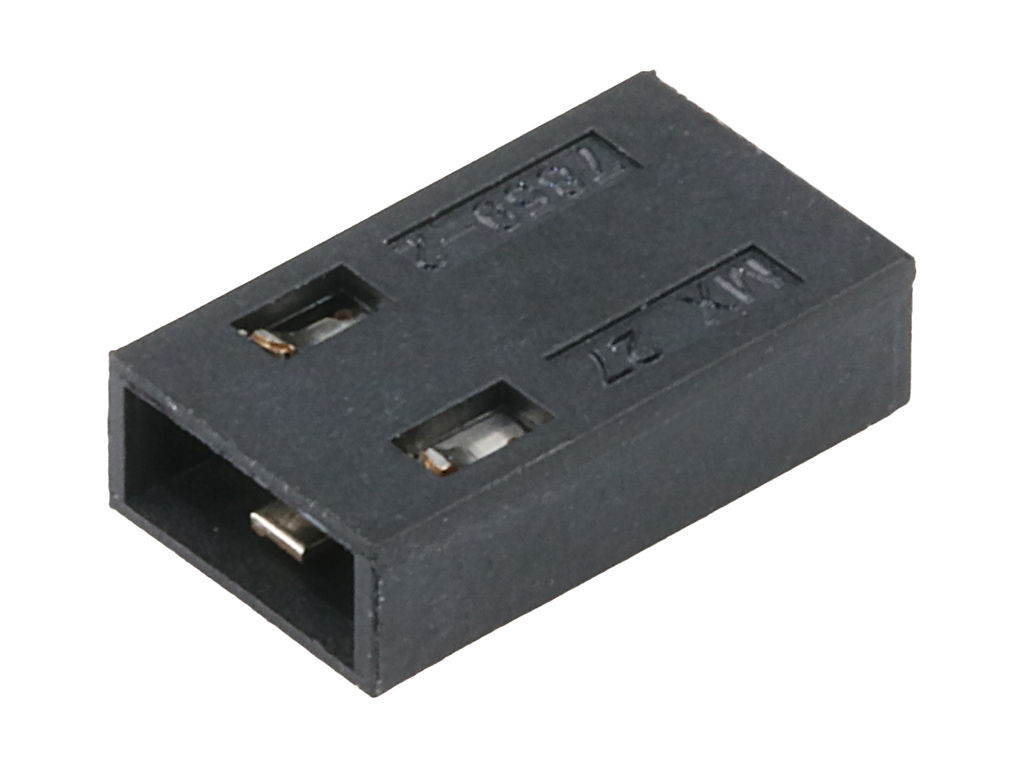

	Molex 15-29-1024	2.54mm Pitch C-Grid Shunt Terminal Housings, 0.381
	Molex 22-05-3061	KK 254 Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin (Sn) Plating
	Molex 22-11-2052	KK 254 Solid Header, Vertical, with Friction Lock, 5 Circuits, Gold (Au) Plating
	Molex 22-23-2021	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 22-23-2041	KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
	Molex 22-27-2021	KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 22-28-4060	KK 254 Breakaway Header, Vertical, 6 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm
	Molex 39-29-9064	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural

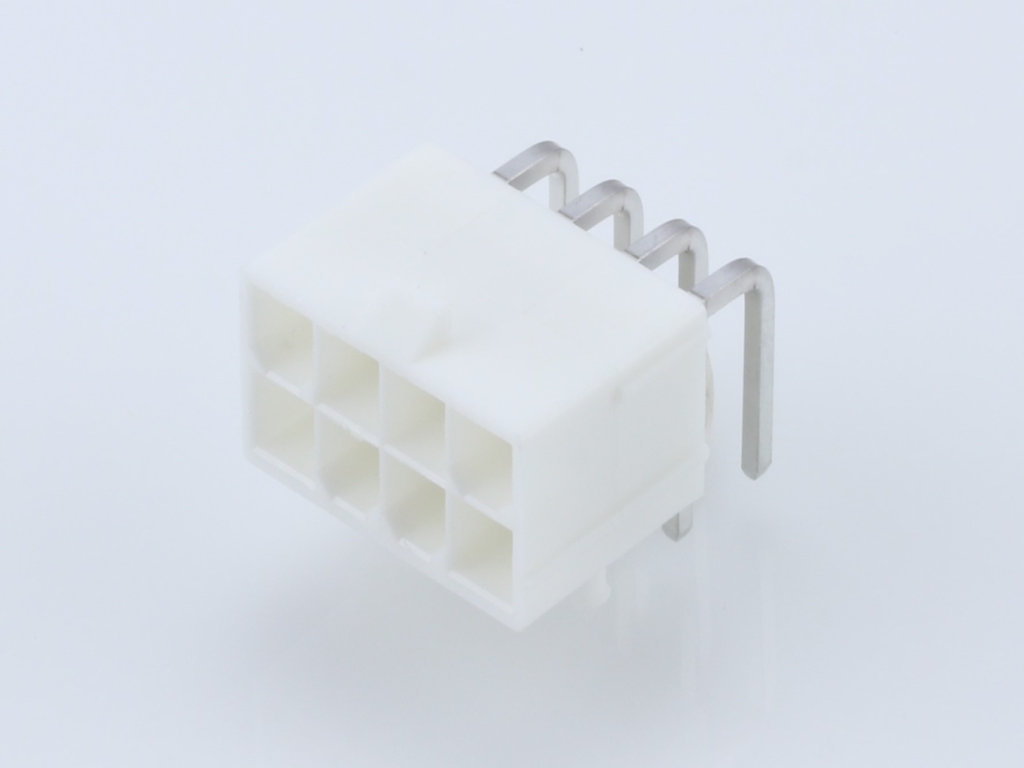

	Molex 39-30-0080	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 8 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating

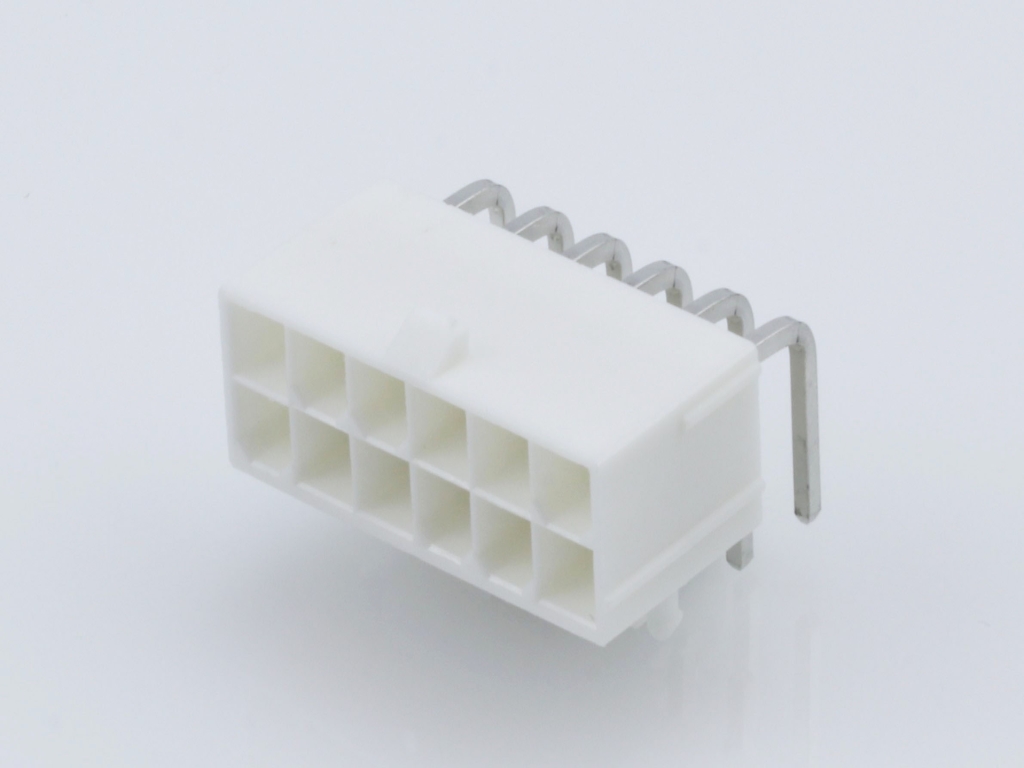

	Molex 39-30-0120	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 12 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-0180	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 18 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 43045-0212	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
	Molex 43650-0315	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
	Molex 43650-0415	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
	Molex 43860-0001	Modular Jack, Right Angle, Low Profile, Inverted, 8/8

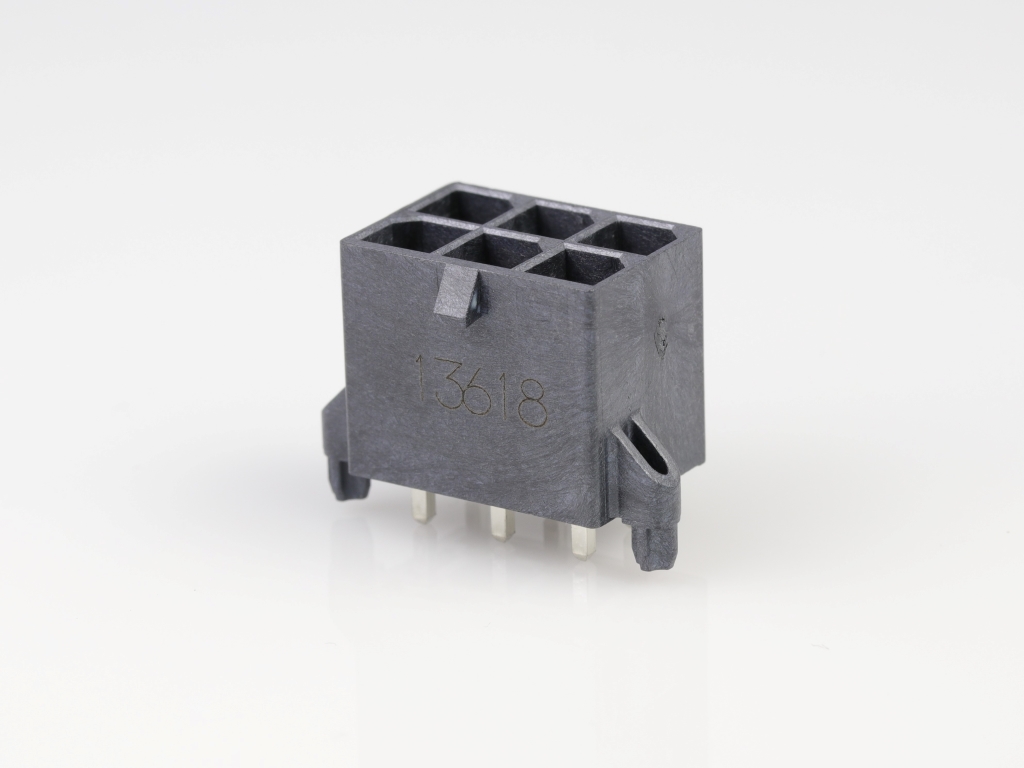

	Molex 76829-0006	Mega-Fit Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 1.52
