43650-0415

ICC Number:	MOL43650-0415
Manufacturer:	Molex
Manufacturer Number:	43650-0415
Datasheet:	Datasheet
ECAD Model:

Description:

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 4 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 43650-0415
Gender:	Male
Number of Contacts:	4
Number of Rows:	1
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	3 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	8.5 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL43650-0415

Detailed Description

The Micro-Fit 3.0 Vertical Header is a high-performance PCB connector designed for reliability in a variety of applications. With a compact 3.00mm pitch and featuring a single row of 4 circuits, this header is perfect for space-constrained designs. The inclusion of a PCB polarizing peg ensures secure and accurate mating, while the tin contact plating and glow-wire capability guarantee enhanced safety and durability. Its straight body orientation and through hole termination method with kinked pins make for easy and secure installation. Rated for up to 8.5 A and 600 V, with a wide operating temperature range of -40 to 105 °C, this connector is suitable for demanding environments. RoHS compliant and lead-free process capable, the Micro-Fit 3.0 is a reliable and environmentally friendly choice for wire-to-board and wire-to-wire connections.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4060	6.35mm Pitch MLX Power Connector Header, Vertical, 6 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White

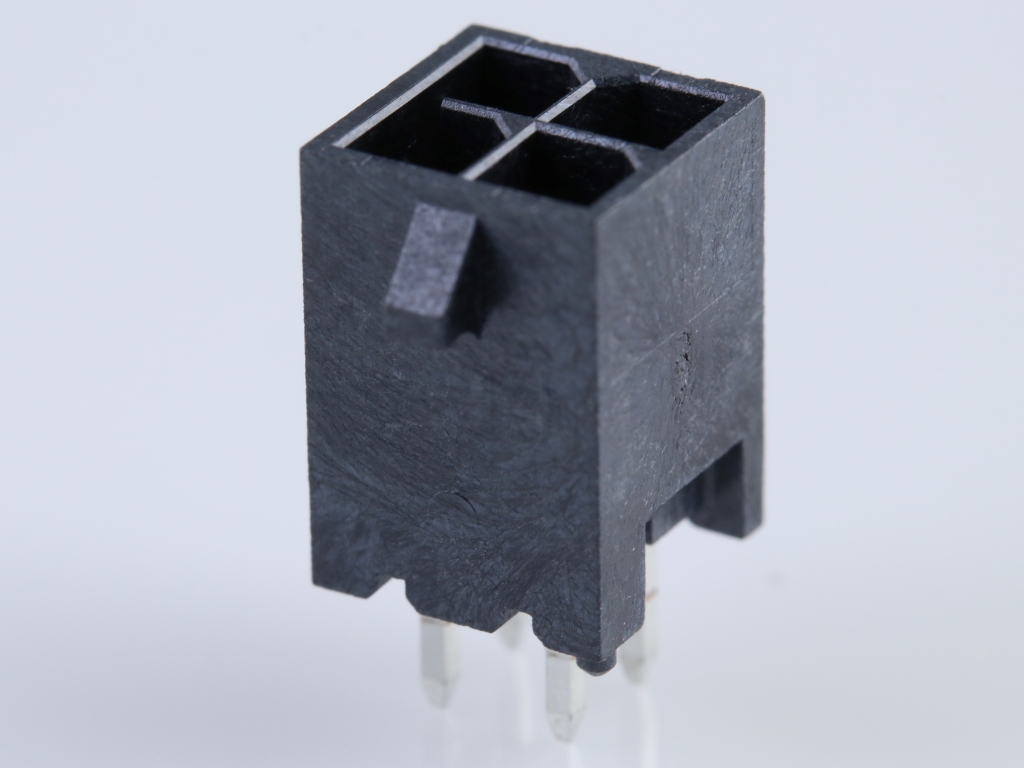

	Molex 206832-0401	Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 4 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Black
