76829-0006

ICC Number:	MOL76829-0006
Manufacturer:	Molex
Manufacturer Number:	76829-0006
Datasheet:	Datasheet
ECAD Model:

Description:

Mega-Fit Vertical Header, 5.70mm Pitch, Through Hole, Dual Row, 6 Circuits, Matte Tin (Sn) Plating, 3.73mm Tail Length, Glow-Wire Capable, Black

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 76829-0006
Gender:	Male
Number of Contacts:	6
Number of Rows:	2
Contact Material:	High Conductivity Copper
Contact Plating:	Matte Tin
Pitch:	5.7 mm
Shroud Type:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	23.5 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL76829-0006

Detailed Description

The Mega-Fit Vertical Header ( 76829-0006) is a high-performance through-hole connector designed for power applications. With a pitch of 5.70mm and featuring dual rows, it offers reliable connectivity in demanding environments. This black header has 6 circuits and is rated for 23A and 600V AC/DC, making it suitable for power-intensive systems. Constructed with high conductivity copper contacts and a liquid crystal polymer body, it ensures durability and performance. Featuring matte tin plating, it is suitable for lead-free soldering processes. With keying, PCB locator, and retention features, it offers secure and fool-proof mating. RoHS-compliant and UL certified, it meets stringent quality and safety standards. Perfect for wire-to-board applications, the Mega-Fit header is a reliable choice for high-power connectivity.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4020	6.35mm Pitch MLX Power Connector Header, Vertical, 2 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
	Molex 22-05-3061	KK 254 Solid Header, Right-Angle, with Friction Lock, 6 Circuits, Matte Tin (Sn) Plating
	Molex 22-11-2072	KK 254 Solid Header, Vertical, with Friction Lock, 7 Circuits, 0.51µm Gold (Au) Plating, 3.56mm Tail Length
	Molex 39-28-1103	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1243	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 24 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-29-9046	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-0040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 43045-0200	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0400	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0412	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0600	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43650-0615	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 52559-0652	Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 6 Circuits, Gold Plating
	Molex 53047-0310	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 3 Circuits, 2.30mm PC Tail Length
	Molex 53047-0610	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 6 Circuits, 2.30mm PC Tail Length
	Molex 53398-0771	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Surface Mount, Tin (Sn) Plating, Friction Lock, 7 Circuits, 0.60mm PC Tail Length
	Molex 76825-0006	Mega-Fit Right-Angle Header, 5.70mm Pitch, Through Hole, Dual Row, 6 Circuits, Matte Tin (Sn) Plating, 3.60mm Tail Length, Glow-Wire Capable, Black

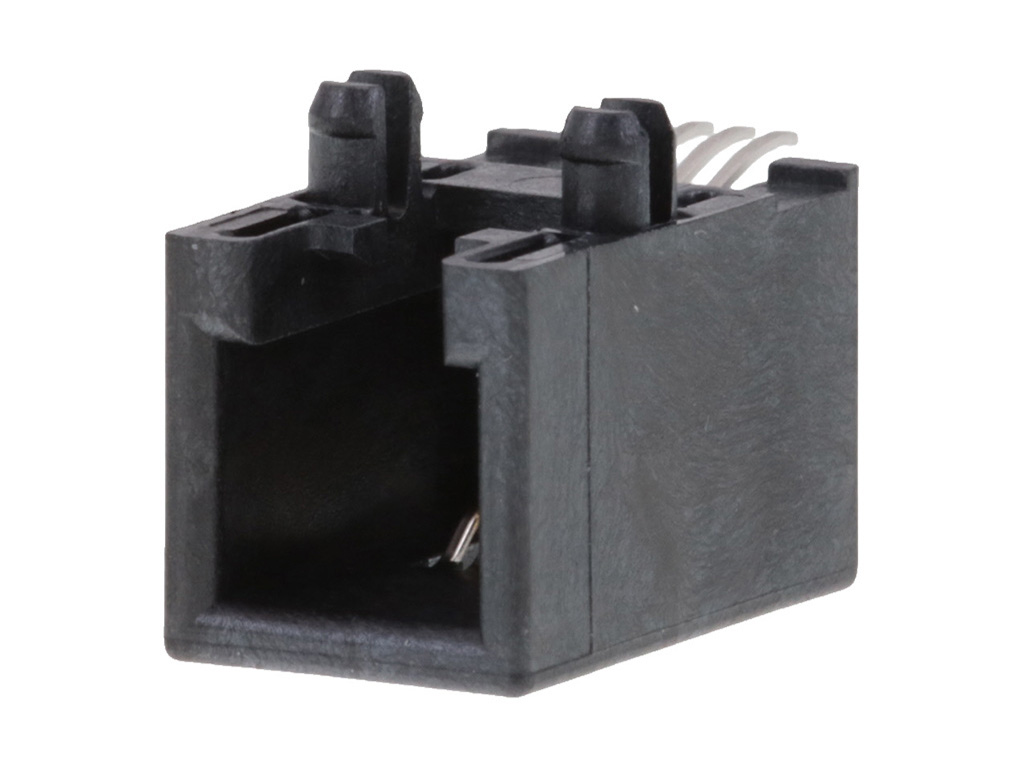

	Molex 95501-6449	Modular Jack, Right-Angle, Surface Mount, 4/4, Low Profile, Tube

Product Change Notice

Effective Date	Description of Change	Download
10/01/2022	512261 - Capacity change or tool replacement. This notification is to inform you about set of tooling is being added to meet the current and future demands of this product referenced below. There will be no changes in fit, form or function from additional tooling when compared to the existing tooling.	Download
09/09/2022	512124 - Change Supplier. This notification is to inform you that a Supplier to Molex Lincoln Nebraska is adding an additional supplier source that will impact the part(s) attached as per list. No changes will be made to product as part of this change. Supplier source to Molex Lincoln Nebraska will be unchanged.	Download
08/03/2022	512438 - Partial retraction of PCN 512124. reason for partial retraction is that material 80010815 & 80010818 should not have been part of PCN 512124 the other material numbers for 512124 are not affected by this partial retraction	Download
03/28/2022	511200 - Change Supplier. Supplier change from Polyplastics to WOTE and resin LCP 30% GF BLACK UL94V-0 unchanged Reason:Polyplastics don't give Molex Shanghai any volume in CY22 Q2 due to capacity shortage, we need to qualify local LCP supplier Wote to meet ramp-up demand Impact: Resin 899920212 (POLYPLASTICS - LAPEROS E130I - BLACK) Implement change: Validation of supplier change	Download
01/24/2022	510412 - Change Supplier. a second source material supplier is being added to ensure ability to provide for current and future demand.	Download
08/01/2021	510134 - Supplier Change. Due to these supply constraints molex identified an internal shortage of resin supply which would create a challenge to fulfill all orders Alternative supplier operated under a certified quality management system.	Download
06/01/2021	510379 - Retraction of PCN 510134. Due to E471i is the only resin effected and change in Molex Malaysia. This change is impacted for 78171, 78172, 205871, 205872 series only. no change on E130i the retraction is immediately.	Download
04/30/2019	506820 - Manufacturing Process Change (Molex). The manufacturing process for the part(s) identified in this notice are changing.	Download
