| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 35363-0860 |
| Color: | Natural |
| Pitch: | 2 mm |
| Keying: | No |
| Series: | 35363 - Sherlock |
| Voltage: | 125 V |
| Amperage: | 2 A |
| Material: | Nylon |
| Shroud Type: | Partial |
| Breakaway: | No |
| Stackable: | No |
| Orientation: | Right Angle |
| PCB Locator: | No |
| Tail Length: | 3.2 mm |
| Mating Cycles: | 30 |
| PCB Retention: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector Type: | Sherlock |
| Number of Rows: | 1 |
| Body Orientation: | Right Angle |
| Connector System: | Wire to Board |
| Polarized to PCB: | No |
| Glow Wire Capable: | No |
| Polarized to Mate: | Yes |
| Number of Contacts: | 8 |
| Termination Method: | Through Hole |
| Lock to Mating Part: | Yes |
| Guide to Mating Part: | No |
| Make First / Break Last: | No |
| Surface Mount Compatible: | No |
| Number of Contacts Loaded: | 8 |
| Contact Mating Area Plating: | Tin |
| Contact Termination Plating: | Tin |
| Operating Temperature Range: | -40 - 105 °C |
| Part Aliases: | 0353630860 |
| Material Flammability Standard: | 94V-0 |
| SKU: | MOL35363-0860 |
35363-0860
Specifications
Detailed Description
Introducing the 35363-0860, a high-performance right angle PCB pin header from the Sherlock series. This connector, featuring a natural color, is designed with 8 contacts and a 2mm pitch for secure through-hole termination. With a low amperage rating of 2A and a maximum voltage of 125V, it ensures reliable power transmission in various applications. Constructed with durable nylon material and tin-plated contact mating areas, it guarantees robust performance even in harsh environments. Its compact design, UL and CSA agency certifications, along with RoHS compliance, make it a top choice for your wire-to-board connectivity needs. Upgrade your PCB assembly with the 35363-0860 for seamless and dependable operation.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19073-0167 | Avikrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 8 (M4), Length 27.71mm, Yellow, Mylar Tape Carrier |  |
 | Molex 19073-0172 | Avikrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 10 (M5), Length 27.71mm, Yellow, Mylar Tape Carrier | |

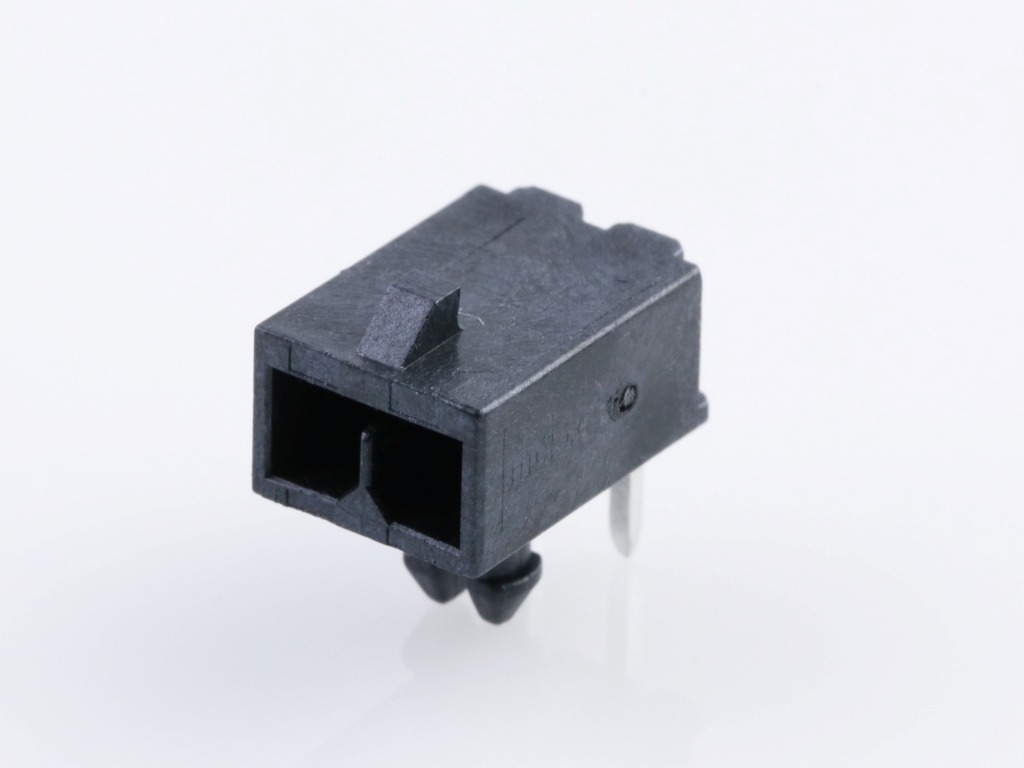

 | Molex 215760-1002 | Micro-Fit+ Right-Angle Header, Through Hole, 3.00mm Pitch, Single Row, 2 Circuits, Matte Tin (Sn) Plating, Glow-Wire Capable, Black | |
 | Molex 22-03-2041 | KK 254 Wire-to-Board Header, Single Row, Vertical, 4 Circuits, PA Polyamide Nylon, Tin (Sn) Plating | |
 | Molex 26-60-4020 | KK 396 Header, Vertical, Friction Lock, 2 Circuits, Tin (Sn) Plating | |
 | Molex 35362-0250 | 2.00mm Pitch Sherlock Wire-to-Board Header, Vertical, with Positive Lock, 2 Circuits, with Kinked PC Tails, Natural | |
 | Molex 39-00-0047 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 28-22 AWG, Bag | |
 | Molex 39-01-2160 | Mini-Fit Jr. Receptacle Housing, Dual Row, 16 Circuits, UL 94V-2, Natural | |
 | Molex 39-28-1043 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39-29-3086 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 43031-0007 | Micro-Fit 3.0 Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Bag | |
 | Molex 43160-2102 | Sabre Vertical Header, 2 Circuits, Glow-Wire Capable, PCB Thickness 1.60mm, with Board Lock | |

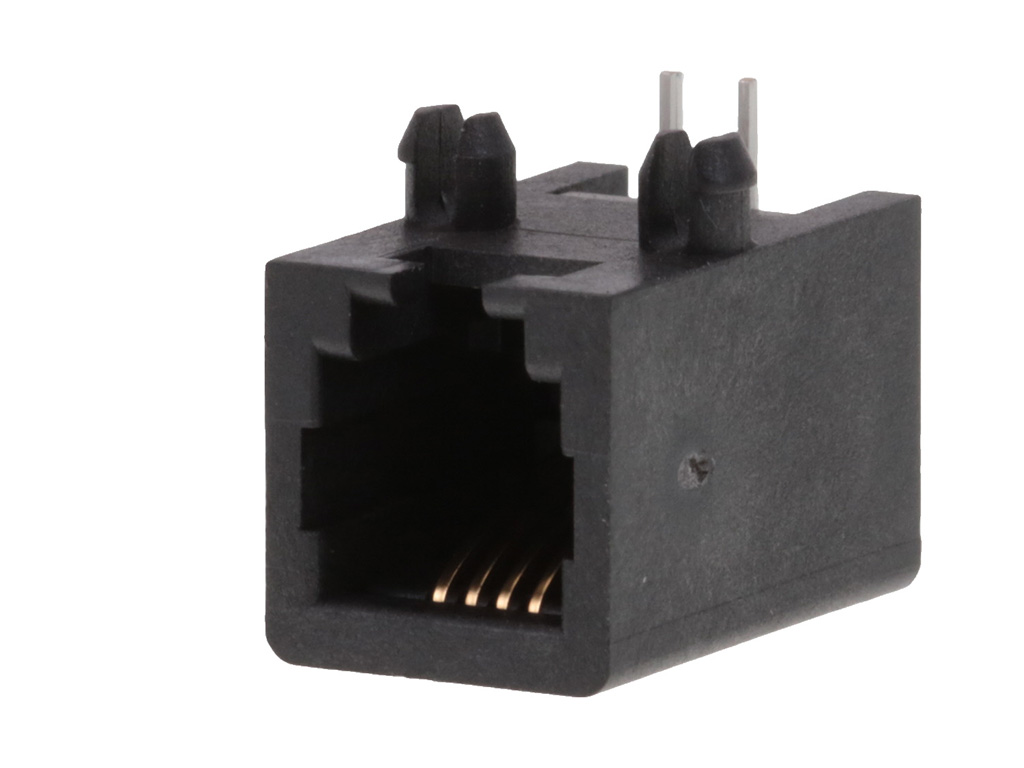

 | Molex 43202-4101 | Modular Jack, Right-Angle, Low Profile, 4/4 | |
