39-29-3086

ICC Number:	MOL39-29-3086
Manufacturer:	Molex
Manufacturer Number:	39-29-3086
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-29-3086
Gender:	Male
Number of Contacts:	8
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	4.2 mm
Shroud Type:	Yes
Flammability Rating:	UL 94V-2
Current Rating:	9 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL39-29-3086

Detailed Description

39-29-3086 - Introducing the Mini-Fit Jr. Vertical Header, a reliable connectivity solution for your PCB projects. With a pitch of 4.20mm and featuring dual rows, this header offers enhanced performance with 8 circuits. The design includes a tin-plated finish for durability, while the natural color complements any setup. Constructed with high-quality brass contacts and a straight body orientation, it ensures secure and efficient connections. Rated for 600V and 9A, it meets stringent safety standards. The through-hole termination method with a tail length of 3.5mm guarantees easy installation. RoHS compliant and suitable for various applications, this Mini-Fit Jr. header is a must-have for your electronic projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 10-84-4030	6.35mm Pitch MLX Power Connector Header, Vertical, 3 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
	Molex 10-89-7140	2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 14 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating, 2.72mm PC Tail
	Molex 22-10-2021	KK 254 Wire-to-Board Header, Single Row, Vertical, 2 Circuits, PA Polyamide Nylon, Gold (Au) Plating
	Molex 22-23-2041	KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
	Molex 26-60-4020	KK 396 Header, Vertical, Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 34690-0200	Stac64 Vertical Header Assembly, 20 Circuits, Polarization A, Black, Tray
	Molex 35363-0860	2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 8 Circuits
	Molex 39-00-0047	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 28-22 AWG, Bag
	Molex 39-28-1163	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 16 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1223	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 22 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-29-3066	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-29-3106	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-1040	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural
	Molex 43045-0200	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Snap-in Plastic Peg PCB Lock, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black

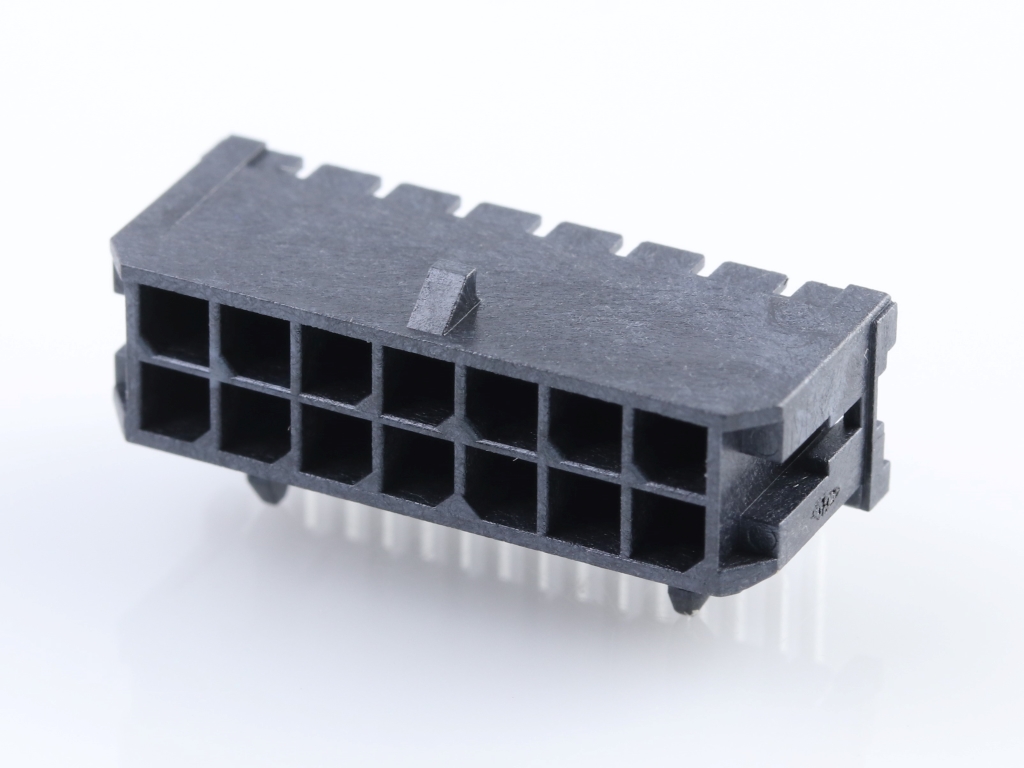

	Molex 43045-1401	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 14 Circuits, with Snap-in Plastic Peg PCB Lock, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 87831-1420	2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, Shrouded, 14 Circuits, 0.38µm Gold (Au) Plating, 2.50mm Tail Length, Dual Side Slots, Dual Friction Locks, Center Polarization, Tube
	Molex 90120-0764	2.54mm Pitch C-Grid III Header, Single Row, Vertical, 4 Circuits, 0.38µm Gold (Au) Selective Plating
	Molex 90131-0123	2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 6 Circuits, Tin (Sn) Plating

Product Change Notice

Effective Date	Description of Change	Download
07/18/2022	510809 - Change to product. current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward	Download
02/14/2022	511607 - Retraction of PCN 510948. This PCN is a retraction/ recall of PCN 510809 communicated on 1/18/22 for "current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward." the reason for retraction is that part numbers that did not contain the drain hole option were included in the impacted parts list used to create pcn 510809 a new pcn will be created and customers will be notified	Download
12/24/2018	506262 - Capacity Change or Tool Replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
02/01/2016	GCM 10708360 - Supplier Change. Molex will be changing the pre-plated flat stock, and adding an additional supplier. This change only affects parts made in Lincoln (3104) and Nogales (3105). The current pre-plated flat stock will change from bright tin over copper to reflowed tin over copper plating. In addition, we will also be changing the post plated terminal used in the 5566, 30069, & 43588 vertical headers to the same pre-plated reflowed tin over copper plating. If post plated headers are desired, alternative part numbers are available with matte tin over nickel plating.	Download
01/19/2015	GCM 10653987 - Supplier Change.	Download
