200453-0004

Heilind Number:	MOL200453-0004
Manufacturer:	Molex
Manufacturer Number:	200453-0004
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Single Row, UL 94V-0, Low-Halogen, 4 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 200453-0004
Color:	Black
Series:	200453 - Mini-Fit TPA2
Connector Type:	Mini-Fit TPA2
Gender:	Receptacle
Housing Material:	Nylon
Number of Contacts:	4
Number of Rows:	1
Pitch:	4.2 mm
Material:	Nylon
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	2004530004
SKU:	MOL200453-0004

Detailed Description

The Mini-Fit TPA2 Receptacle Housing, featuring a 4.20mm pitch, is a single-row connector designed for power applications. With UL 94V-0 and low-halogen certifications, it ensures safety and reliability in various environments. Constructed from black nylon, this housing accommodates 4 circuits and is polarized for secure mating. Suitable for both wire-to-wire and wire-to-board connections, it offers versatility in usage. Operating efficiently in temperatures ranging from -40 to 105 °C, this connector is RoHS compliant, making it an environmentally friendly choice for your projects. With its durable construction and stringent quality standards, the Mini-Fit TPA2 is the ideal solution for your power connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 172256-4104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Natural, Glow-Wire Capable
	Molex 172708-0004	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 4 Circuits
	Molex 172708-0008	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits
	Molex 172708-0010	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits

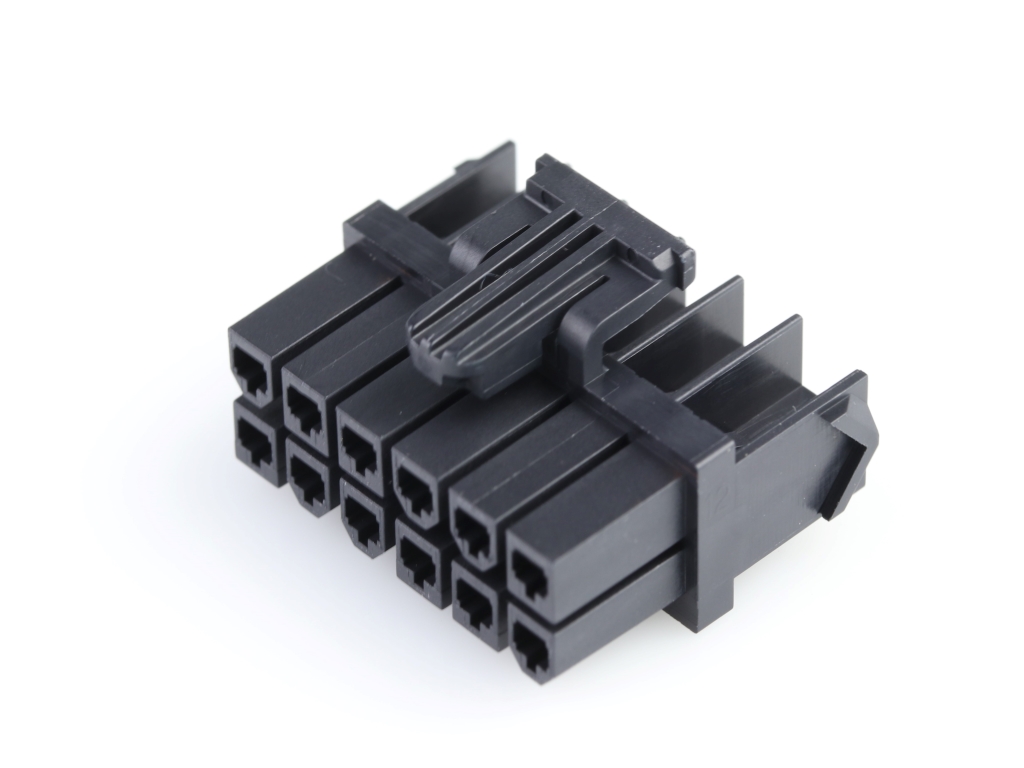

	Molex 172708-0012	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 12 Circuits
