172256-4104

Heilind Number:	MOL172256-4104
Manufacturer:	Molex
Manufacturer Number:	172256-4104
Datasheet:	Drawing
ECAD Model:

Description:

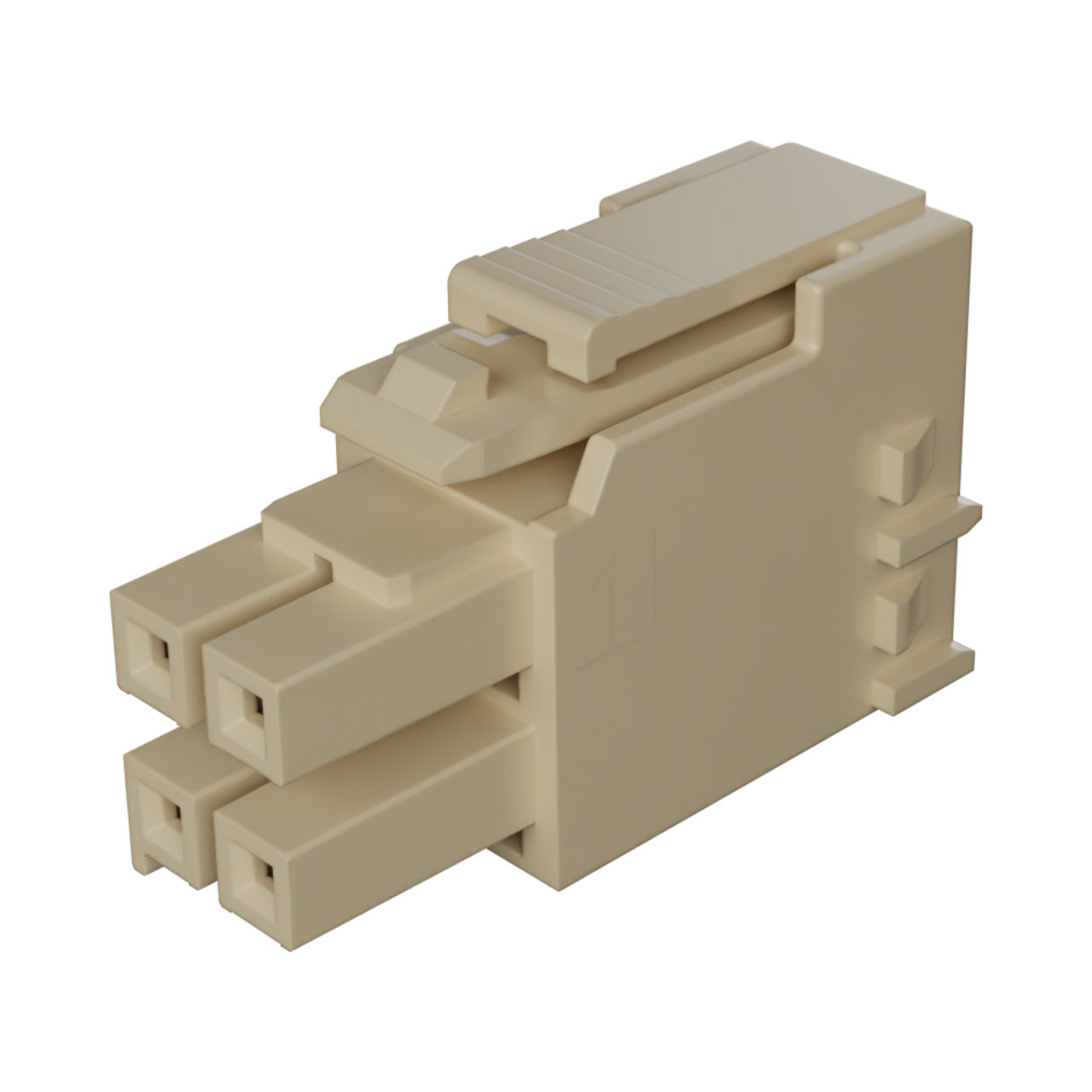

Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Natural, Glow-Wire Capable

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172256-4104
Color:	Natural
Series:	172256
Connector Type:	Ultra-Fit
Gender:	Receptacle
Number of Contacts:	4
Number of Rows:	1
Pitch:	3.5 mm
Material:	Nylon
Keying:	Yes
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board
Mates With:	Ultra-Fit Vertical Header Link:1722862104\|Link:1722862204\| Link:1722862304\|Link:1722872104\|Link:1722872204\|Link:1722872304 <, br>, Ultra-Fit Right Angle Header Link:1723102104\|Link:1723102204\| Link:1723102304
Termination Pitch:	3.5 mm
Glow Wire Capable:	Yes
Lock to Mating Part:	Yes
Product Name:	Ultra-Fit
Part Aliases:	1722564104
SKU:	MOL172256-4104

Detailed Description

Introducing the Ultra-Fit Tangless Receptacle Housing, a versatile solution for your power connector needs. With a pitch of 3.50mm and featuring a single row design, this housing accommodates 4 circuits with ease. Constructed from durable nylon material in a natural color, it is also glow-wire capable for added safety. The housing is polarized to mate, ensuring proper alignment, and features a keying option. Operating in a wide temperature range from -40 to 105 °C, it is suitable for various environments. With RoHS compliance and lock-to-mating part functionality, the Ultra-Fit is a reliable choice for your wire-to-board connector system. Available in stock, it is part of the Fit Family Power Connectors, offering superior performance in power applications.

Frequently Bought Together

Product	Part #	Description	Stock

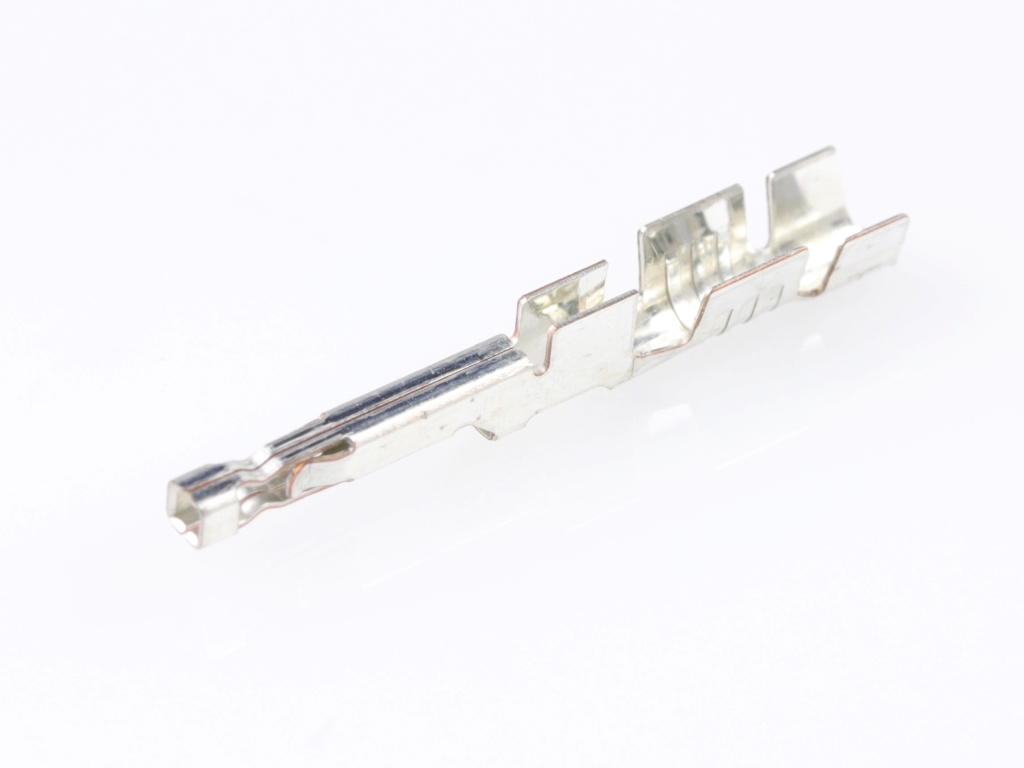

	Molex 172253-7123	Ultra-Fit Tangless Crimp Terminal, Female, Tin (Sn) Plating, 20-22 AWG
	Molex 172256-3102	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 2 Circuits, Black, Glow-Wire Capable
	Molex 172256-3104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable
	Molex 172258-3104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable
	Molex 172258-4104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 4 Circuits, Natural, Glow-Wire Capable
	Molex 172264-3002	Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 2 Circuits, Black
	Molex 172264-4002	Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 2 Circuits, Natural
	Molex 172708-0006	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits
	Molex 172708-0008	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits
	Molex 172708-0010	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits
	Molex 172709-0001	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 1 Circuit, White
	Molex 172709-0006	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 6 Circuits, White

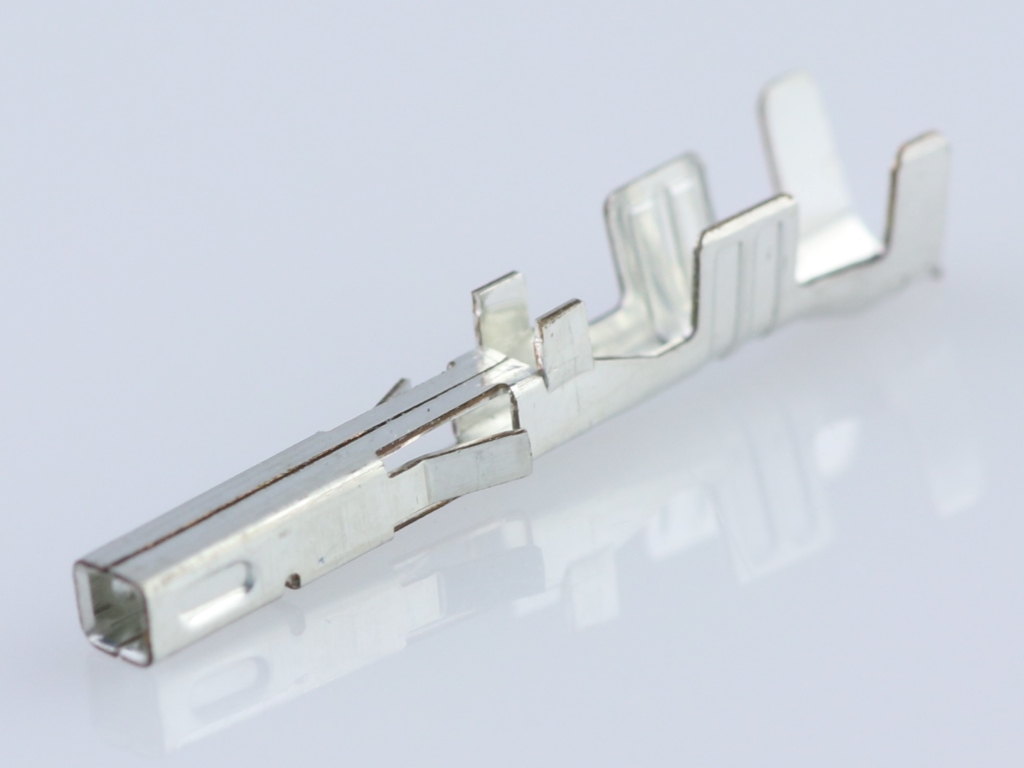

	Molex 172718-4121	Mini-Fit TPA2 Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 18-20 AWG, 2.10-2.85mm Insulation Diameter, Reel
