172708-0004

Heilind Number:	MOL172708-0004
Manufacturer:	Molex
Manufacturer Number:	172708-0004
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 4 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172708-0004
Color:	Black
Series:	172708 - Mini-Fit TPA2
Connector Type:	Mini-Fit TPA2
Gender:	Receptacle
Housing Material:	Nylon
Number of Contacts:	4
Number of Rows:	2
Pitch:	4.2 mm
Material:	Nylon
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	1727080004
SKU:	MOL172708-0004

Detailed Description

Introducing the Mini-Fit TPA2 Receptacle Housing, a crucial component for your power circuit applications. This black housing, constructed from UL 94V-0 rated nylon, ensures both durability and safety. With a low-halogen design, it meets environmental standards while accommodating 4 circuits with a 4.2mm pitch in a dual-row configuration. Engineered for reliable wire to wire or wire to board connections, this connector features a polarized mating system and a secure locking mechanism. Operating flawlessly in temperatures ranging from -40 to 105°C, it guarantees performance in diverse environments. RoHS compliant and part of the Fit Families lineup, the 172708-0004 is a must-have for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 172256-3105	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 5 Circuits, Black, Glow-Wire Capable
	Molex 172258-3104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Dual Row, 4 Circuits, Black, Glow-Wire Capable

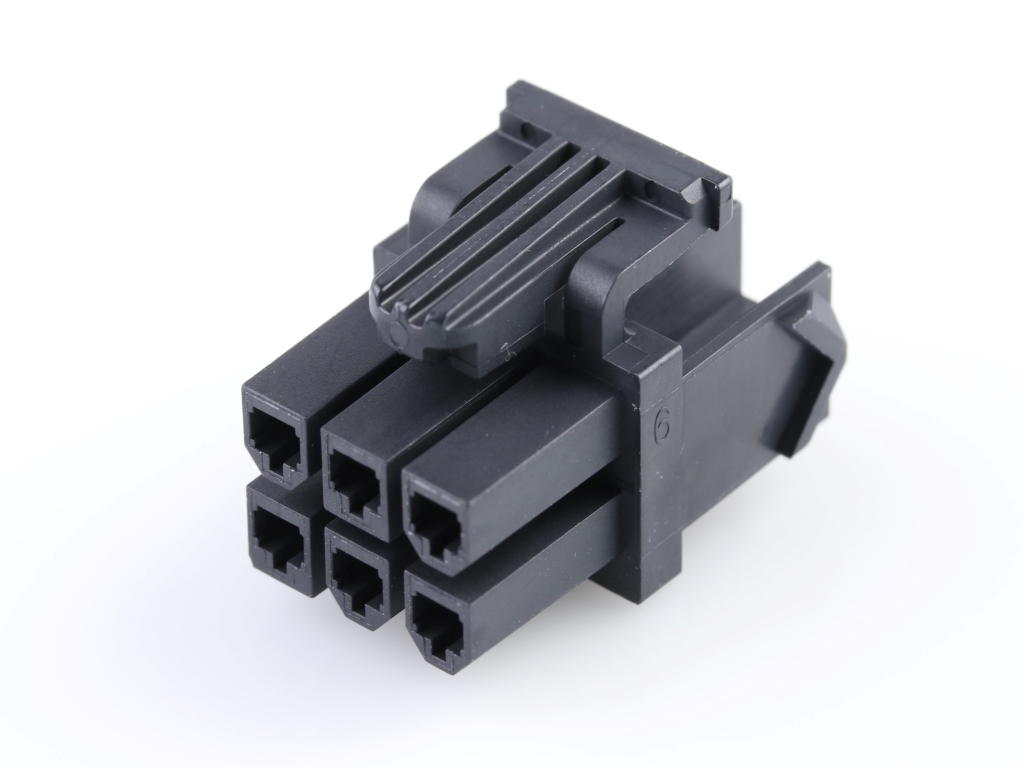

	Molex 172708-0006	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 6 Circuits
	Molex 172708-0008	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 8 Circuits
	Molex 172708-0010	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits

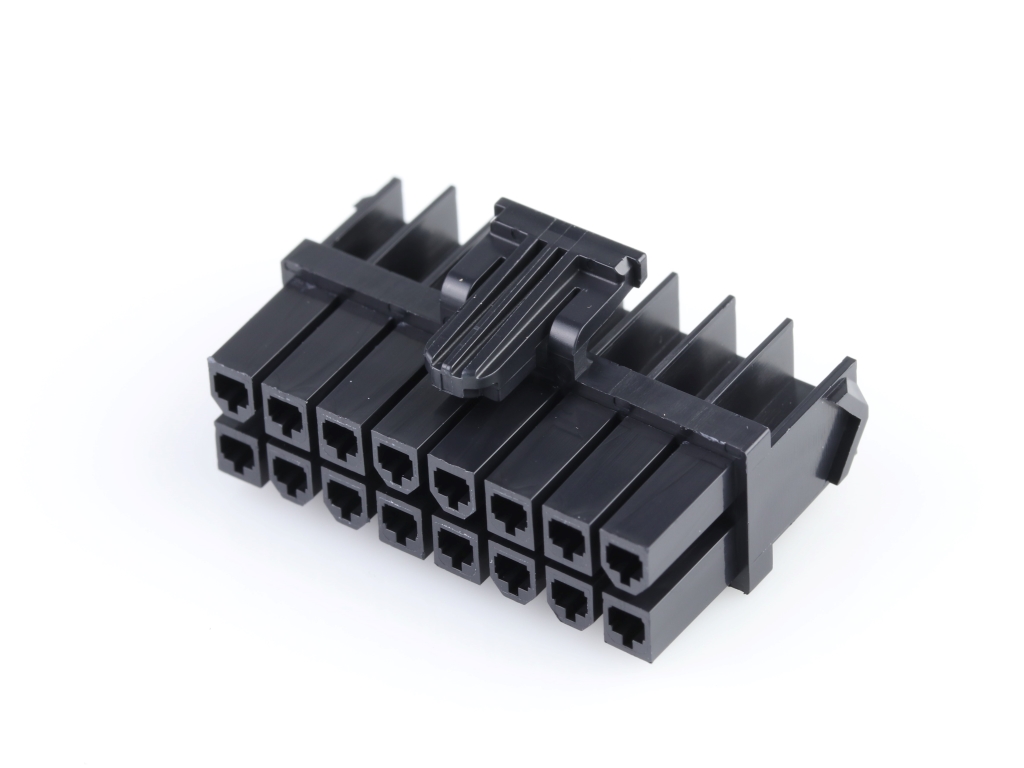

	Molex 172708-0016	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 16 Circuits

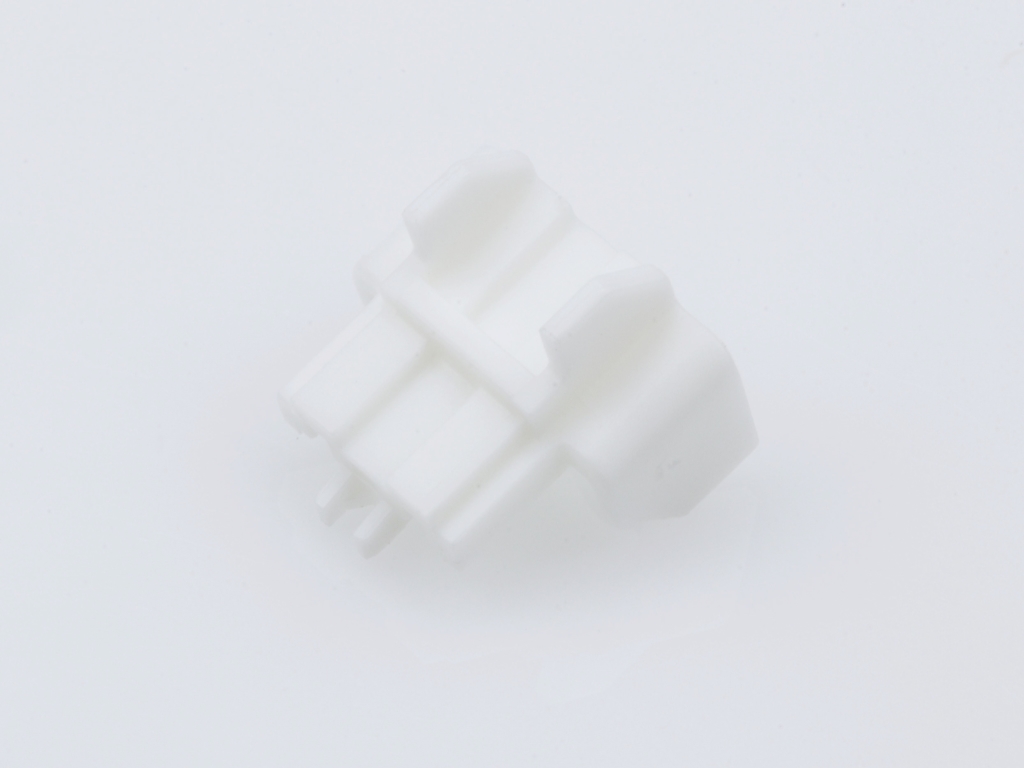

	Molex 172709-0001	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 1 Circuit, White
	Molex 172709-0002	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 2 Circuits, White
	Molex 172709-0003	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 3 Circuits, White
	Molex 172709-0004	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 4 Circuits, White
	Molex 172709-0005	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 5 Circuits, White
	Molex 172718-5121	Mini-Fit TPA2 Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 22-24 AWG, 1.07-1.65mm Insulation Diameter, Reel
	Molex 172767-0004	Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 4 Circuits, Panel Mount

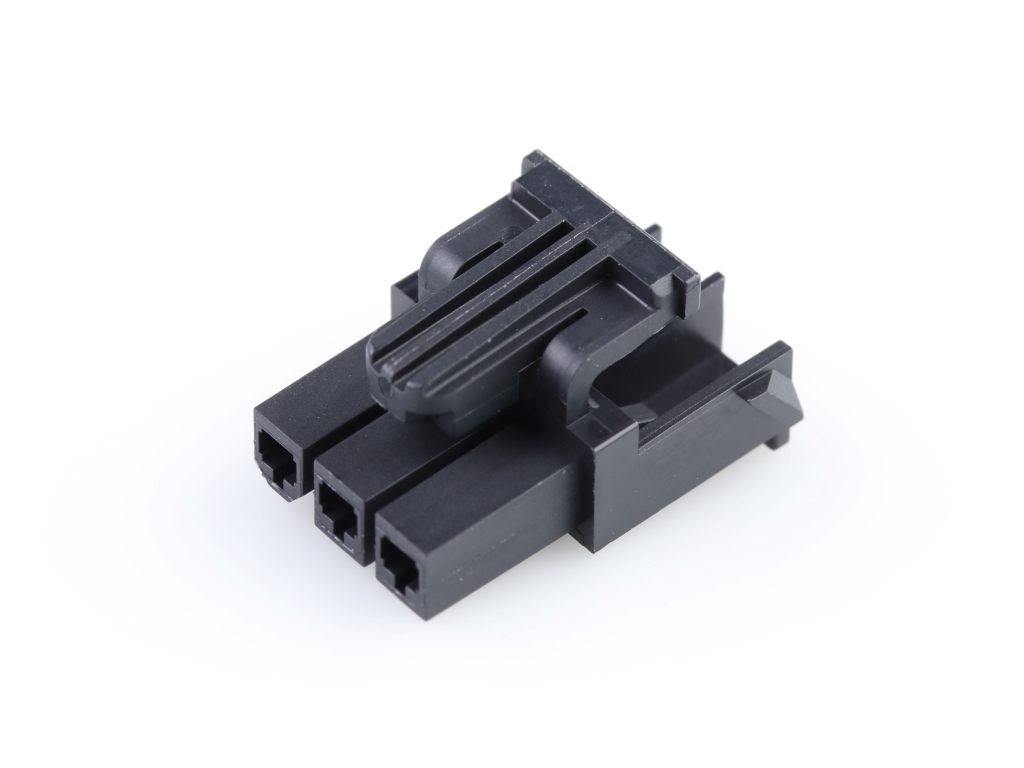

	Molex 200453-0003	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Single Row, UL 94V-0, Low-Halogen, 3 Circuits
