| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19139-0011 |
| Series: | 19139 - Avikrimp |
| Connector Type: | Avikrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | Nylon (PA) |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 3.56 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0191390011 AA-834-06 |
| SKU: | MOL19139-0011 |
19139-0011
| Heilind Number: | MOL19139-0011 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19139-0011 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Avikrimp Block Spade Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Width 7.39mm
More >>Specifications
Detailed Description
Introducing the 19139-0011 Avikrimp Block Spade Terminal, a reliable and versatile connector for 18-22 AWG wires. With a tin contact plating and a voltage rating of 600 V, this terminal ensures efficient conductivity and safety in various applications. Its crimp or compression termination method, along with a nylon insulation material, guarantees secure and durable wire connections. Certified by LR18689 and E32244, it meets stringent quality standards. The closed barrel design accommodates wire sizes ranging from 22 AWG to 18 AWG, making it suitable for a wide range of projects. With a compact width of 7.39mm and a stud size of 6 (M3.5), this terminal is easy to install and offers space-saving benefits. RoHS compliant and in stock for immediate shipping, it is the perfect choice for your crimp terminal needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19039-0002 | Avikrimp Snap Plug Receptacle for 18-22 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm |  |
 | Molex 19069-0037 | Krimptite Ring Tongue Terminal for 18-22 AWG Wire | |

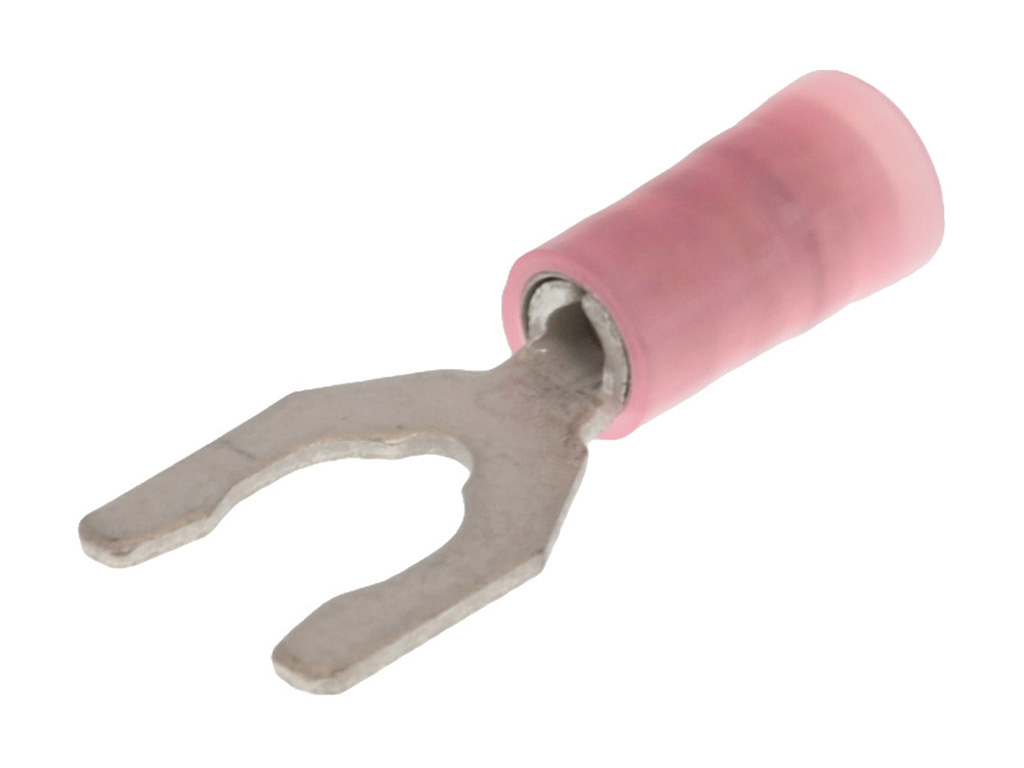

 | Molex 19115-0014 | Avikrimp Snap Spade Terminal for 18-22 AWG Wire | |
 | Molex 19115-0031 | Avikrimp Snap Spade Terminal for 14-16 AWG Wire | |

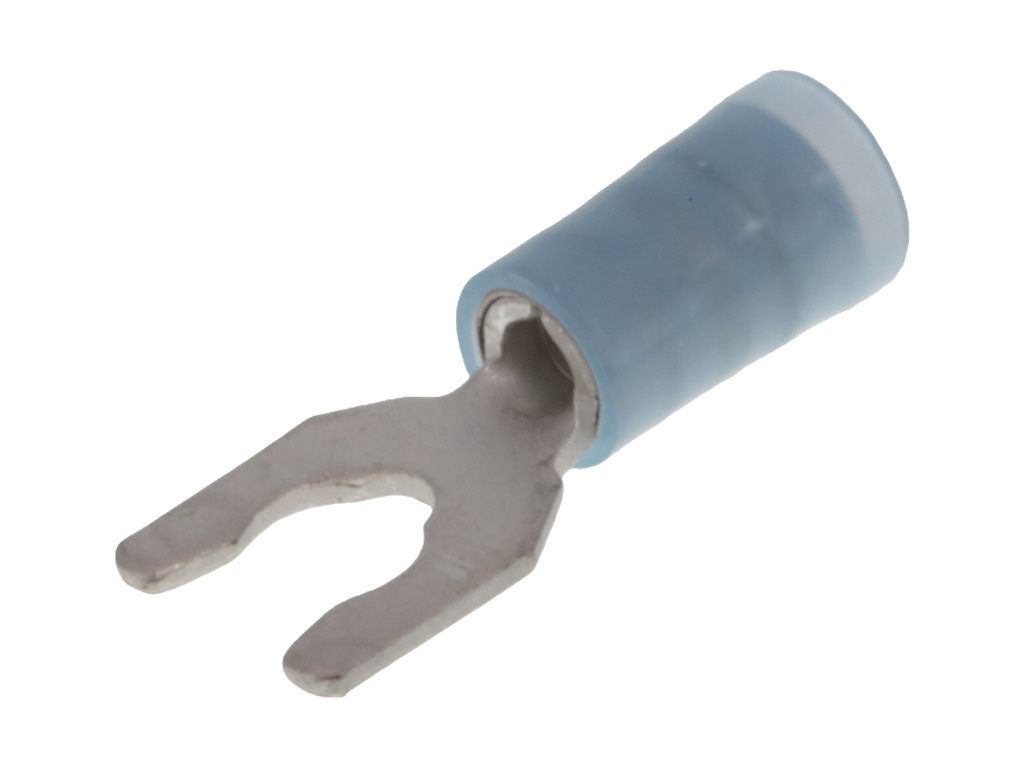

 | Molex 19115-0079 | Avikrimp Snap Spade Terminal for 14-16 AWG Wire | |

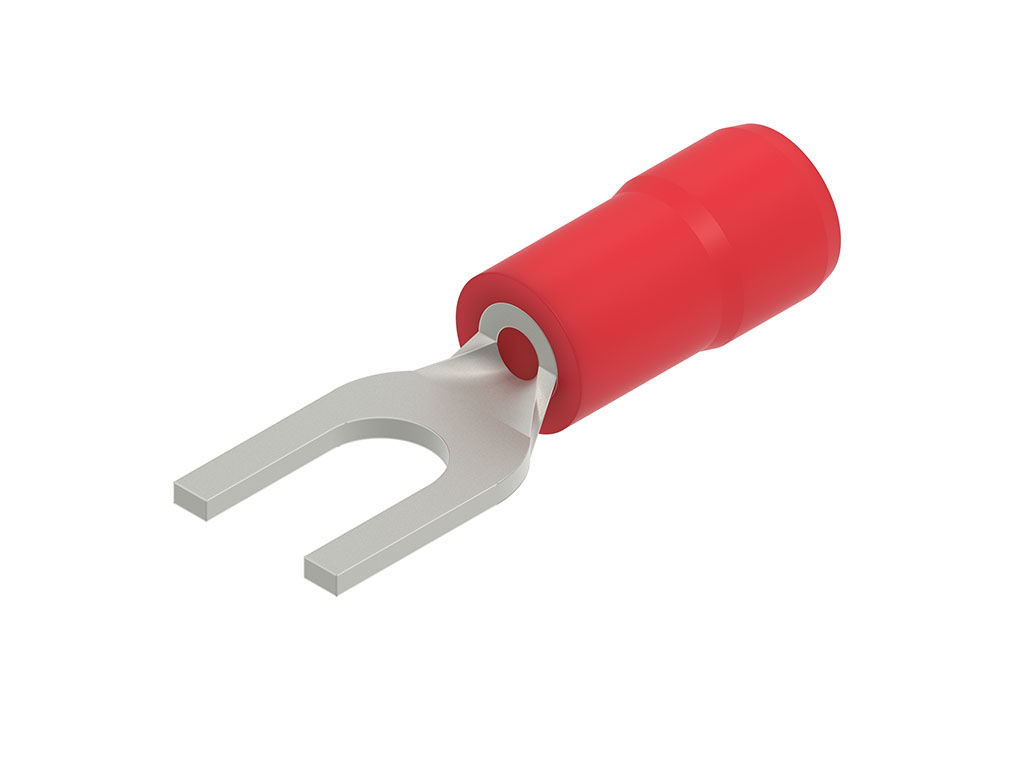

 | Molex 19139-0019 | Avikrimp Block Spade Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Width 6.22mm, Mylar Tape Carrier | |
