| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19154-0004 |
| Color: | Red |
| Series: | 19154 - Butt - InsulKrimp |
| Connector Type: | Butt, InsulKrimp |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | PVC |
| Insulation Material: | PVC |
| Maximum Voltage: | 600 V |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.68 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0191540004 A-245X |
| SKU: | MOL19154-0004 |
19154-0004
Specifications
Detailed Description
The 19154-0004 is a high-quality InsulKrimp Butt Splice designed for 18-22 AWG wires, featuring a durable red PVC insulation. With a tin-plated copper construction, this connector ensures reliable conductivity with a maximum voltage rating of 600 V, making it ideal for various electrical applications. It is UL and CSA certified, guaranteeing safety and performance standards compliance. The closed barrel design accommodates wire sizes ranging from 22 AWG to 18 AWG, with a wire insulation diameter of 3.68 mm. Conveniently packaged in a bag, this Butt Splice is RoHS compliant, further highlighting its environmental responsibility. Perfect for professionals and DIY enthusiasts alike, the 19154-0004 is a must-have for secure and efficient wire connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

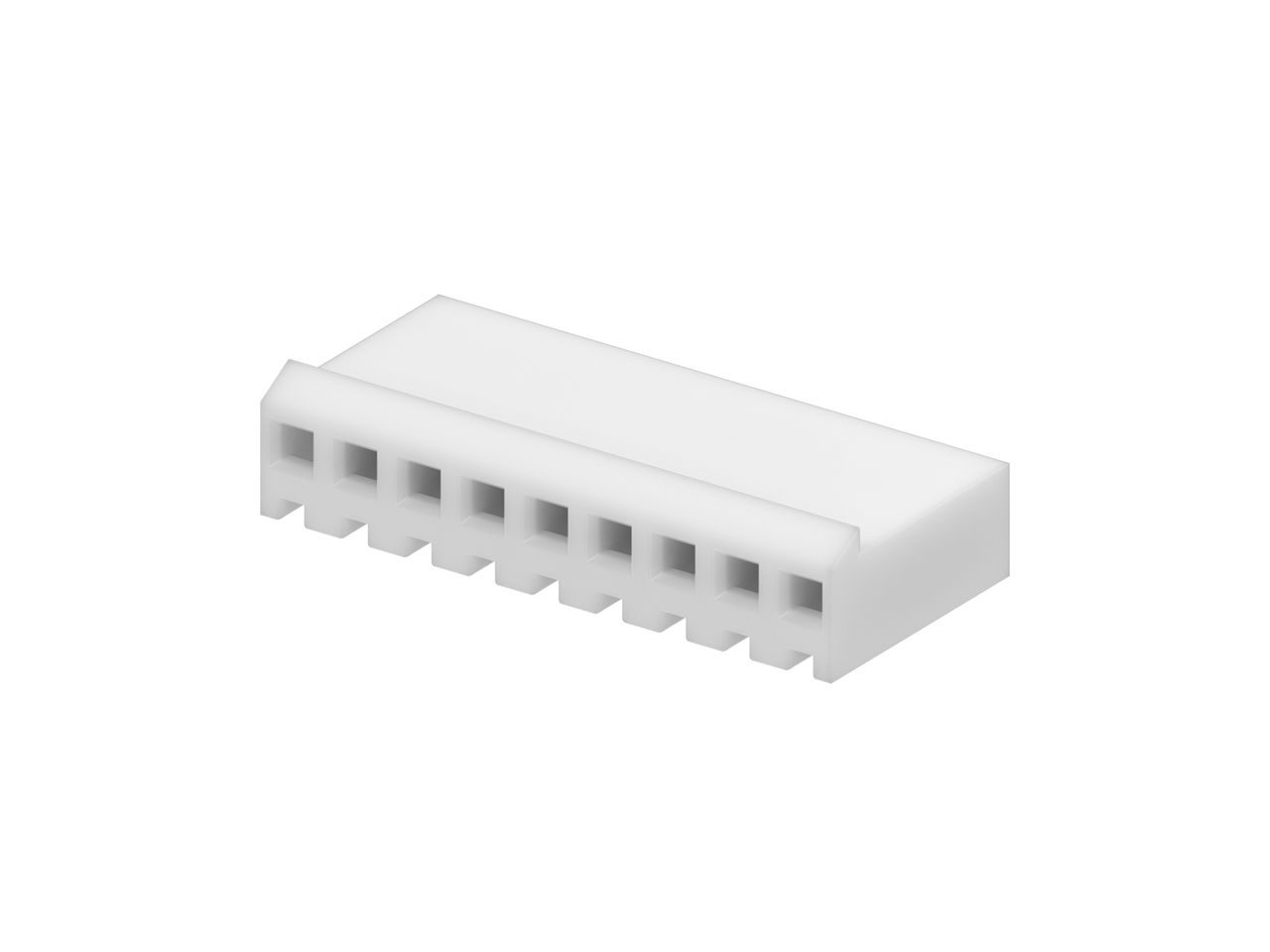

 | Molex 09-50-3091 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 9 Circuits, Natural |  |
 | Molex 16-02-0103 | SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact | |
 | Molex 19004-0005 | InsulKrimp Fully Insulated Coupler, Male, for 14-16 AWG Wire, Box | |
 | Molex 19007-0040 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |

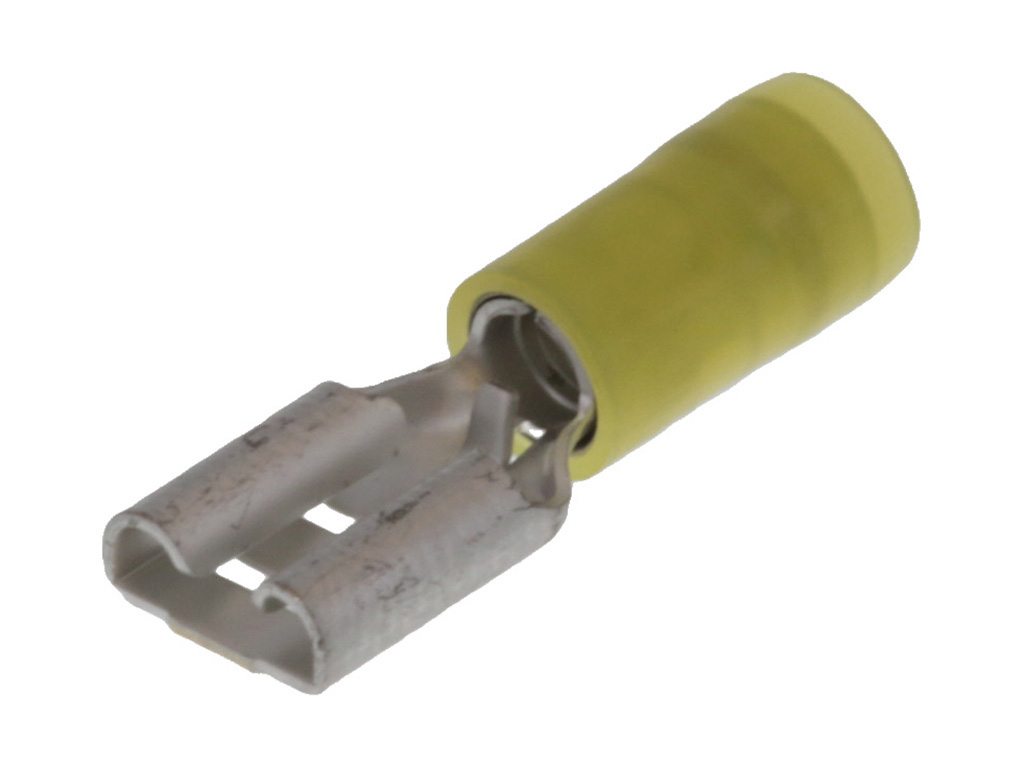

 | Molex 19019-0054 | Avikrimp Quick Disconnect, Female, for 12-14 (3.30-2.00mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
