| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19418-0016 |
| Color: | Black |
| Series: | 19418 - MX150L |
| Amperage: | 18 A |
| Connector Type: | MX150L |
| Gender: | Receptacle |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Pitch: | 5.84 mm |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0194180016 |
| SKU: | MOL19418-0016 |
19418-0016
| Heilind Number: | MOL19418-0016 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19418-0016 |
| Datasheet: | 3D Drawing |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the MX150L 2 Circuit Receptacle, a high-performance connector designed for 18-22 AWG wires. Featuring a sleek black housing and without CPA for added convenience, this receptacle is a versatile solution for power applications. With a rating of 18 A and CSA and UL certifications, it guarantees reliability in any environment. Its polarized design ensures proper mating, while its locking feature adds security. RoHS compliant and with a wide operating temperature range, from -40 to 125 °C, it's suitable for various industries. Whether for wire-to-wire or wire-to-board connections, the MX150L is the perfect choice for your project.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19221-0231 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 5/16 (M8), Tin Plated |  |
 | Molex 19417-0119 | MX150L Circuit Voiding Key for 14 | |
 | Molex 19418-0018 | MX150L 4 Circuit Receptacle for 18-22 AWG Wire, without CPA | |
 | Molex 19418-0029 | MX150L 16 Circuit Receptacle for 18-22 AWG Wire, with CPA | |
 | Molex 19419-0005 | MX150L 4 Circuit Plug for 18-22 AWG Wire | |
 | Molex 19419-0008 | MX150L 2 Circuit Plug for 18-22 AWG Wire | |
 | Molex 19420-0003 | MX150L Female Terminal for 14-16 AWG Wire, Gold Plated, Metal Strip Carrier | |

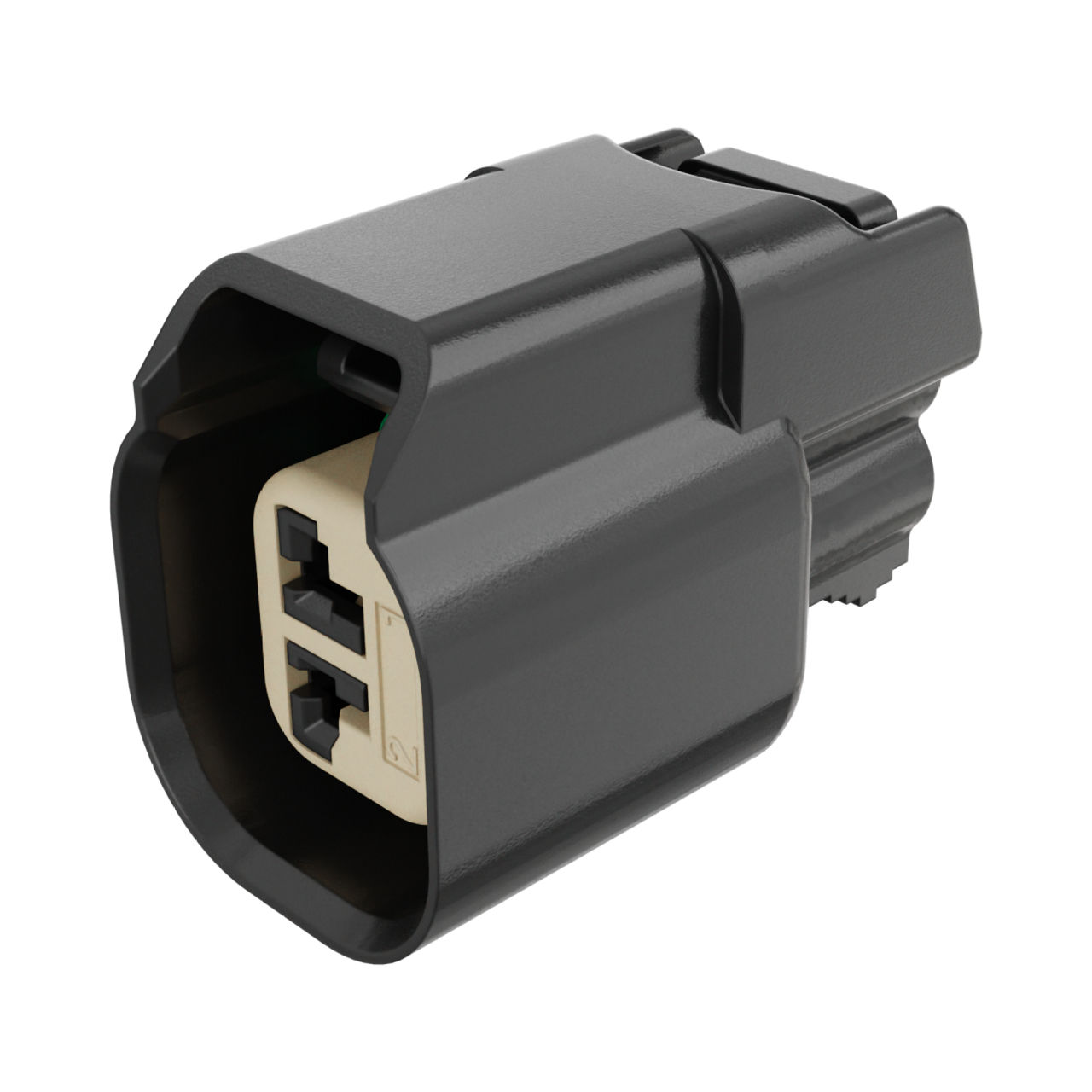

 | Molex 34062-4003 | MX150 Cable-Sealed Female Connector Assembly, Single Row, 2 Circuits, Severe Vibration Housing with Keying Option C, Black | |
 | Molex 39-01-2185 | Mini-Fit Jr. Receptacle Housing, Dual Row, 18 Circuits, UL 94V-0, Natural | |

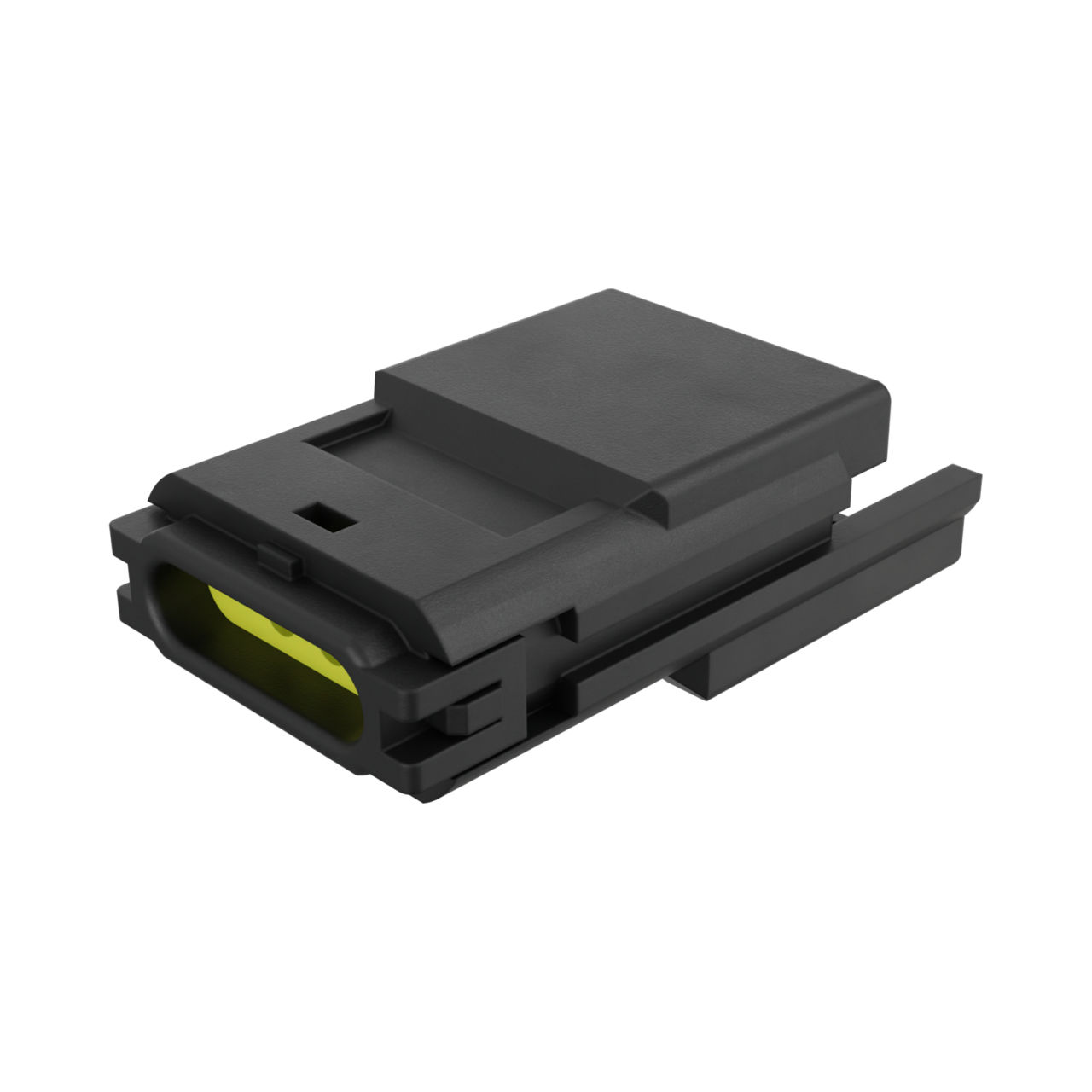

 | Molex 52116-0413 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 2 Circuits, Wide-Body Type, Black | |

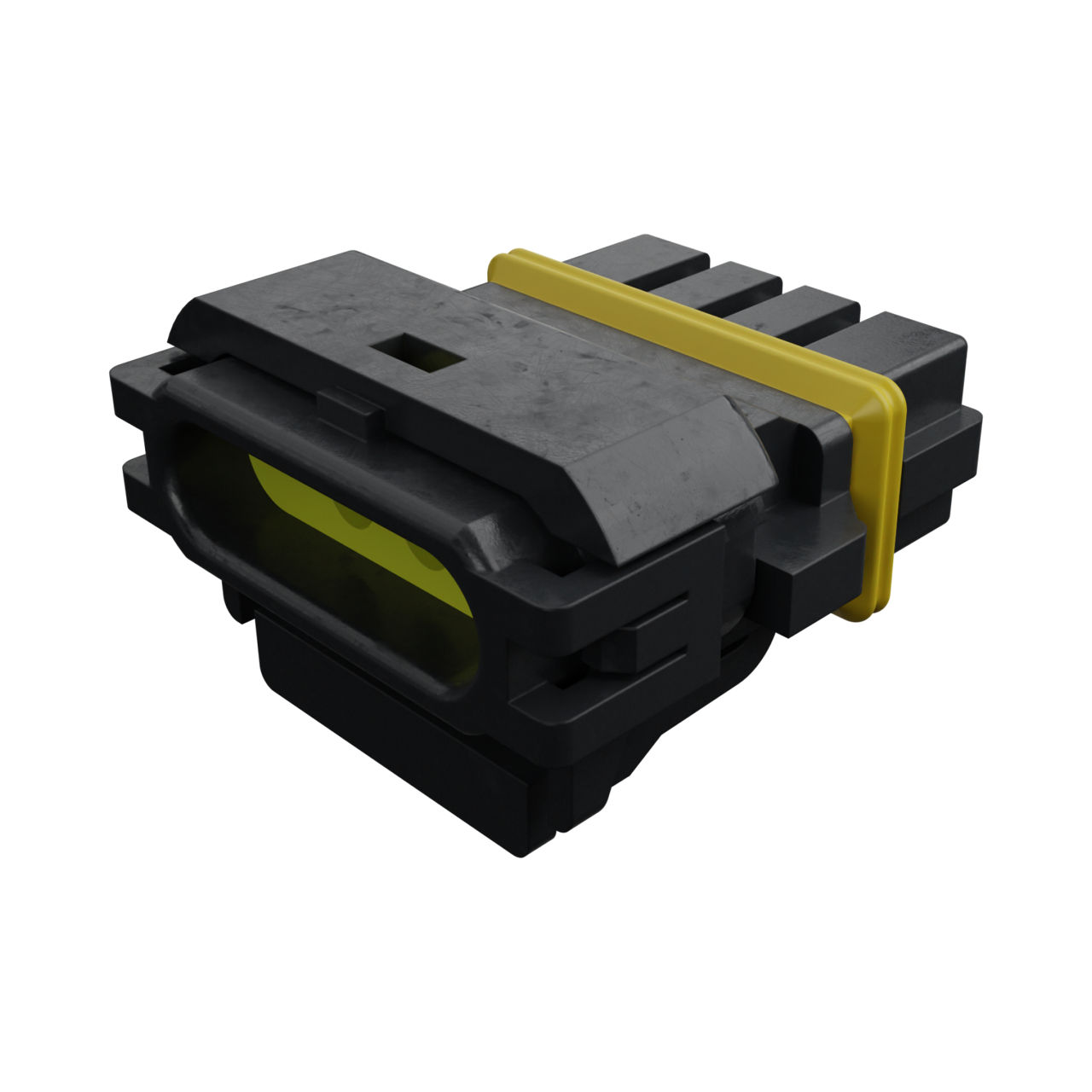

 | Molex 52117-0413 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 2 Circuits, Wide Body Type, Black | |
 | Molex 64320-1301 | CMC Wire Cap for 48 Circuits and 28 Circuits, CMC Receptacle Mat Sealed | |
 | Molex 64320-1311 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Black Coding, Mat Sealed | |
 | Molex 64320-3311 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Black Coding, Mat Sealed | |

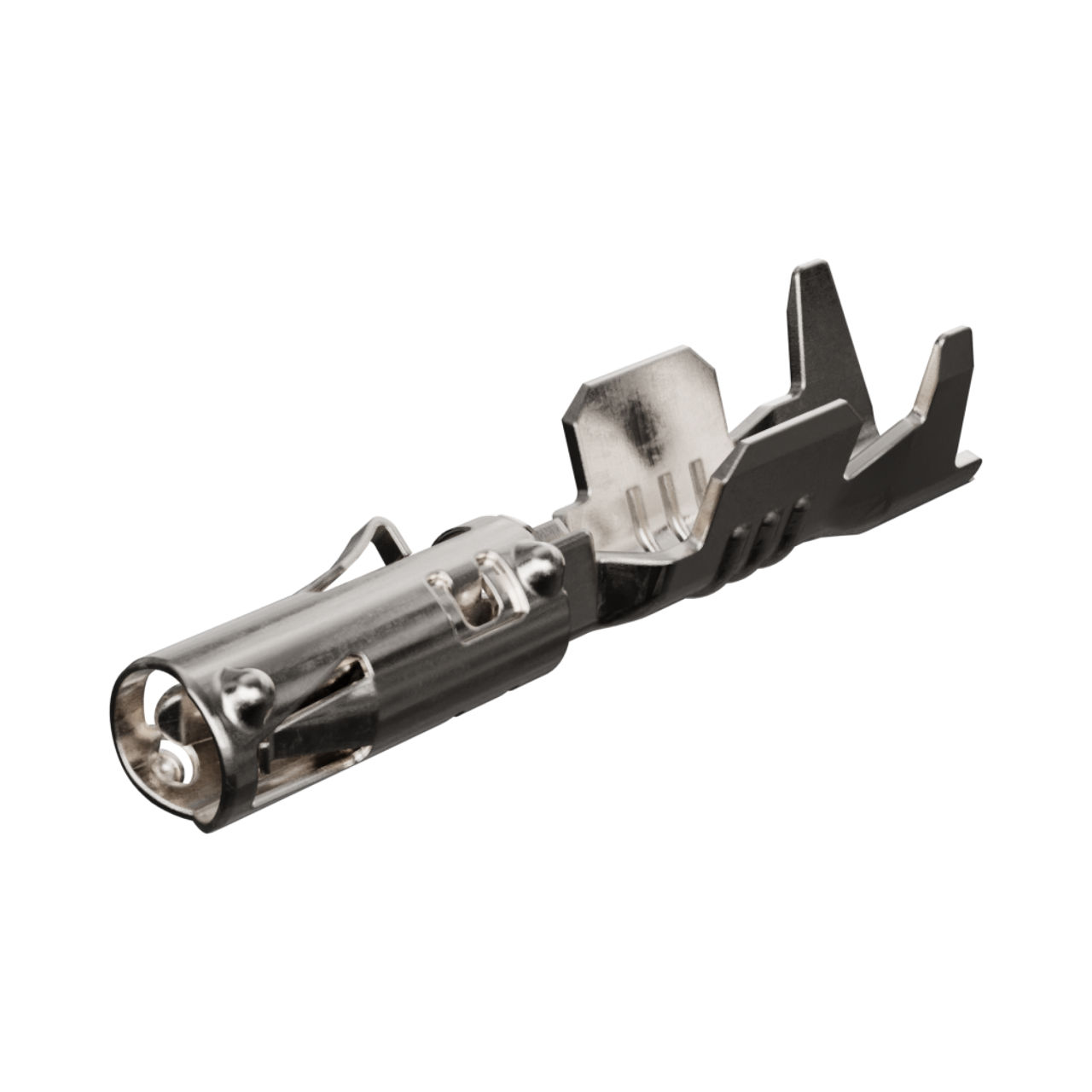

 | Molex 64323-1039 | 1.50mm CMC CP Female Terminal, Tin plated, for tab dimensions 1.5mm x 0.8mm, Wire Size > 1.0mm | |
