| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19039-0002 |
| Color: | Red |
| Series: | 19039 - Avikrimp |
| Connector Type: | Avikrimp, Snap Receptacle |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.25 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190390002 BRA-8156N |
| SKU: | MOL19039-0002 |
19039-0002
Specifications
Detailed Description

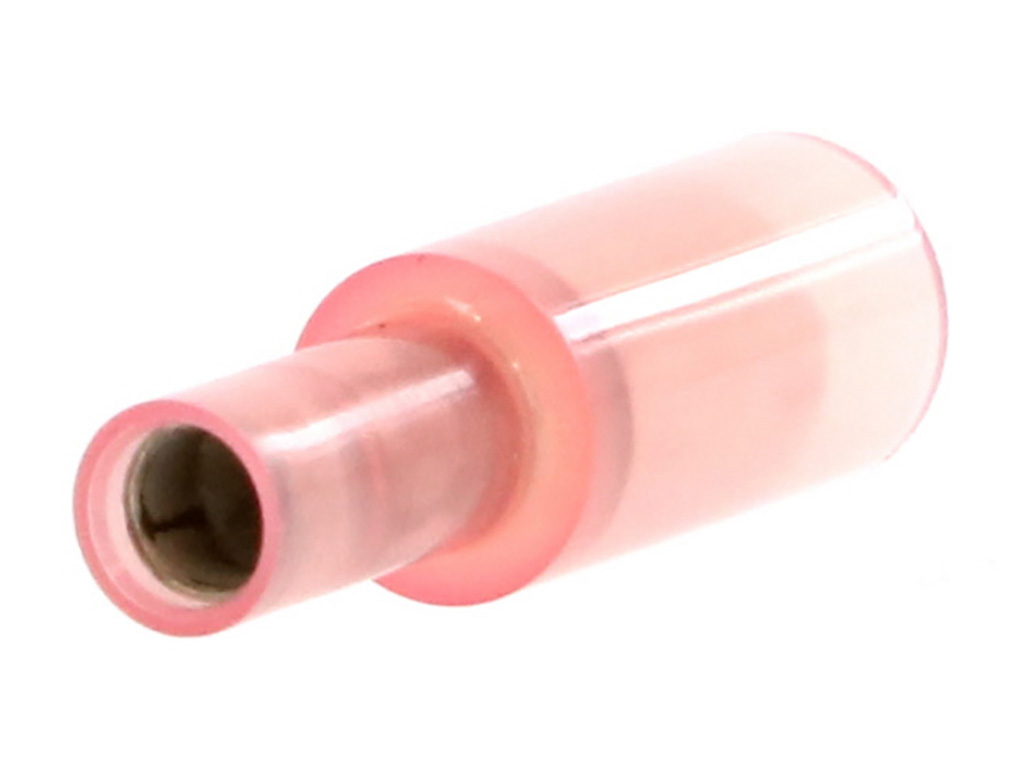

The Avikrimp Snap Plug Receptacle is a versatile connector designed for reliable and secure termination of 18-22 AWG wires. Constructed with durable nylon and featuring a brass contact, this female connector ensures excellent conductivity. With a tin contact plating and a straight orientation, it offers enhanced corrosion resistance and easy installation. Suitable for both crimp and compression termination methods, it provides flexibility in assembly. Operating in a wide temperature range from -40 to 105 °C, it is ideal for various applications. RoHS compliant and in stock for immediate shipping, this red-colored receptacle, part of the 19039 Avikrimp series, guarantees high performance and quality.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

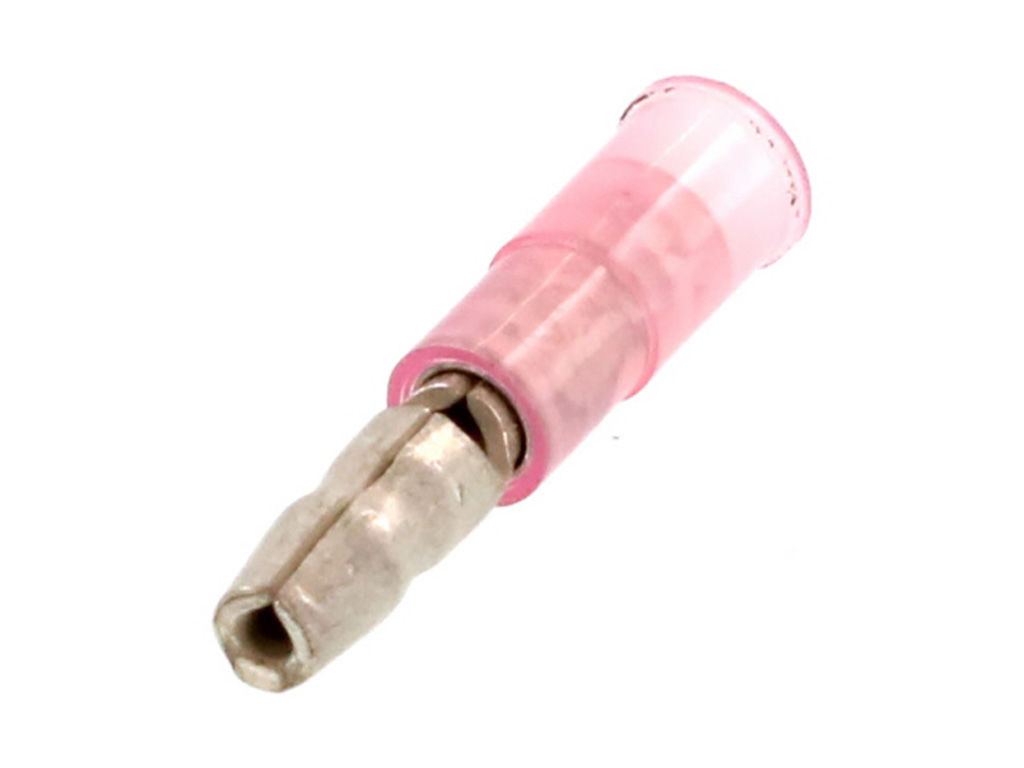

 | Molex 19035-0003 | Avikrimp Snap Plug, for 18-22 AWG Wire, Box, 22.55mm Length |  |

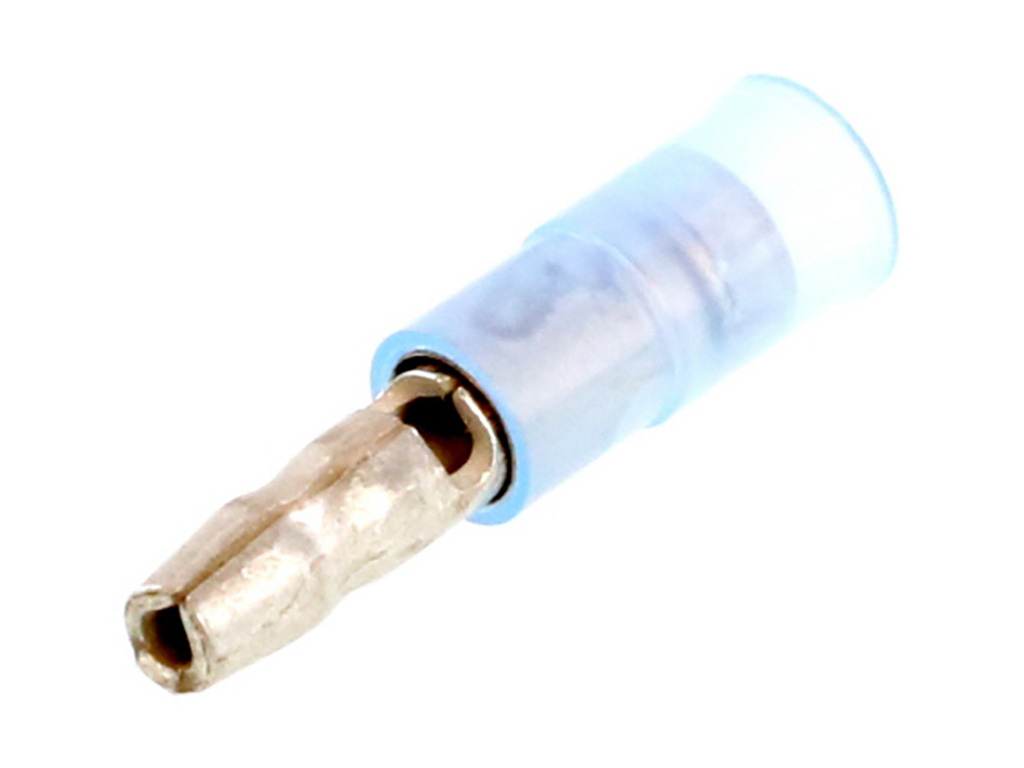

 | Molex 19035-0009 | Avikrimp Snap Plug, for 14-16 AWG Wire, Box, 22.55mm Length | |

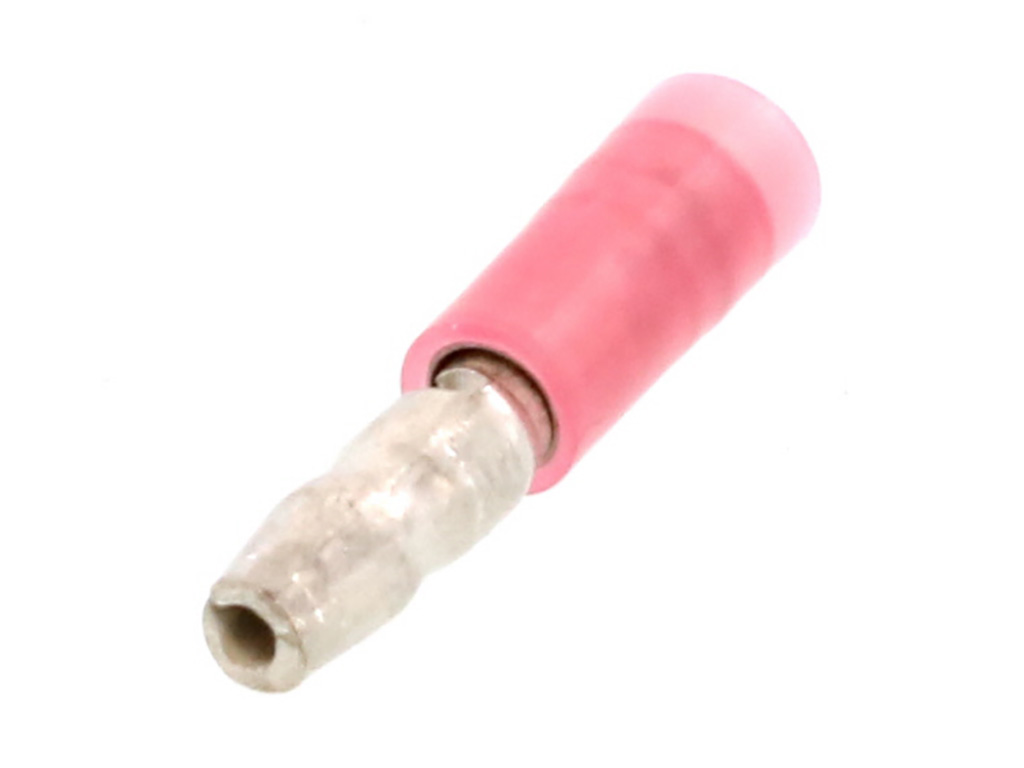

 | Molex 19036-0003 | Avikrimp Snap Plug, for 18-22 AWG Wire, Box, 22.78mm Length | |
 | Molex 19039-0007 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm | |
 | Molex 19056-0018 | RING VERSAKRIMP (A-321-10) SPM | |
 | Molex 19069-0212 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Length 19.94mm, Mylar Tape Carrier | |

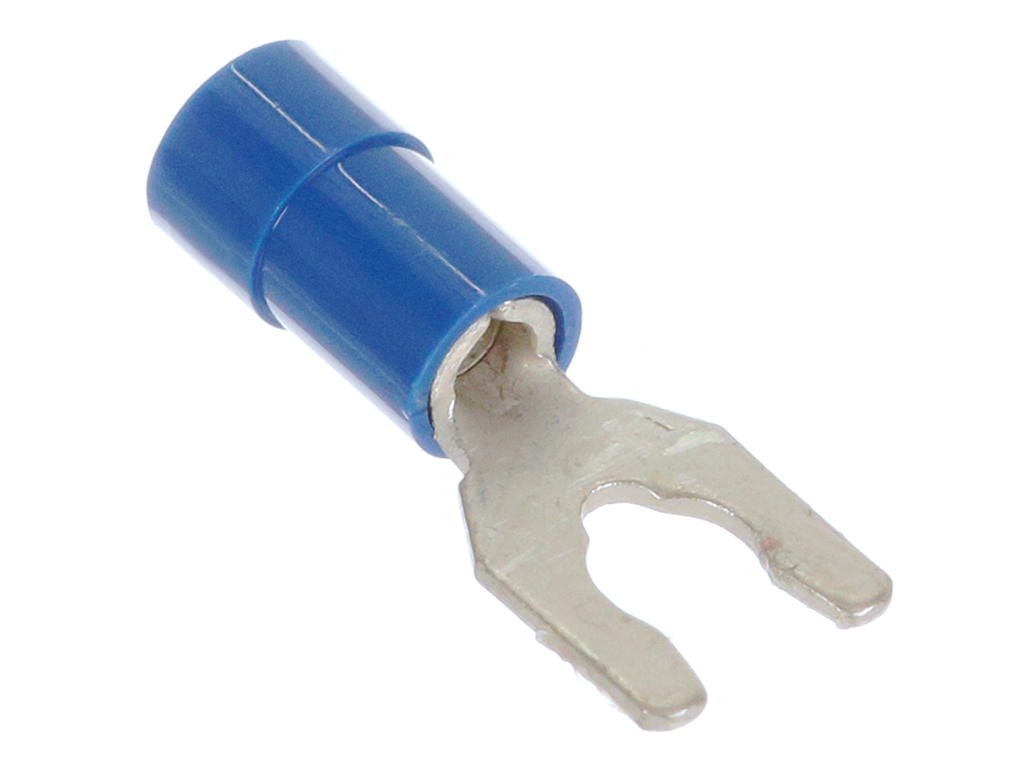

 | Molex 19099-0033 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier, Length 22.12mm, Blue | |

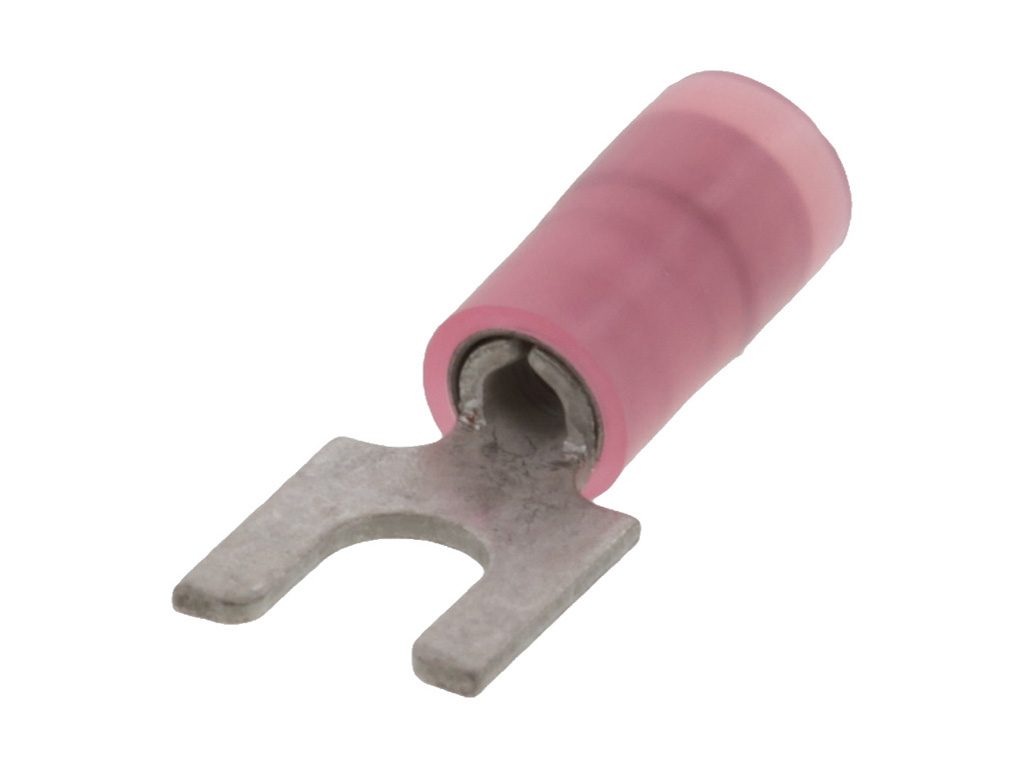

 | Molex 19139-0011 | Avikrimp Block Spade Terminal for 18-22 AWG Wire, Stud Size 6 (M3.5), Width 7.39mm | |

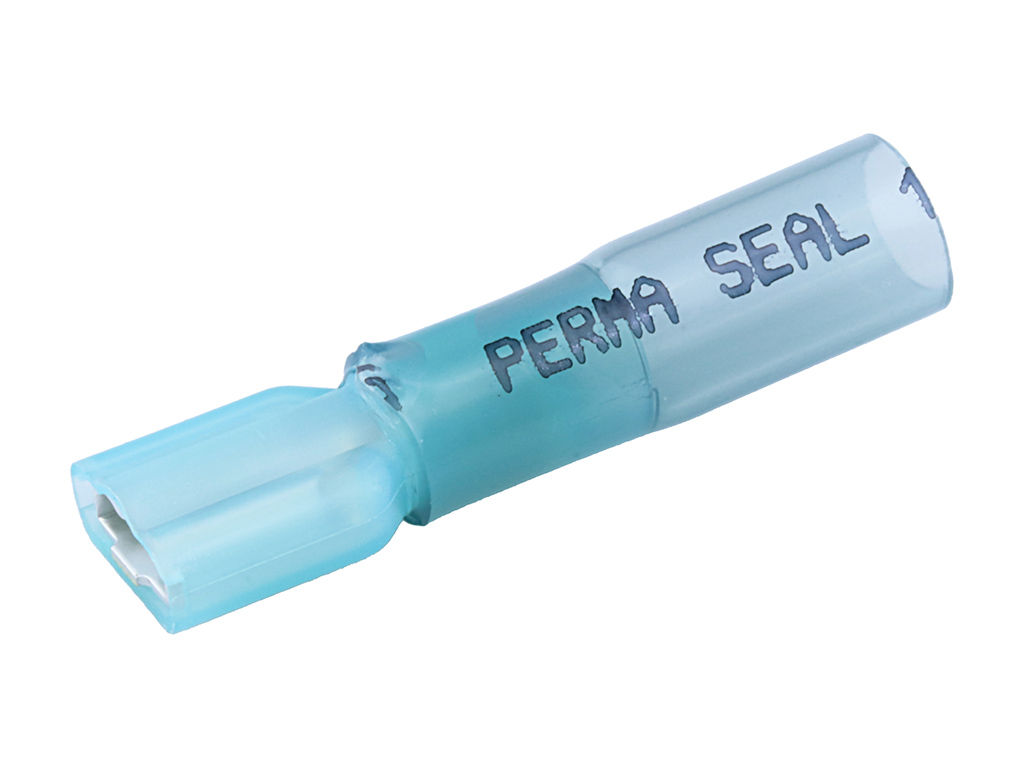

 | Molex 19164-0050 | Perma-Seal Female Quick Disconnect Receptacle for 14-16 AWG Wire, Tab Size 6.35 x 0.81mm | |
