| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19099-0033 |
| Color: | Blue |
| Series: | 19099 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 8 (M4) |
| Insulation Material: | PVC |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG |
| Wire Insulation Diameter: | 4.4 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190990033 BB-2716-08XT |
| SKU: | MOL19099-0033 |
19099-0033
Specifications
Detailed Description
Introducing the 19099-0033 InsulKrimp Snap Spade, a reliable and efficient solution for your wire termination needs. Designed for 16-14 AWG wires with a stud size of 8 (M4), this blue spade connector features a Mylar Tape Carrier for easy installation. With a length of 22.12mm, it offers a secure and stable connection. Constructed from PVC with tin plating, it ensures durability and excellent conductivity. Suitable for wire sizes 14 AWG and 16 AWG, with an insulation diameter of 4.4mm, it is perfect for a wide range of applications. RoHS compliant and in stock for immediate shipping, the 19099-0033 is the ideal choice for your crimp terminal needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19007-0004 | Flag InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm |  |
 | Molex 19007-0040 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |
 | Molex 19073-0162 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 6 (M3.5), Length 27.71mm, Mylar Tape Carrier | |
 | Molex 19099-0010 | InsulKrimp Snap Spade Terminal for 18-22 AWG Wire, Stud Size 5 (M3)-6, Mylar Tape Carrier, Red | |
 | Molex 19099-0028 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier, Blue | |

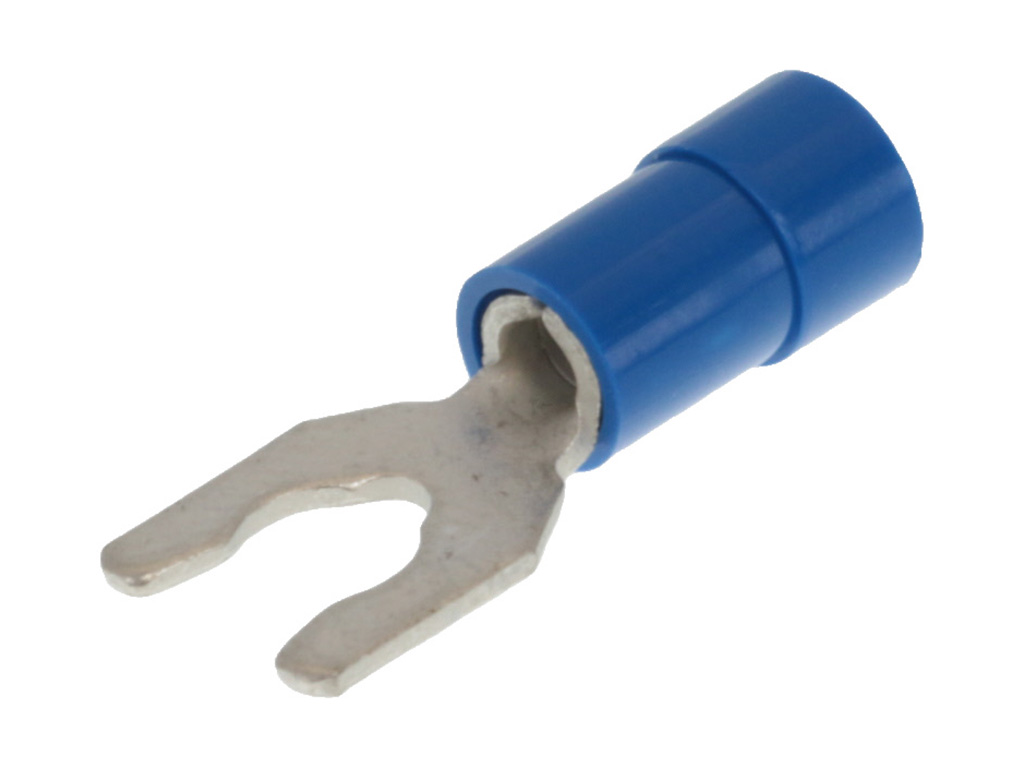

 | Molex 19099-0032 | InsulKrimp Snap Spade Terminal for 14-16 AWG Wire, Blue | |

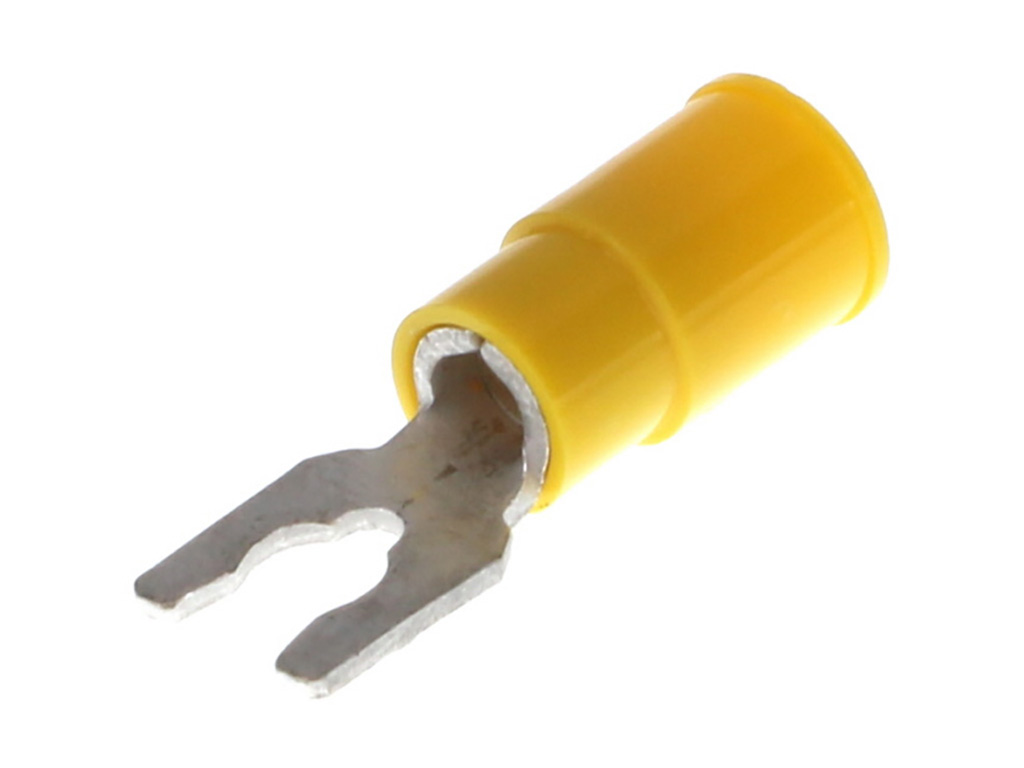

 | Molex 19099-0049 | InsulKrimp Snap Spade Terminal for 10-12 AWG Wire, Yellow | |

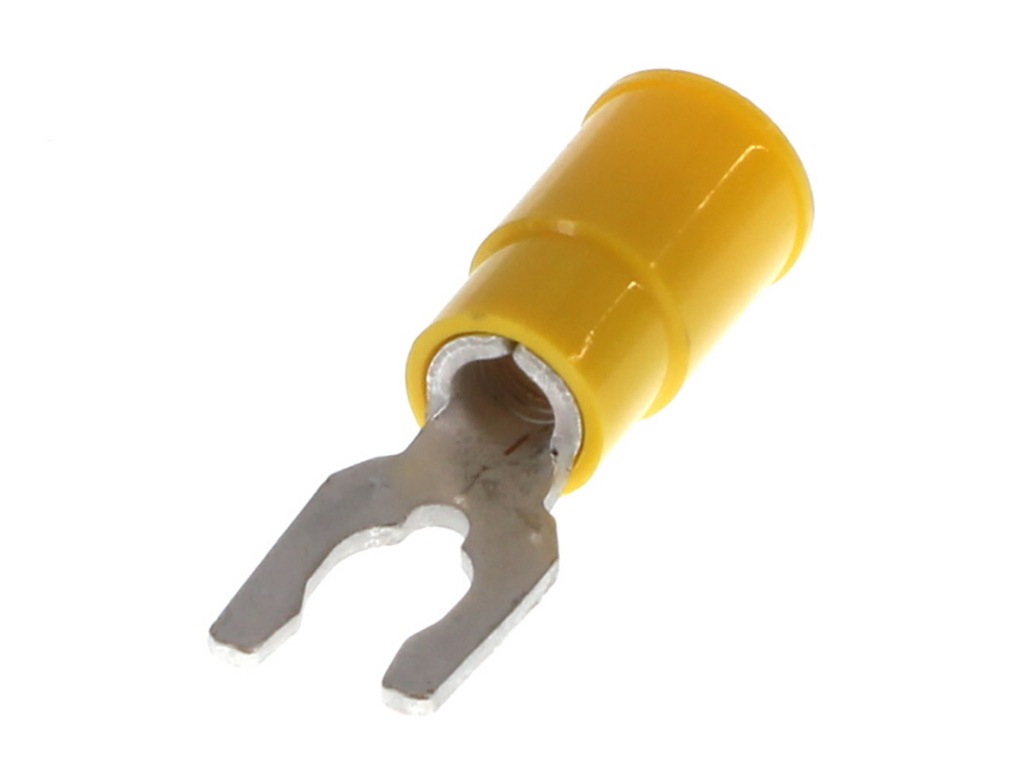

 | Molex 19099-0051 | InsulKrimp Snap Spade for 10-12 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier, Yellow | |
 | Molex 19144-0037 | InsulKrimp Spade Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19160-0012 | Closed-End Insulated Splice for 14-22 AWG Wire, Clear | |
 | Molex 19205-0001 | VersaKrimp Parallel Splice for 14-16 AWG Wire | |
 | Molex 39-00-0046 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 28-22 AWG, Reel | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19099-0033 |
| Other Names: | 0190990033 BB-2716-08XT |
