| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19036-0003 |
| Color: | Red |
| Series: | 19036 - Avikrimp |
| Connector Type: | Avikrimp, Snap Plug |
| Gender: | Male |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Material: | Copper |
| Insulation Material: | Nylon (PA) |
| Orientation: | Straight |
| Insulation Type: | Partial |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.6 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190360003 A-869 |
| SKU: | MOL19036-0003 |
19036-0003
| Heilind Number: | MOL19036-0003 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19036-0003 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
The 19036-0003 Avikrimp Snap Plug is a reliable connector designed for 18-22 AWG wires. With a durable copper construction and tin plating, it ensures secure and efficient contact. The red nylon insulation not only provides added protection but also allows for partial insulation. This straight orientation snap plug, measuring 22.78mm in length, is UL and CSA certified, guaranteeing its quality and safety. Perfect for a wide range of applications, it is RoHS compliant and offers easy installation with tin contact termination plating. Upgrade your connectivity with the 19036-0003 Avikrimp Snap Plug.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

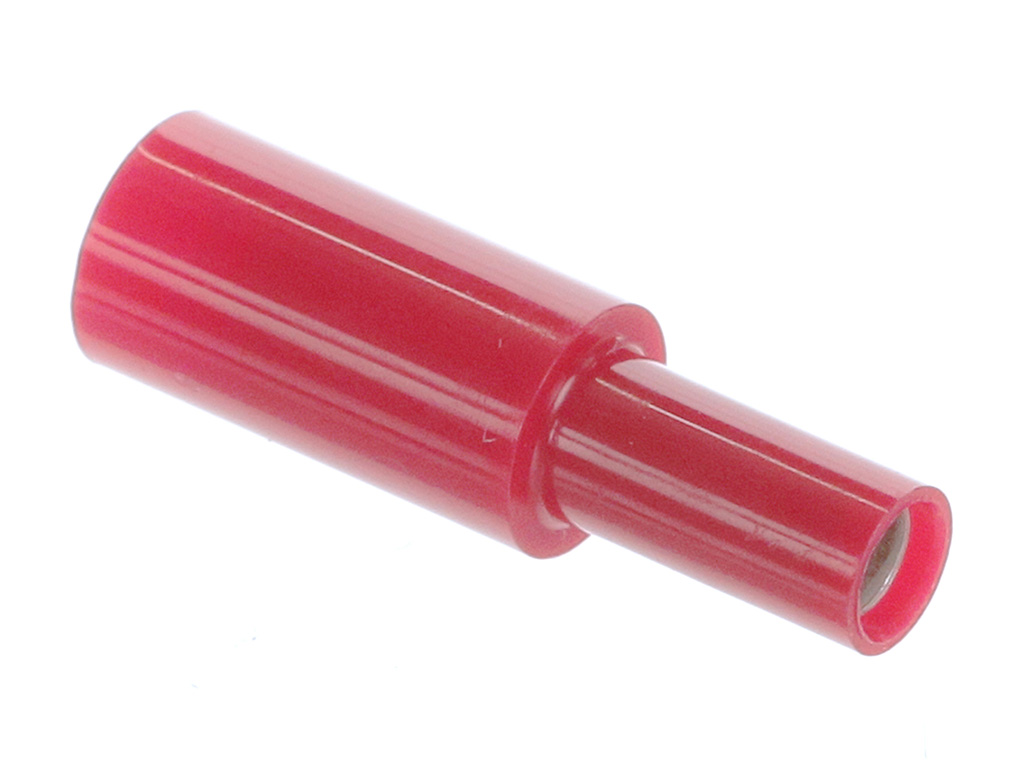

 | Molex 19039-0001 | Avikrimp Snap Plug Receptacle for 18-22 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm |  |
 | Molex 19039-0002 | Avikrimp Snap Plug Receptacle for 18-22 AWG Wire, Nylon, Fits Male Plug Diameter 3.96mm | |
 | Molex 19039-0006 | Avikrimp Snap Plug Receptacle for 14-16 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm | |
 | Molex 19071-0140 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0016 | VersaKrimp Ring Tongue Terminal for 18-22 AWG Wire | |

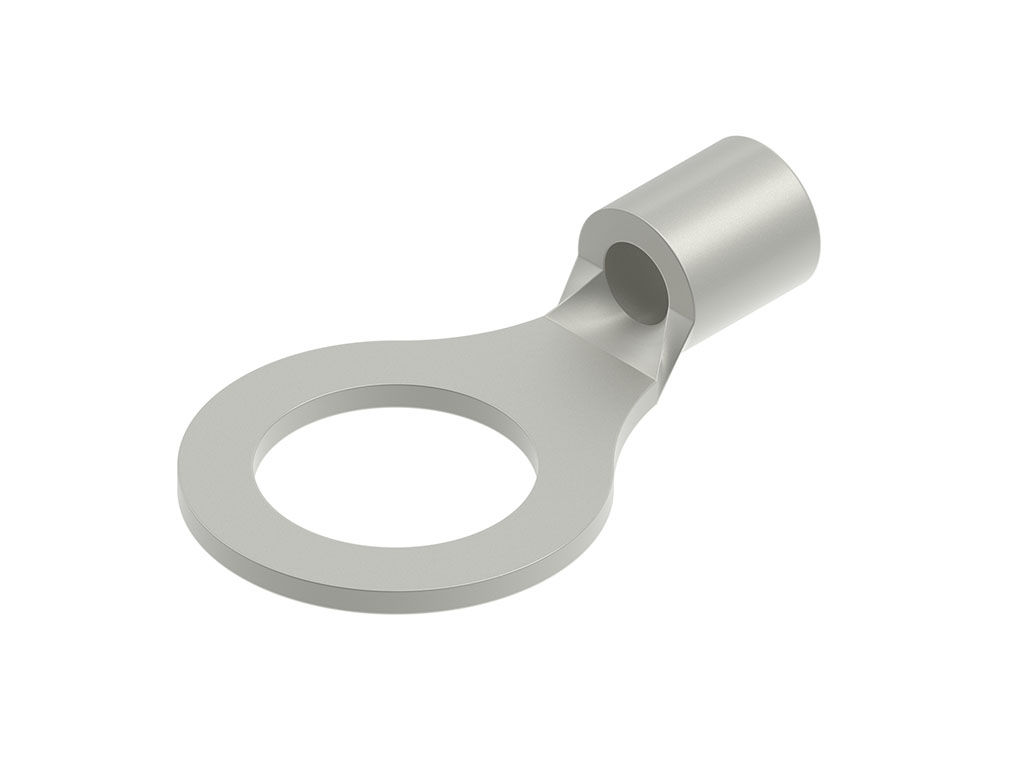

 | Molex 19193-0137 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire, 3/8 (M9) Stud Size | |
 | Molex 19193-0171 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19418-0022 | MX150L 8 Circuit Receptacle for 18-22 AWG Wire, without CPA, Black | |
 | Molex 19418-0023 | MX150L 8 Circuit Receptacle for 14-16 AWG Wire, without CPA, Black | |
 | Molex 19419-0007 | MX150L 2 Circuit Plug for 14-16 AWG Wire | |
 | Molex 34565-0003 | MX123 73/80 Circuit Dress Cover | |

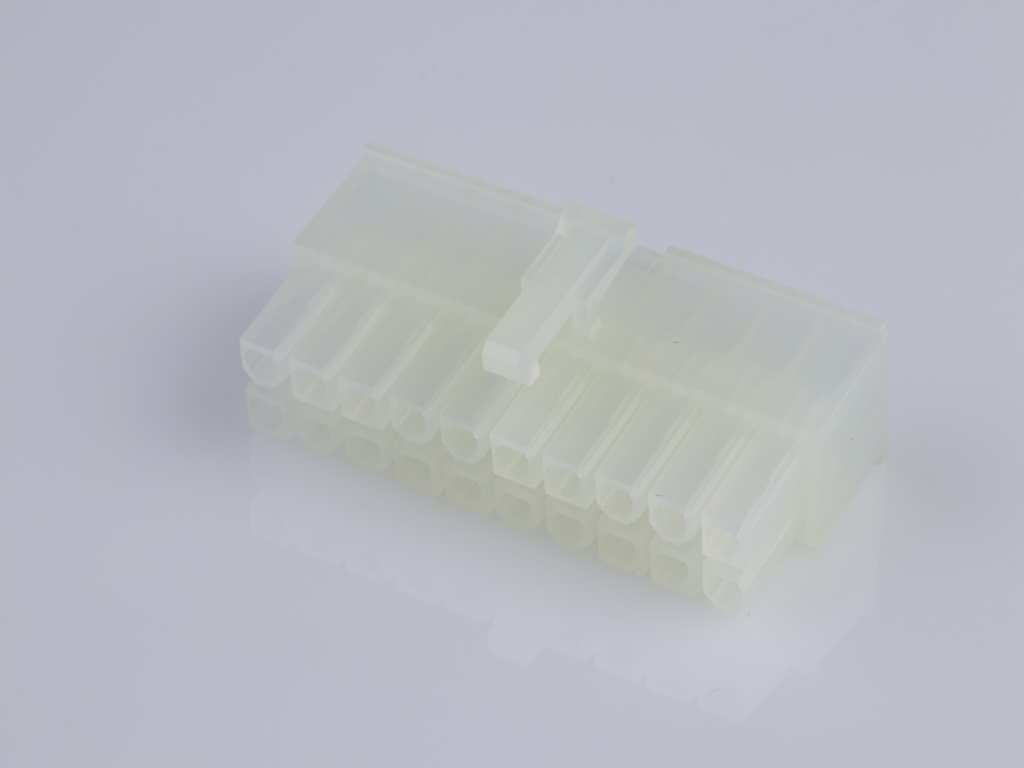

 | Molex 39-01-2200 | Mini-Fit Jr. Receptacle Housing, Dual Row, 20 Circuits, UL 94V-2, Natural | |

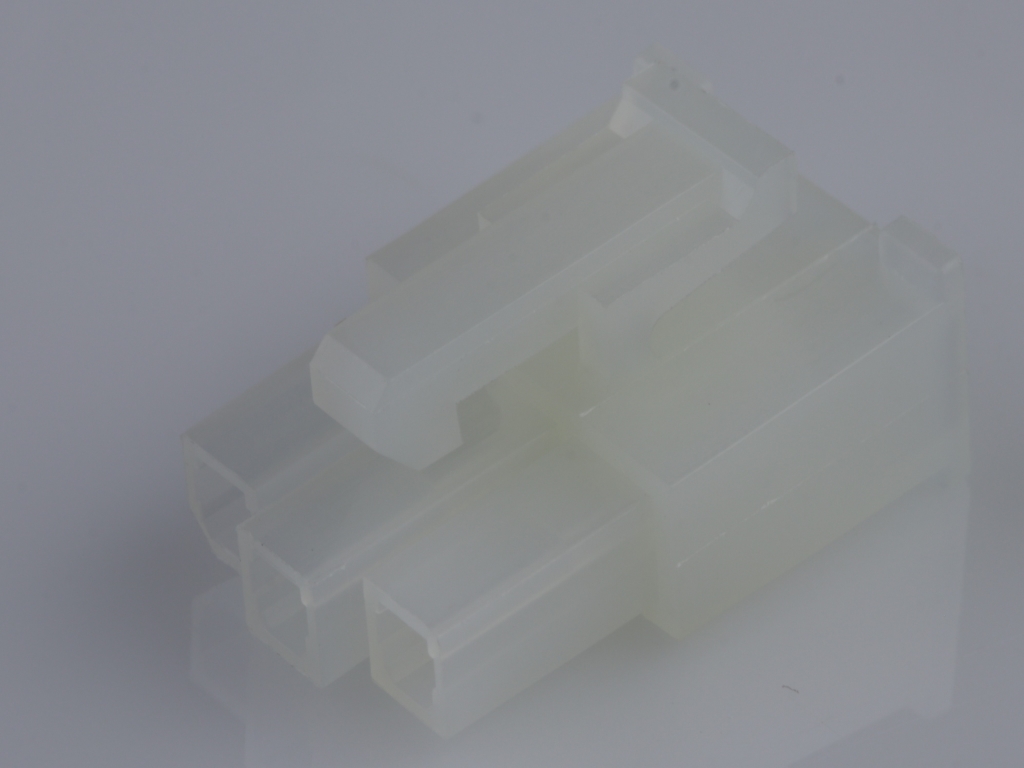

 | Molex 39-01-4030 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Natural | |
 | Molex 42815-0011 | Mini-Fit Sr. Crimp Terminal, Female, 10-12 AWG, Tin (Sn) | |

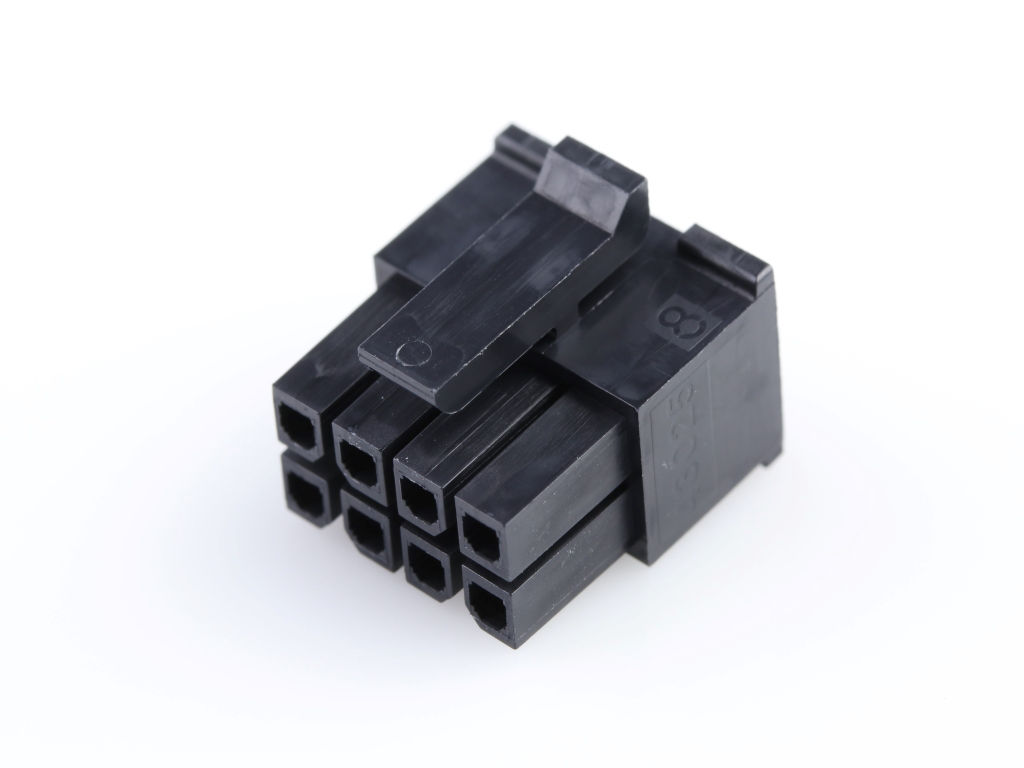

 | Molex 43025-0800 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43030-0001 | Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Reel | |

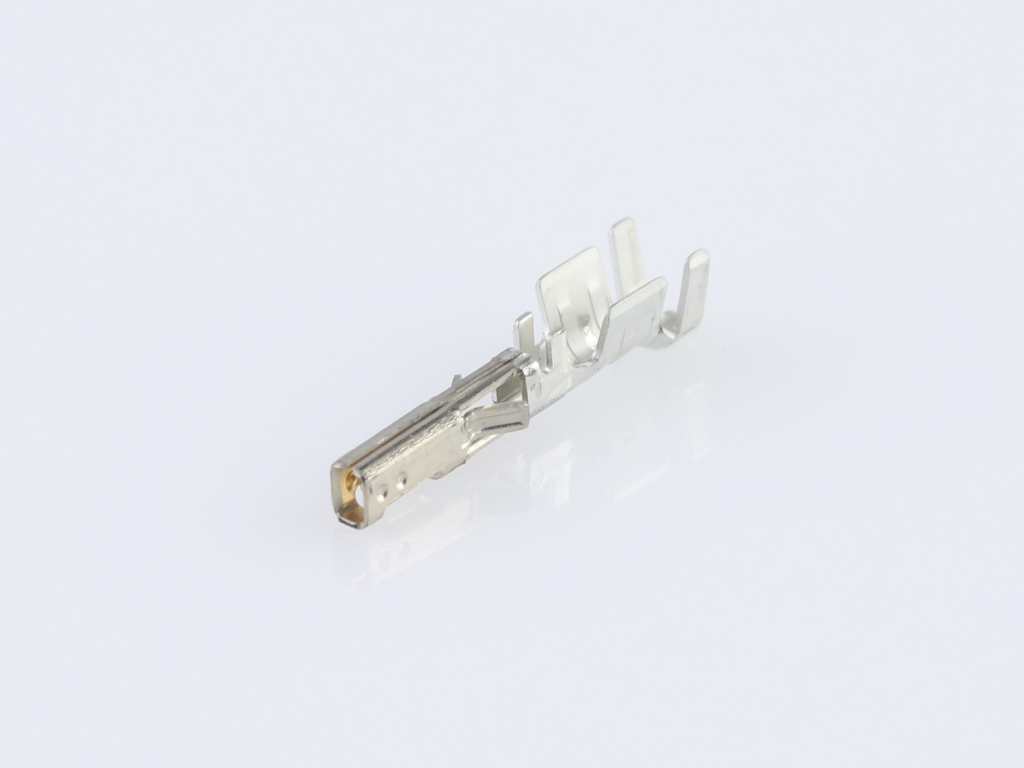

 | Molex 43030-0009 | Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG | |
