172953-2001

Heilind Number:	MOL172953-2001
Manufacturer:	Molex
Manufacturer Number:	172953-2001
Datasheet:	Product Specification
ECAD Model:

Description:

Micro-Fit Terminal Position Assurance (TPA) Retainer, 20 Circuits, 3.00mm Pitch, UL 94V-0, Low-Halogen, Natural

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Kits RJ Connector Accessories
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172953-2001
Color:	Natural
Series:	172953 - Micro-Fit TPA - TPA - Term Pos Assurance
Connector Type:	MicroTPA, TPA - Term Pos Assurance
Number of Contacts:	20
Number of Rows:	1
Material:	Nylon
Component Type:	Terminal Position Assurance
Operating Temperature Range:	-40 - 105 °C
Number of Contacts Loaded:	20
Lock to Mating Part:	Yes
Part Aliases:	1729532001
SKU:	MOL172953-2001

Detailed Description

Introducing the Micro-Fit Terminal Position Assurance (TPA) Retainer, a crucial accessory for ensuring secure connections in your electronic devices. With 20 circuits and a 3.00mm pitch, this UL 94V-0 certified retainer offers reliable performance in demanding environments. Made from low-halogen nylon, it is not only durable but also environmentally friendly. Its natural color blends seamlessly with any design, while its lock-to-mating-part feature guarantees stability. With all 20 contacts loaded, you can trust in its consistent performance. Part of the Fit Families campaign and RoHS compliant, the Micro-Fit TPA Retainer, with the SKU 172953-2001, is the perfect choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 03-06-2024	1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 2 Circuits, with Pre-bent Mounting Ears, Natural
	Molex 10-01-3036	5.08mm Pitch SPOX Crimp Terminal Housing, 3 Circuits, Natural
	Molex 171850-0200	Micro-Fit TPA Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 171850-0400	Micro-Fit TPA Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 171850-0600	Micro-Fit TPA Receptacle Housing, Single Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 172708-0004	Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 4 Circuits
	Molex 172709-0004	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 4 Circuits, White
	Molex 172709-0005	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 5 Circuits, White
	Molex 172718-5121	Mini-Fit TPA2 Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 22-24 AWG, 1.07-1.65mm Insulation Diameter, Reel
	Molex 172952-0401	Micro-Fit TPA Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black

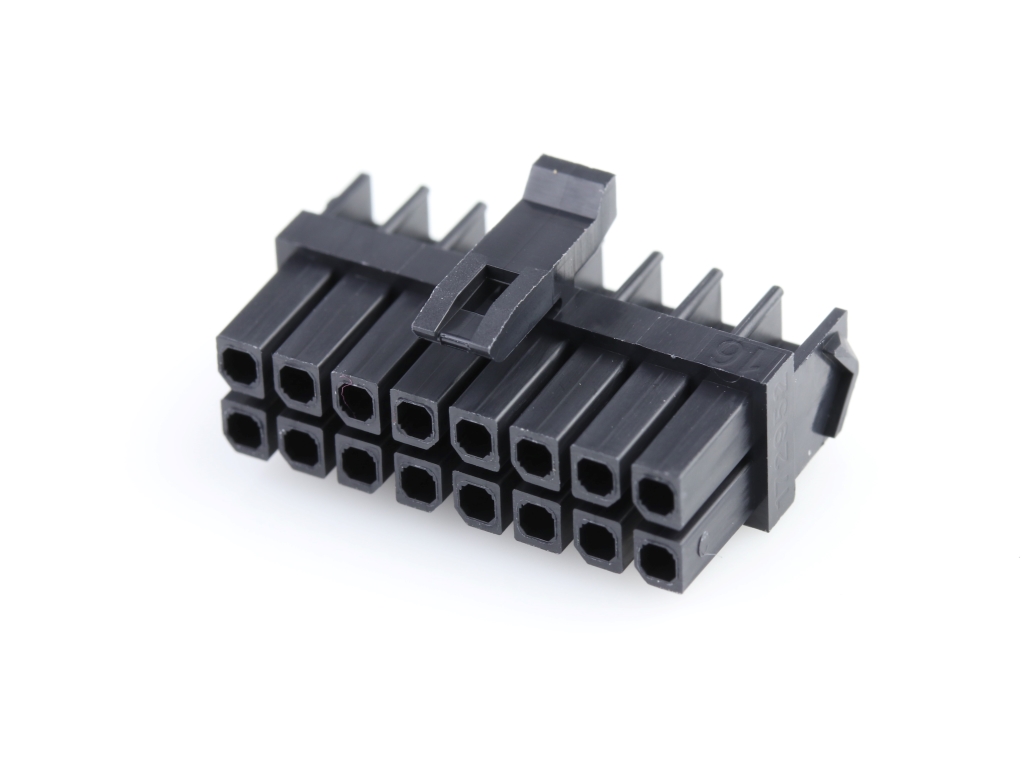

	Molex 172952-1601	Micro-Fit TPA Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Low-Halogen, Black
