501646-2600

Heilind Number:	MOL501646-2600
Manufacturer:	Molex
Manufacturer Number:	501646-2600
Datasheet:	Product Specification
ECAD Model:

Description:

2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 26 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 501646-2600
Color:	Natural
Series:	501646 - iGrid
Connector Type:	iGrid
Gender:	Receptacle
Housing Material:	Nylon
Number of Contacts:	26
Number of Rows:	2
Pitch:	2 mm
Material:	Nylon
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Signal
Polarized to Mate:	Yes
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Material Flammability Standard:	94V-0
Part Aliases:	5016462600
SKU:	MOL501646-2600

Detailed Description

Introducing the 501646-2600, a versatile iGrid connector designed for high-performance signal applications. With 26 contacts arranged in 2 rows and a pitch of 2mm, this connector ensures reliable connectivity in any setup. Crafted from durable nylon, it offers excellent housing protection, while its operating temperature range of -40 to 105°C guarantees performance in harsh environments. Engineered for seamless wire-to-board integration, this RoHS-compliant connector features a polarized receptacle design with locking capability for added security. Perfect for a wide range of applications, the 501646-2600 is a must-have component for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 172709-0005	Mini-Fit TPA2, Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Low-Halogen, 5 Circuits, White
	Molex 19003-0011	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 4.75 x 0.51mm
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0059	Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0073	Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel
	Molex 39-01-2080	Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-2, Natural
	Molex 39-01-2100	Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural
	Molex 39-01-2105	Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Natural
	Molex 39-01-2120	Mini-Fit Jr. Receptacle Housing, Dual Row, 12 Circuits, UL 94V-2, Natural
	Molex 39-01-2140	Mini-Fit Jr. Receptacle Housing, Dual Row, 14 Circuits, UL 94V-2, Natural
	Molex 39-01-2185	Mini-Fit Jr. Receptacle Housing, Dual Row, 18 Circuits, UL 94V-0, Natural
	Molex 39-01-2245	Mini-Fit Jr. Receptacle Housing, Dual Row, 24 Circuits, UL 94V-0, Natural
	Molex 39-01-3029	Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-0, without Panel Mounting Ears, Natural
	Molex 43030-0002	Micro-Fit 3.0 Crimp Terminal, Female, with Select Gold (Au) Plated Phosphor Bronze Contact, 24-20 AWG, Reel

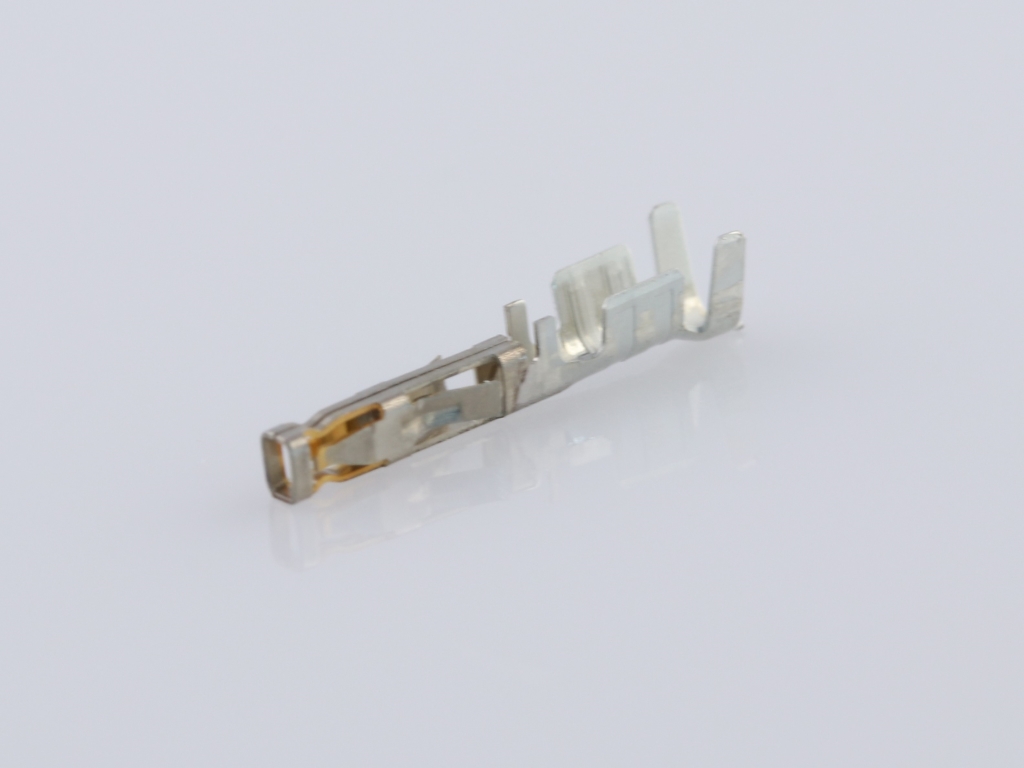

	Molex 46235-5001	Micro-Fit RMF High Mating Cycle, Reduced Mating Force, Crimp Terminal, Female, with 0.38µm Selective Gold (Au) over Nickel (Ni), 24-20 AWG, with Lubricant
