| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 171850-0400 |
| Color: | Black |
| Series: | 171850 - Micro-Fit TPA |
| Connector Type: | MicroTPA |
| Gender: | Receptacle |
| Housing Material: | Nylon |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Pitch: | 3 mm |
| Material: | Nylon |
| Keying: | No |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94HB 94V-0 |
| Part Aliases: | 1718500400 |
| SKU: | MOL171850-0400 |
171850-0400
Specifications
Detailed Description
The Micro-Fit TPA Receptacle Housing is a crucial component for secure power connections in electronic devices. With a single row design and 4 circuits, this housing ensures efficient power transmission. Made from UL 94V-0 rated nylon, it offers superior safety and durability. Its low-halogen construction is environmentally friendly. The black color adds a sleek aesthetic to any assembly. Operating in a wide temperature range from -40 to 105 °C, this housing is suitable for various applications. Featuring polarized mating and a locking mechanism, it guarantees a secure and reliable connection. RoHS compliant and suitable for wire-to-wire or wire-to-board connections, the Micro-Fit TPA Receptacle Housing is a trusted choice for demanding electronic systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 10-11-2053 | KK 254 Crimp Housing, High Pressure, 5 Circuits, Natural |  |
 | Molex 105307-1205 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Single Row, 5 Circuits, Black, Glow-Wire Capable | |

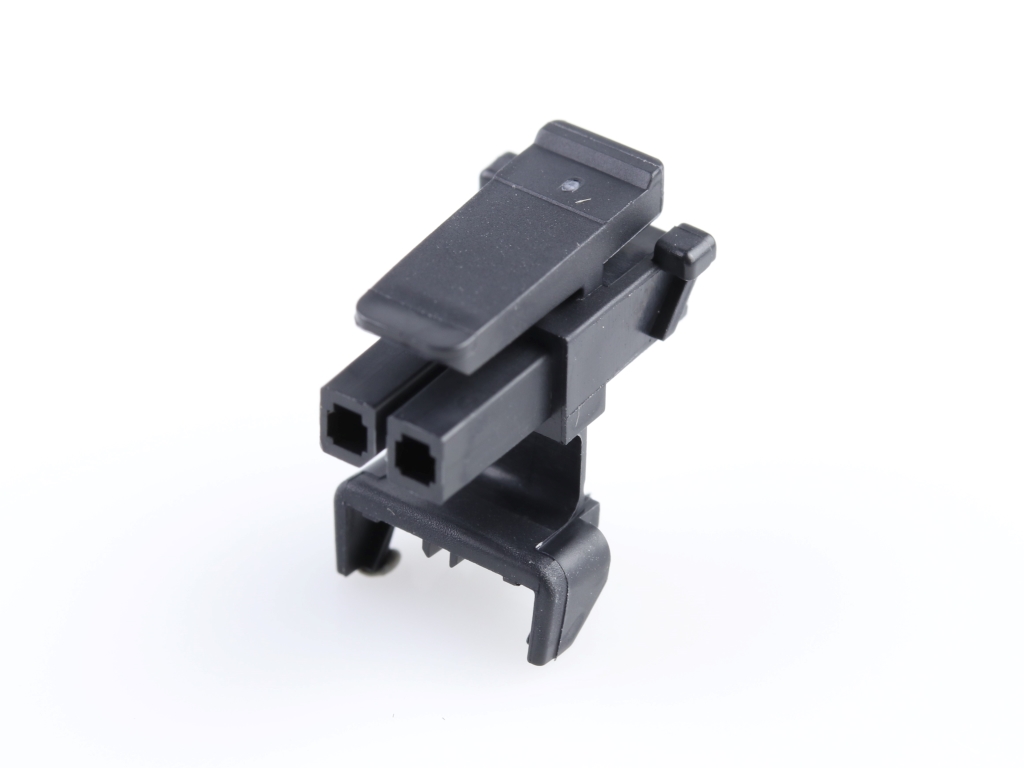

 | Molex 171850-0200 | Micro-Fit TPA Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |

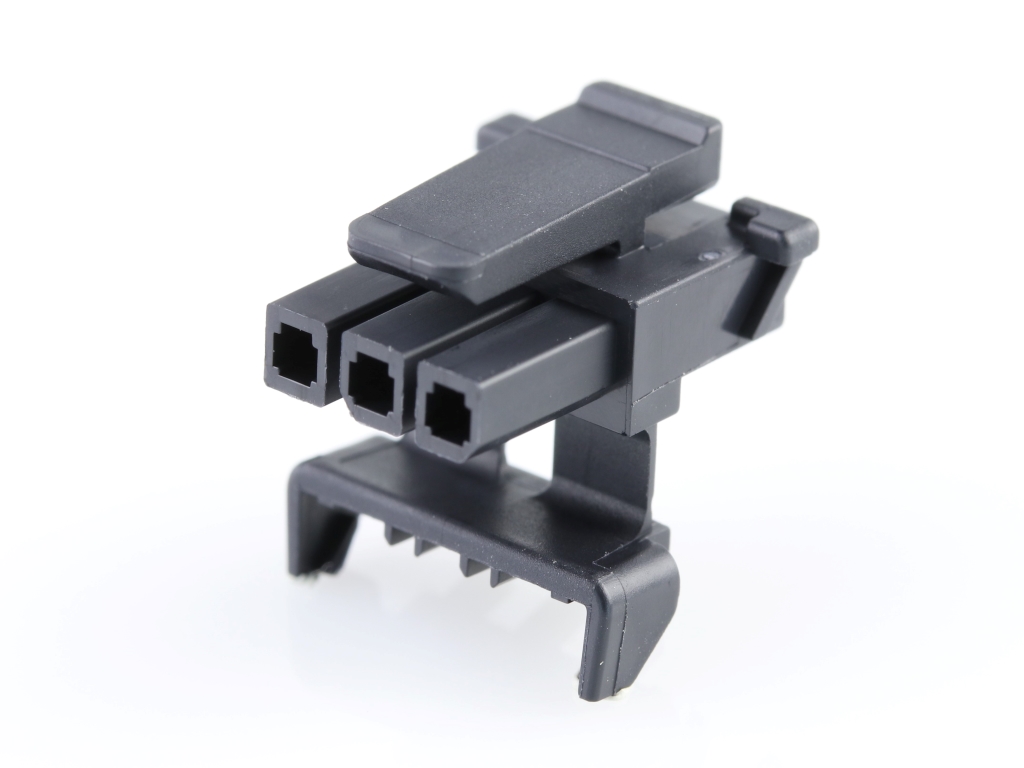

 | Molex 171850-0300 | Micro-Fit TPA Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black | |
