90131-0763

Heilind Number:	MOL90131-0763
Manufacturer:	Molex
Manufacturer Number:	90131-0763
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 6 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 90131-0763
Color:	Black
Series:	90131 - C-Grid III
Amperage:	3 A
Connector Type:	C-Grid III
Number of Contacts:	6
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	350 V
Material:	Polyester
Orientation:	Vertical
Keying:	No
Tail Length:	2.9 mm
Operating Temperature Range:	-55 - 125 °C
Contact Mating Area Plating:	Gold
Number of Contacts Loaded:	6
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Polarized to Mate:	No
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Lead Free Process Capability:	WAVE
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	Yes
Breakaway:	Yes
Make First / Break Last:	No
Shroud Type:	No
Part Aliases:	0901310763
SKU:	MOL90131-0763

Detailed Description

The 90131-0763 is a high-quality PCB Pin Header connector from the renowned C-Grid III series. Designed for reliable power and signal transmission, this straight connector features 6 gold-plated brass contacts with a current rating of 3 A and a voltage tolerance of 350 V. With a pitch of 2.54 mm and through-hole termination, it offers easy and secure installation on circuit boards. The black polyester housing ensures durability, while the operating temperature range of -55 to 125 °C makes it suitable for a variety of environments. This RoHS-compliant connector, with CSA agency certification, guarantees safety and performance in your electronic applications.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-91-2065	2.54mm Pitch SL Wire-to-Board Header, Low Profile, Surface Mount, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 6 Circuits, 0.38

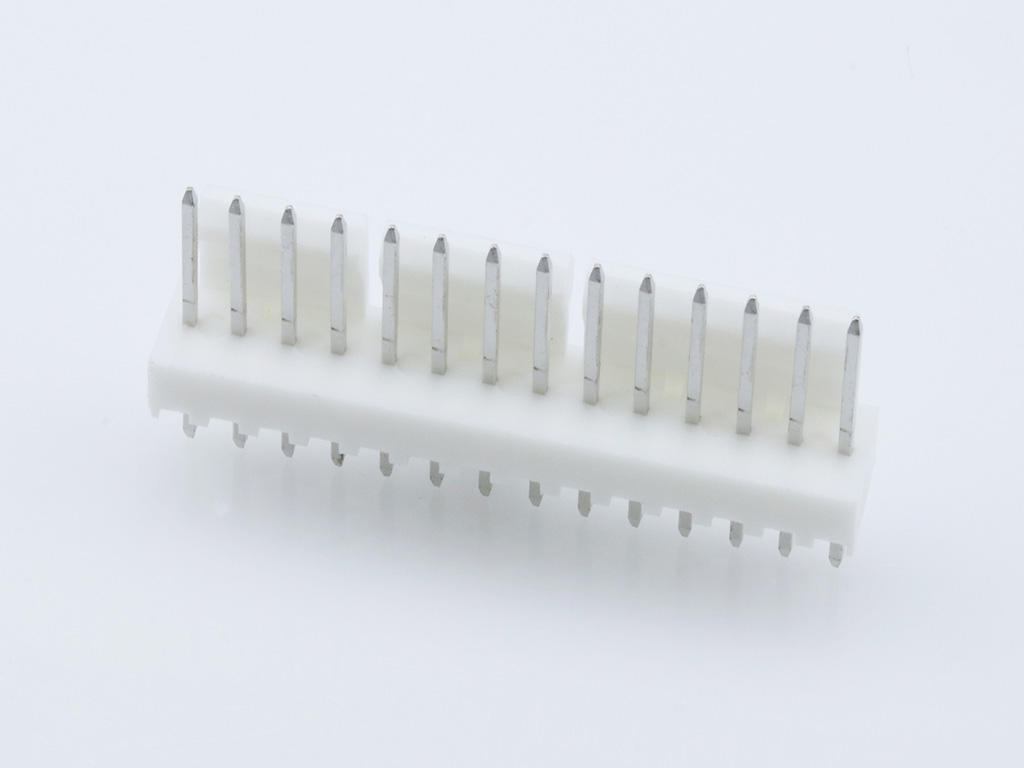

	Molex 22-23-2141	KK 254 Solid Header, Vertical, with Friction Lock, 14 Circuits, Tin (Sn) Plating
	Molex 22-27-2031	KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 3 Circuits, Tin (Sn) Plating

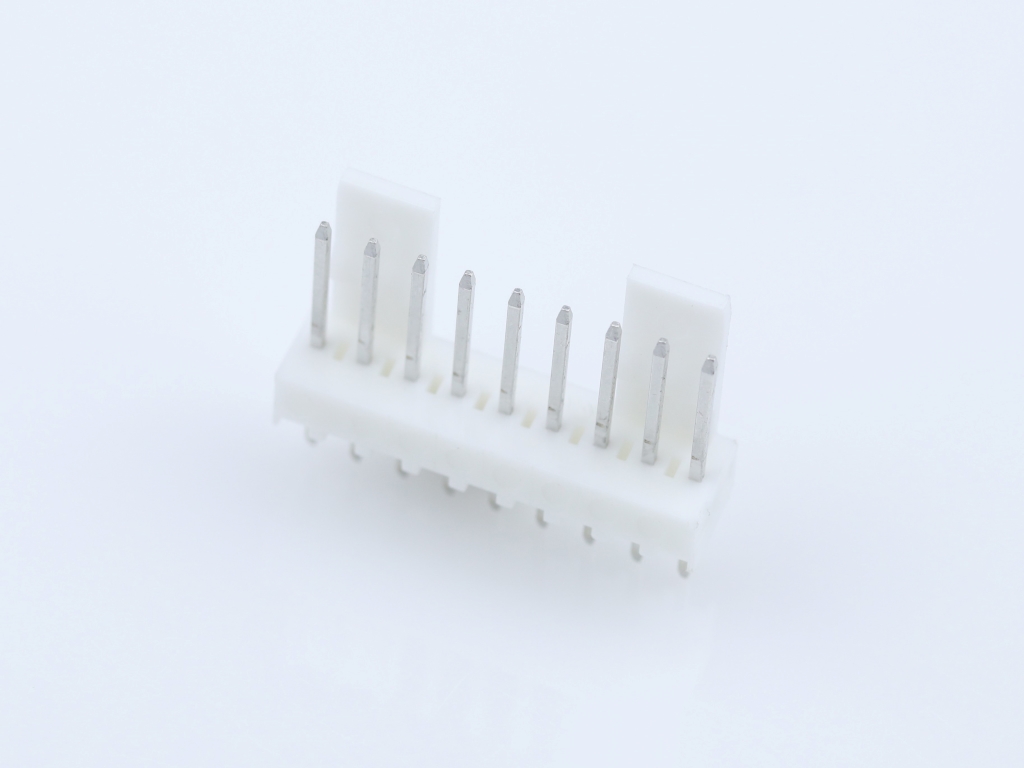

	Molex 22-27-2091	KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 9 Circuits, Tin (Sn) Plating
