22-27-2031

ICC Number:	MOL22-27-2031
Manufacturer:	Molex
Manufacturer Number:	22-27-2031
Datasheet:	Datasheet
ECAD Model:

Description:

KK 254 Header, Vertical, Square Pin, Friction Lock, 3 Circuits, 7.50mm Mating Pin Length, 3.56mm Tail Length, 2.54µm Matte Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 22-27-2031
Gender:	Male
Number of Contacts:	3
Number of Rows:	1
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	2.54 mm
Shroud Type:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	4 A
Voltage Rating:	500 V
Operating Temperature:	-40 to 80 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL22-27-2031

Detailed Description

Introducing the 22-27-2031 KK 254 Wire-to-Board Header, a versatile and reliable connector for your PCB projects. This vertical header features a friction lock design, ensuring secure connections in high-vibration environments. With 3 circuits and tin plating, it offers excellent conductivity and corrosion resistance. The natural white color and straight body orientation make it easy to integrate into your designs. Made of high-quality nylon and brass, this header is durable and dependable. With a pitch of 2.54 mm and a voltage rating of 500 V, it is suitable for a wide range of applications. RoHS compliant and lead-free process capable, it meets stringent environmental standards. Whether you're a hobbyist or a professional, the KK 254 Wire-to-Board Header is the perfect choice for your next project.

Frequently Bought Together

Product	Part #	Description	Stock

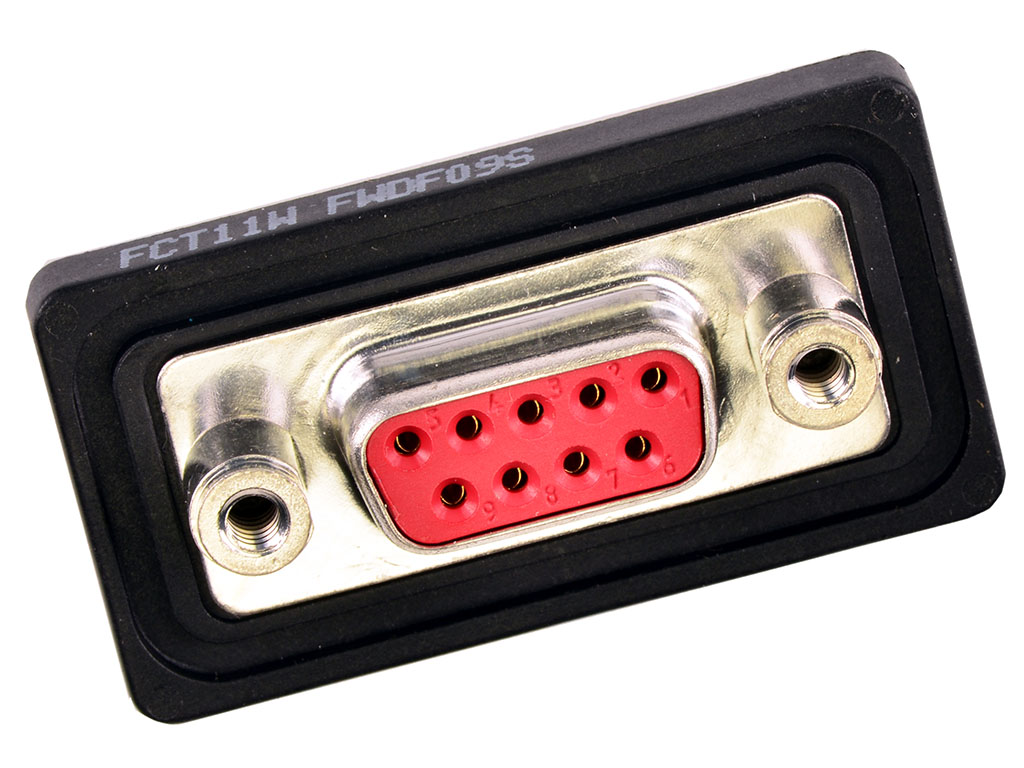

	Molex 173110-0021	FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 9 Circuits, Red Insulator
