87833-2021

Heilind Number:	MOL87833-2021
Manufacturer:	Molex
Manufacturer Number:	87833-2021
Datasheet:	Product Specification
ECAD Model:

Description:

Milli-Grid Header, Right Angle, Shrouded, Lead-Free, 20 Circuits, 0.76

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87833-2021
Color:	Black
Series:	87833 - Milli-Grid
Amperage:	2 A
Connector Type:	Milli-Grid
Number of Contacts:	20
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Phosphor Bronze
Body Orientation:	Right Angle
Pitch:	2 mm
Voltage:	125 V
Material:	Nylon
Orientation:	Right Angle
Keying:	No
Tail Length:	2.16 mm
Operating Temperature Range:	-55 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.762 µm
Number of Contacts Loaded:	20
Mating Cycles:	100
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	265 °C
Lead Free Process Capability:	SMC and Wave
Duration at Max. Process Temperature (seconds):	011
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0878332021
SKU:	MOL87833-2021

Detailed Description

Introducing the 87833-2021 Milli-Grid Header, a versatile and reliable PCB connector for your electronic applications. This right-angle header features a shrouded design for added protection, with lead-free construction meeting environmental standards. Boasting 20 circuits and 2A amperage, it ensures efficient power and signal transmission. Crafted with high-quality materials including black nylon and gold-plated phosphor bronze contacts, this connector guarantees durability and excellent performance. With a pitch of 2mm and operating voltage of 125V, it is suitable for various board-to-board and wire-to-board connections. RoHS compliant and suitable for SMC and wave soldering, the Milli-Grid Header is a dependable solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-52-0125	KK Trifurcon Crimp Terminal 7258, 22-26 AWG, Bag, Phosphor Bronze Tin (Sn)
	Molex 09-50-8051	KK 3.96mm Crimp Terminal Housing, Friction Ramp, 5 Circuits, Natural
	Molex 15-31-1066	2.36mm Diameter Standard .093 Pin and Socket Header, Vertical, with Beveled Plastic Peg, 6 Circuits

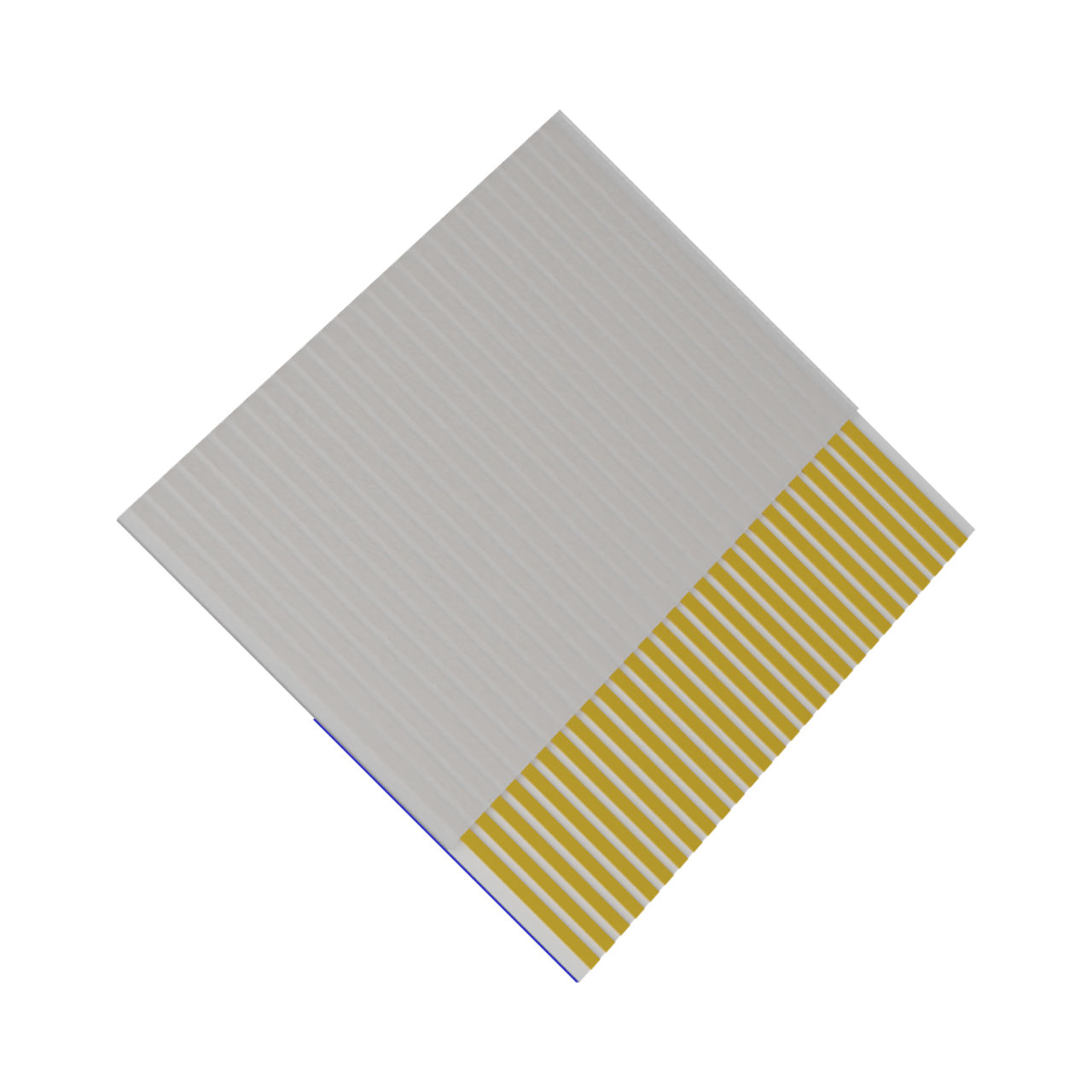

	Molex 15020-0300	0.50mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 28 Circuits, 0.102m Cable Length, 0.27mm Cable Thickness, Gold (Au) Plating
	Molex 26-61-4040	KK 396 Header, Vertical, Friction Lock, 4 Circuits, Gold (Au) Plating
	Molex 39-00-0022	SPOX Crimp Terminal 5194, 18-24 AWG, Phosphor Bronze, Bag

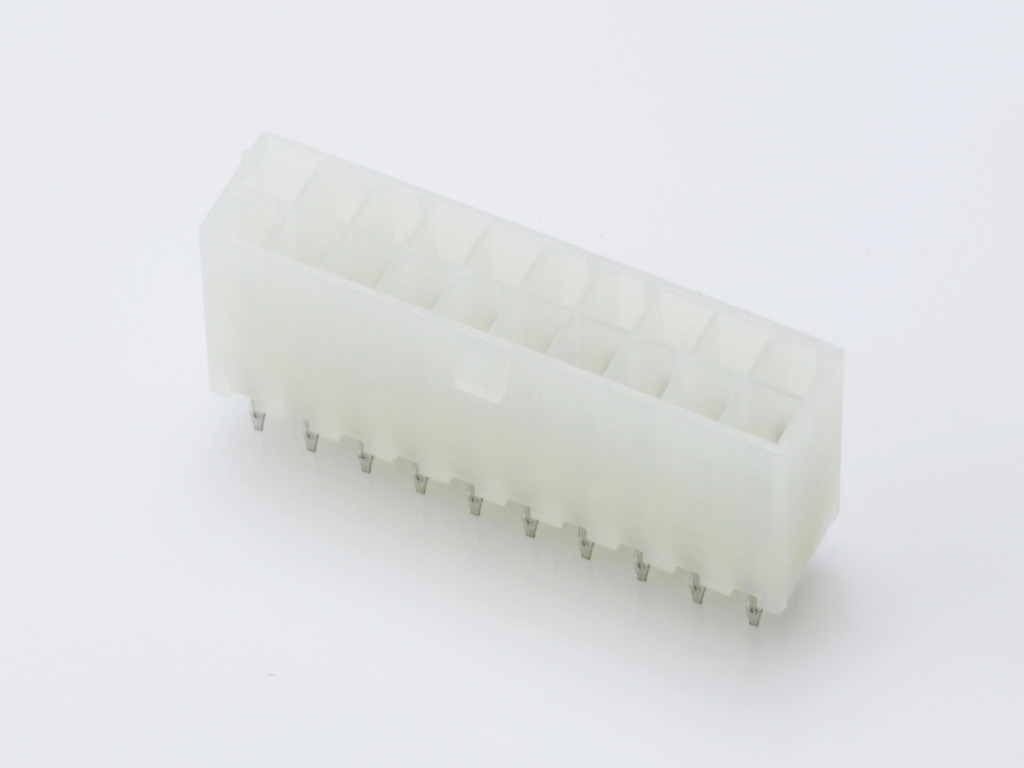

	Molex 39-28-1203	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 20 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

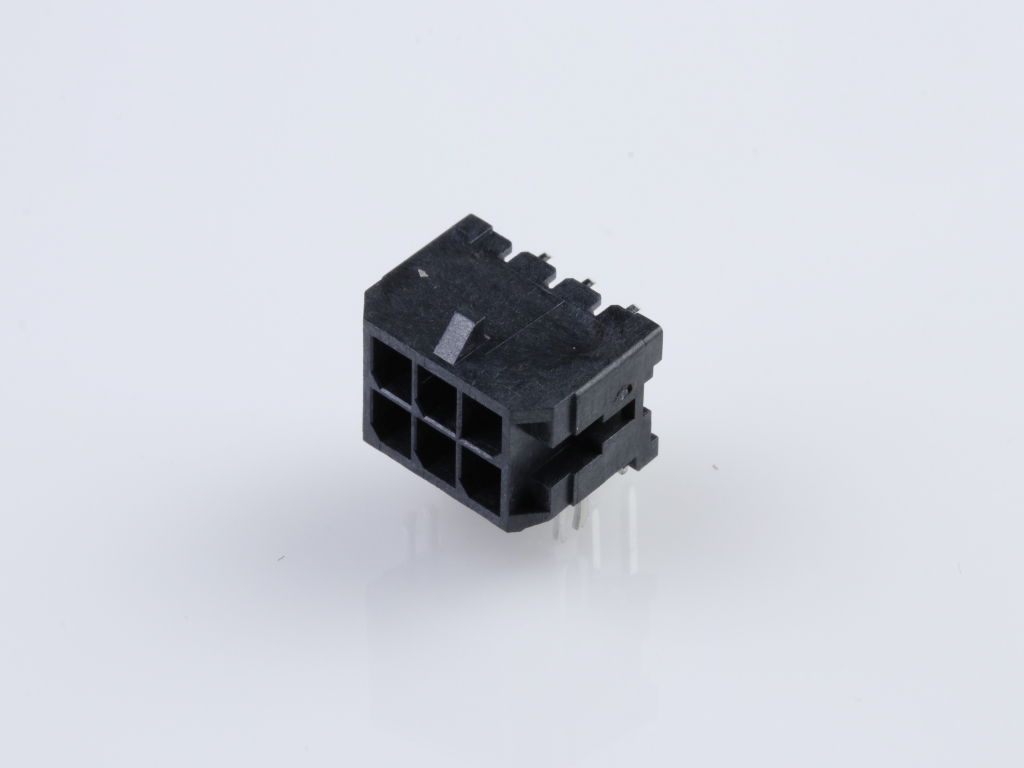

	Molex 43045-0621	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow-Wire Capable, Black
