| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-28-1203 |
| Gender: | Male |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Pitch: | 4.2 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-2 |
| Current Rating: | 9 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL39-28-1203 |
39-28-1203
Specifications
Detailed Description

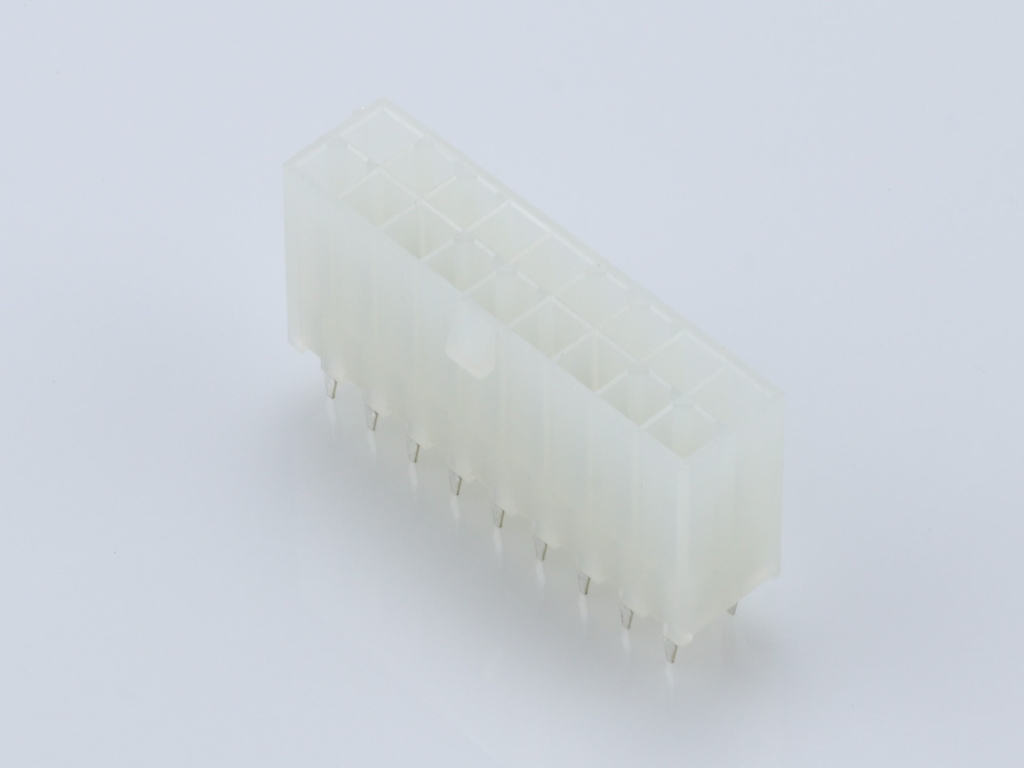

Introducing the Molex Mini-Fit Jr. Vertical Header, a reliable and versatile connector for your PCB needs. With a 4.20mm pitch and dual-row design, this header features 20 circuits for ample connectivity. The straight body orientation and through-hole termination method ensure secure and stable installation. Constructed with durable nylon and brass contact material plated with tin, it offers excellent conductivity and longevity. Rated for 600V and 9A, this connector is suitable for various applications. Featuring a compact design with a tail length of 3.5mm, it is ideal for space-restricted PCB layouts. RoHS compliant and lead-free solder capable, this header is environmentally friendly. Whether for industrial or consumer electronics, the Molex Mini-Fit Jr. Vertical Header guarantees high performance and reliability.
