| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 15020-0300 |
| Number of Contacts: | 28 |
| Pitch: | 0.5 mm |
| Insulation Material: | Polyester |
| Conductor Material: | Copper |
| Cable Length: | 4 in |
| Jacket Material: | Polyester |
| Jacket Color: | White |
| Voltage Rating: | 60 VAC |
| Operating Temperature: | -40 to 105 °C |
| SKU: | MOL15020-0300 |
15020-0300
| ICC Number: | MOL15020-0300 |
| Manufacturer: | Molex |
| Manufacturer Number: | 15020-0300 |
| ECAD Model: | |
Description:
0.50mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 102.00mm Cable Length, Gold (Au) Plating, 28 Circuits
More >>Specifications
Detailed Description
Introducing the 15020-0300 Premo-Flex FFC Jumper, a high-performance cable solution designed for optimal signal transmission in tight spaces. With a low amperage rating of .5 A, this jumper is perfect for delicate electronic applications. Operating smoothly in temperatures ranging from -40 °C to 105 °C, it offers reliable performance in diverse environmental conditions. The overall length of 0.102m and a pitch of .5 mm make it ideal for high-density cable management. Crafted with precision and quality in mind, this FFC jumper is a dependable choice for your connectivity needs. Please note, this product is not RoHS compliant. Elevate your wiring setup with the 15020-0300 Premo-Flex FFC Jumper.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 52271-1069 | Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 10 Circuits, Gold Plating |  |
 | Molex 87833-2021 | 2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 20 Circuits, 0.76µm Gold (Au) Plating, 2.16mm Tail Length, Dual Side Slots, Dual Friction Locks, Center Polarization, Tube | |

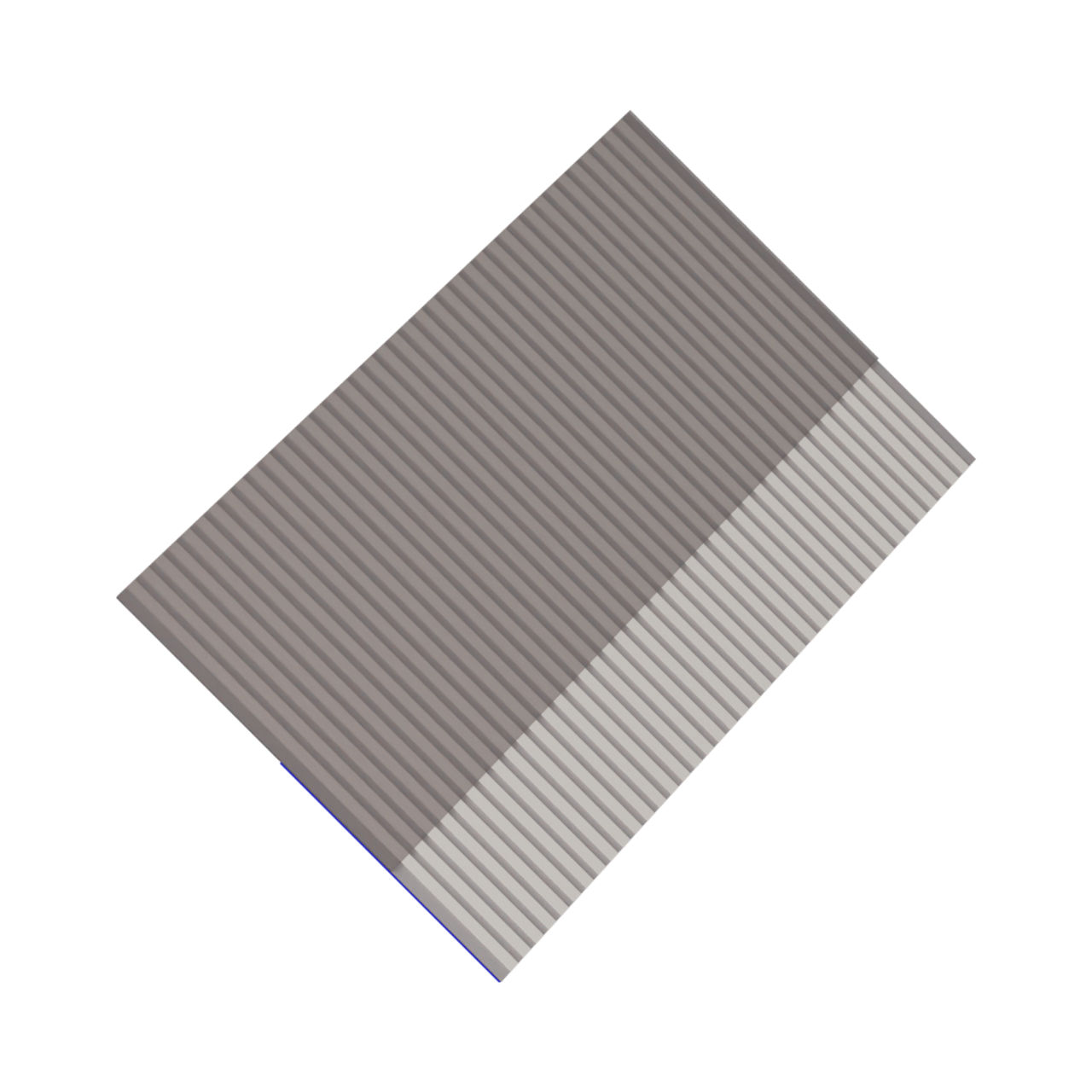

 | Molex 98266-0430 | 0.50mm Pitch Premo-Flex FFC Jumper, Opposite Side Contacts (Type D), 76.00mm Cable Length, Tin (Sn) Plating, 40 Circuits | |
