87833-1031

ICC Number:	MOL87833-1031
Manufacturer:	Molex
Manufacturer Number:	87833-1031
Datasheet:	Datasheet
ECAD Model:

Description:

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 10 Circuits, 0.38µm Gold (Au) Plating, 2.16mm Tail Length, Dual Side Slots, Center Friction Lock, Tube

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87833-1031
Gender:	Male
Number of Contacts:	10
Number of Rows:	2
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Pitch:	2 mm
Shroud Type:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	2 A
Voltage Rating:	125 V
Operating Temperature:	-55 to 105 °C
Mounting Angle:	Right Angle
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL87833-1031

Detailed Description

The 87833-1031 is a versatile Milli-Grid Header designed for efficient PCB connectivity. Featuring a right-angle, shrouded design, this lead-free connector ensures secure and reliable contact in tight spaces. With 10 circuits and a pitch of 2mm, it offers high-density board-to-wire connections. Constructed with durable black nylon and gold-plated phosphor bronze contacts, it guarantees longevity and excellent signal transmission. Rated for 125V and 2A, it is suitable for various applications. Its through-hole termination method and PCB retention capability make it easy to install and secure on the board. RoHS compliant and suitable for lead-free soldering processes, this connector is environmentally friendly and reliable for your electronic projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-92-1050	1.27mm Pitch EBBI 50D Receptacle, Vertical, 50 Circuits, 3.40mm PC Tail Length
	Molex 19070-0040	InsulKrimp Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 5-6 (M3-3.5), Length 20.50mm, Red, Carton
	Molex 19073-0216	Avikrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 6 (M3.5), Length 26.59mm, Yellow, Carton
	Molex 22-04-1031	Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 3 Circuits, Tin (Sn) Plating, Natural
	Molex 39-29-9047	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-30-0160	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 16 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-3036	Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-0, Tin (Sn) Plating
	Molex 43045-0421	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43650-0216	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 43650-0516	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 43650-0616	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 48025-0002	Modular Jack, Right-Angle, 10/100, with Integrated Magnetic and LED, 8/8, Tail Length 2.80mm for IR Reflow, Lead-Free
	Molex 501645-1450	2.00mm Pitch, iGrid PCB Header, Dual Row, Vertical, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 14 Circuits, 2.20mm PC Tail Length, Natural, with PCB Locator
	Molex 501876-1440	2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 14 Circuits, 3.20mm PC Tail Length, Natural

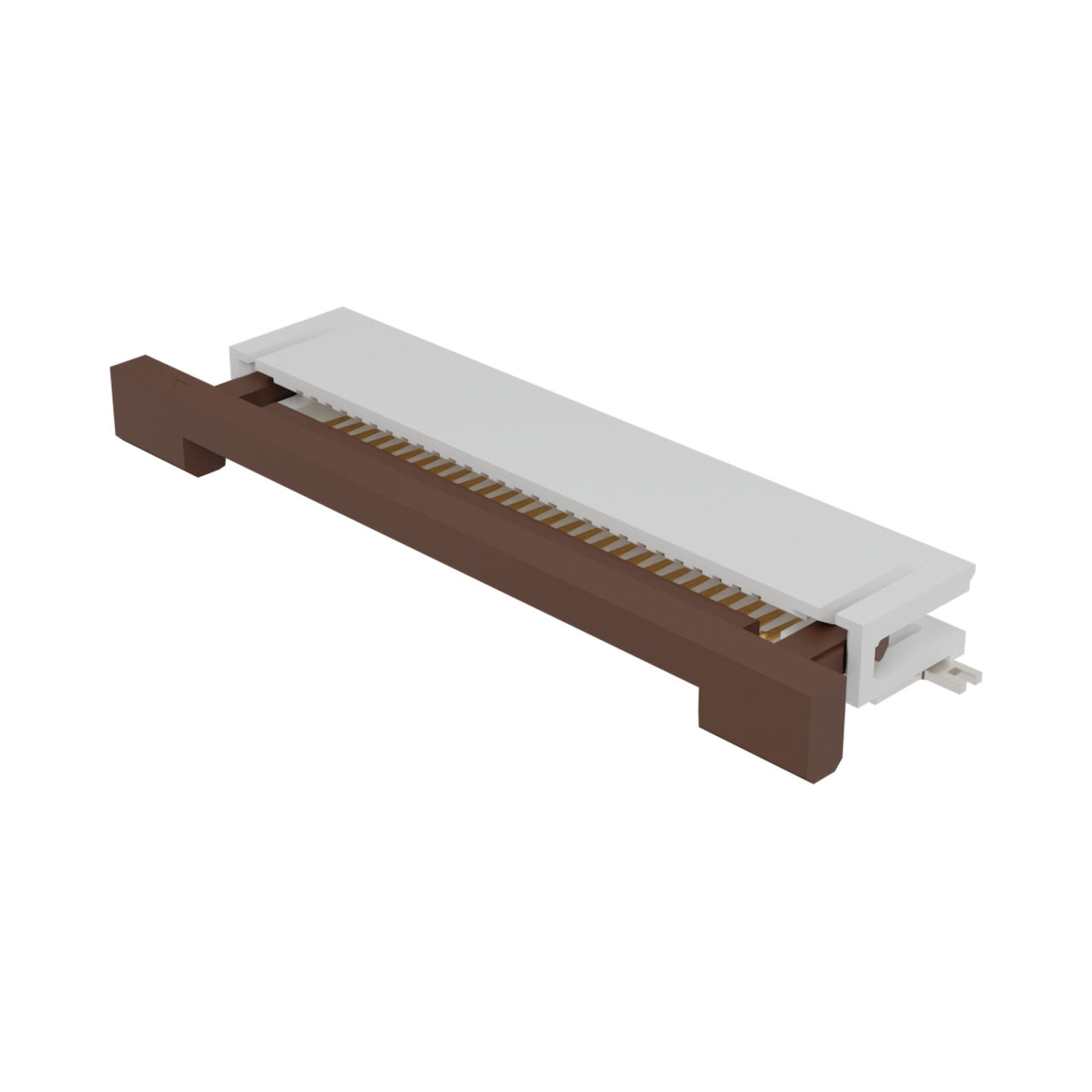

	Molex 52437-2871	Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 28 Circuits, Gold Plating
