| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43650-0616 |
| Color: | Black |
| Series: | 43650 |
| Amperage: | 8.5 A |
| Connector Type: | Micro-Fit 3.0 |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole - Kinked Pin |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3 mm |
| Voltage: | 600 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .381 µm |
| Number of Contacts Loaded: | 6 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 2.540 µm |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | SMC and Wave |
| Duration at Max. Process Temperature (seconds): | 030 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Glow Wire Capable: | Yes |
| Mated Height: | 17.27 mm |
| Stackable: | No |
| Surface Mount Compatible: | Yes |
| Breakaway: | No |
| Shroud Type: | Fully |
| Product Name: | Micro-Fit 3.0 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0436500616 |
| SKU: | MOL43650-0616 |
43650-0616
| Heilind Number: | MOL43650-0616 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43650-0616 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

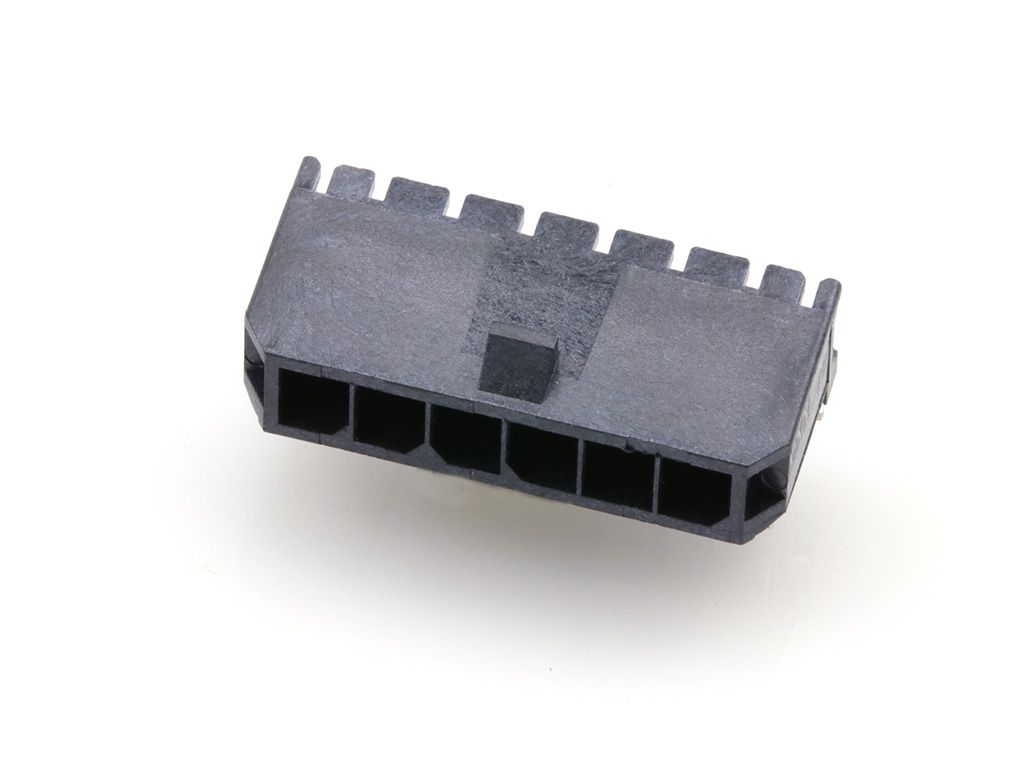

Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 6 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
Introducing the Molex Micro-Fit 3.0 Vertical Header, a high-performance PCB connector designed for reliable power and signal transmission in various electronic applications. This single-row header features 6 gold-plated brass contacts, allowing for a current rating of 8.5 A and a voltage of 600 V. With a 3.00mm pitch and through-hole termination, it ensures secure connectivity on the PCB. The straight body orientation and vertical design save valuable board space, while the included PCB polarizing peg offers easy and accurate mating. Engineered with high-temperature thermoplastic and glow-wire capability, this header guarantees durability and safety in harsh operating environments. RoHS compliant and lead-free solder compatible, the Micro-Fit 3.0 is a versatile and dependable solution for your connectivity needs.
