87831-0441

ICC Number:	MOL87831-0441
Manufacturer:	Molex
Manufacturer Number:	87831-0441
Datasheet:	Datasheet
ECAD Model:

Description:

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Through Hole, Shrouded, 4 Circuits, 0.38µm Gold (Au) Plating, 2.50mm Tail Length, Dual Side Slots, Center Friction Lock, Tube

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87831-0441
Gender:	Male
Number of Contacts:	4
Number of Rows:	2
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Pitch:	2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	2 A
Voltage Rating:	125 V
Operating Temperature:	-55 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	Header
SKU:	MOL87831-0441

Detailed Description

Introducing the 87831-0441, a high-performance 2A black Milli-Grid connector designed for seamless wire-to-board applications. With 4 contacts arranged in 2 rows, this through-hole connector ensures secure and reliable connections. Crafted with durable phosphor bronze contact material and a straight nylon body, it guarantees longevity even in demanding environments. Operating at voltages up to 125V and temperatures ranging from -55 to 105°C, it offers excellent versatility. Gold-plated contact mating areas enhance conductivity, while tin termination plating and lead-free wave soldering capability ensure easy installation. RoHS compliant and featuring a shrouded, vertically oriented design, this connector is ideal for various PCB applications, providing unmatched performance and reliability.

Frequently Bought Together

Product	Part #	Description	Stock

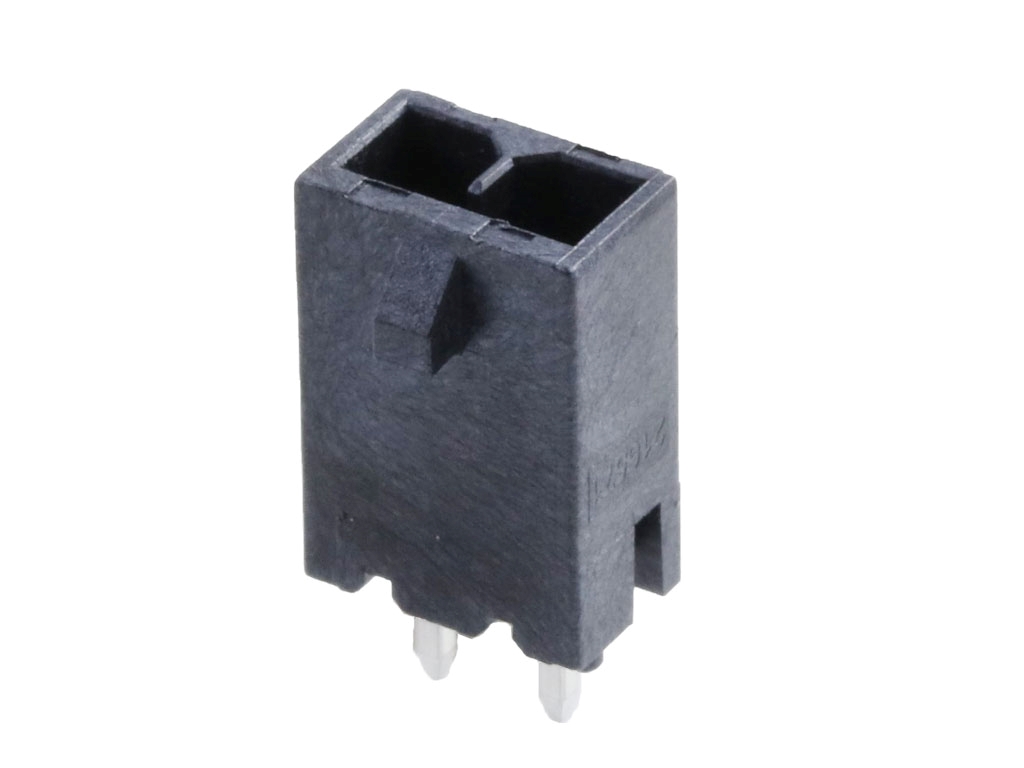

	Molex 216571-2002	Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Single Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black
	Molex 39-28-9048	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-30-0020	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 43045-0412	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 50394-8200	2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.76µm Select Gold Plating, 30-24 AWG, Lead-Free
	Molex 51110-0460	2.00mm Pitch, Milli-Grid Receptacle Housing, 4 Circuits, Locking Ramp, Lead-Free
	Molex 52271-1069	Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 10 Circuits, Gold Plating
	Molex 53047-0210	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 2 Circuits, 2.30mm PC Tail Length
	Molex 53047-0310	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 3 Circuits, 2.30mm PC Tail Length
	Molex 53047-0510	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 5 Circuits, 2.30mm PC Tail Length
	Molex 53047-0810	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 8 Circuits, 2.30mm PC Tail Length
	Molex 53047-1210	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 12 Circuits, 2.30mm PC Tail Length
	Molex 53047-1510	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 15 Circuits, 2.30mm PC Tail Length

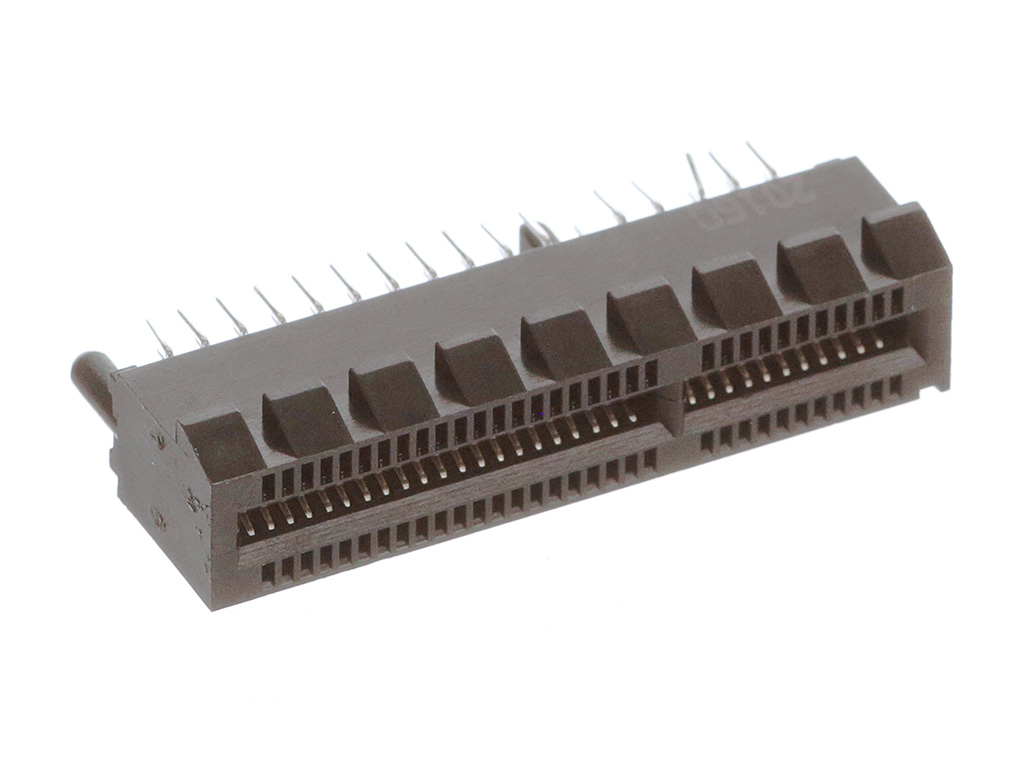

	Molex 87715-9106	1.00mm Pitch, PCI Express Connector, 64 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.76µm Gold Soldertail, Lead-Free
