| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 64321-1018 |
| Color: | Gray |
| Series: | 64321 - CMC |
| Amperage: | 12 A, 21 A, 2.5 A |
| Connector Type: | CMC |
| Gender: | Receptacle |
| Housing Material: | Polyester |
| Number of Contacts: | 53 |
| Number of Rows: | 5 |
| Pitch: | 2.54 mm, 3.5 mm, 7 mm |
| Material: | Polyester |
| Keying: | Yes |
| Packaging: | Carton |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Product Name: | CMC |
| Part Aliases: | 0643211018 |
| Contact Detail: | 5x 2.8mm, 8 x 1.5mm, 40 x 0.635mm terminals |
| SKU: | MOL64321-1018 |
64321-1018
Specifications
Detailed Description
Introducing the 64321-1018, a high-performance gray CMC series connector designed for power applications. With a versatile amperage rating of 12 A, 21 A, and 2.5 A, this receptacle features a durable polyester housing and boasts 53 contacts arranged in 5 rows for efficient connectivity. The 2.54 mm, 3.5 mm, and 7 mm pitch options offer flexibility in installation, while keying ensures proper alignment. Operating flawlessly in harsh environments from -40 to 125 °C, this connector is RoHS compliant and guarantees reliable performance. Perfect for wire-to-board applications, the 64321-1018 is a essential component in any system requiring secure and efficient power transmission.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 121023-0341 | mPm DIN Valve Connector, Form A, PG9 Internal Threads, 3 Pole Plus Ground Terminal, 250V AC/300V DC, Black Nitrile Gasket and Screw, Bulk Pack Mounted |  |
 | Molex 15-97-9041 | Mini-Fit TPA Key for 2 and 4 Circuit | |
 | Molex 15-97-9061 | Mini-Fit TPA Key for 6 Circuit | |
 | Molex 15-97-9161 | Mini-Fit TPA Key for 16 Circuit | |
 | Molex 19432-0013 | MX150L 2 Circuit Female Sealed Receptacle for 10-12 AWG Wire | |
 | Molex 19433-0013 | MX150L 2 Circuit Plug for 10-12 AWG Wire | |

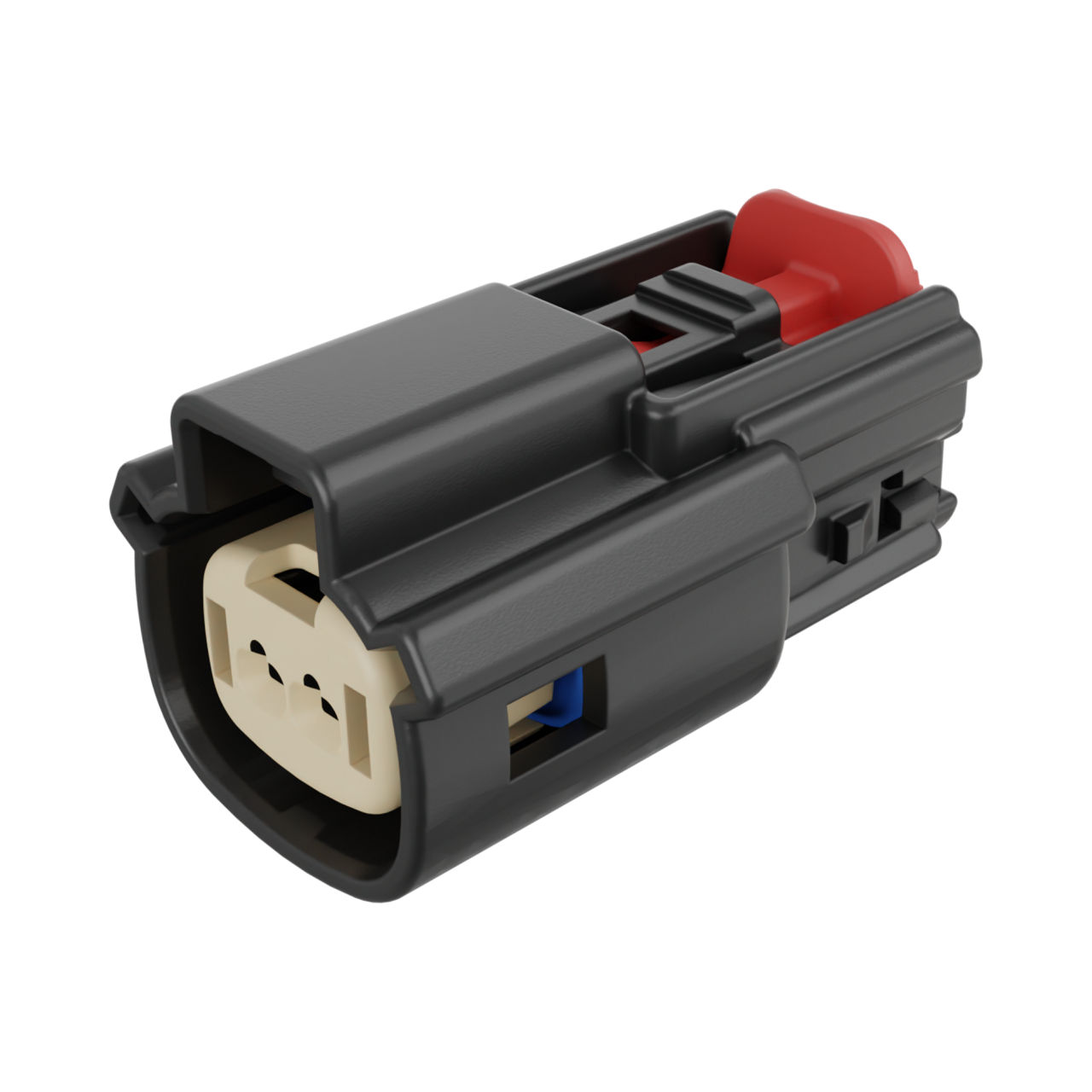

 | Molex 33471-0206 | MX150 Sealed Female Connector, Single Row, 2 Circuits, Polarization A, with Connector Position Assurance, Black | |
