| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 46012-1241 |
| Series: | 46012 - Mini-Fit Plus |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit Plus |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Mating Cycles: | 250 |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.65 - 2.95 mm |
| Part Aliases: | 0460121241 |
| SKU: | MOL46012-1241 |
46012-1241
Specifications
Detailed Description
Introducing the Molex Mini-Fit Plus Crimp Terminal, a high-performance connectivity solution for your power applications. Designed for 20-18 AWG wires, this male terminal features durable copper construction with tin plating for enhanced conductivity and corrosion resistance. The 0.76µm Selective Gold (Au) plating on the contact mating area ensures reliable power transmission, even in demanding environments. With a current rating of 13 A and a voltage tolerance of 600 V, this terminal is perfect for a wide range of industrial and commercial uses. Its crimp or compression termination method offers easy installation, while its compact size and Wire to Wire connector system allow for versatile integration. RoHS compliant and with 250 mating cycles, the Molex Mini-Fit Plus Crimp Terminal guarantees long-lasting performance and peace of mind. Upgrade your power connections today with this top-of-the-line terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-97-5041 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 4 Circuits, Black |  |
 | Molex 15-97-5161 | MINIFIT TPA RCPT HSG 16 CKT V- | |
 | Molex 15-97-9041 | Mini-Fit TPA Key for 2 and 4 Circuit | |
 | Molex 15-97-9061 | Mini-Fit TPA Key for 6 Circuit | |
 | Molex 15-97-9121 | Mini-Fit TPA Key for 12 Circuit | |
 | Molex 15-97-9161 | Mini-Fit TPA Key for 16 Circuit | |
 | Molex 19099-0028 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier, Blue | |
 | Molex 33000-1004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-00-0059 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, Double 22+22 or Single 24-18 AWG, Reel | |

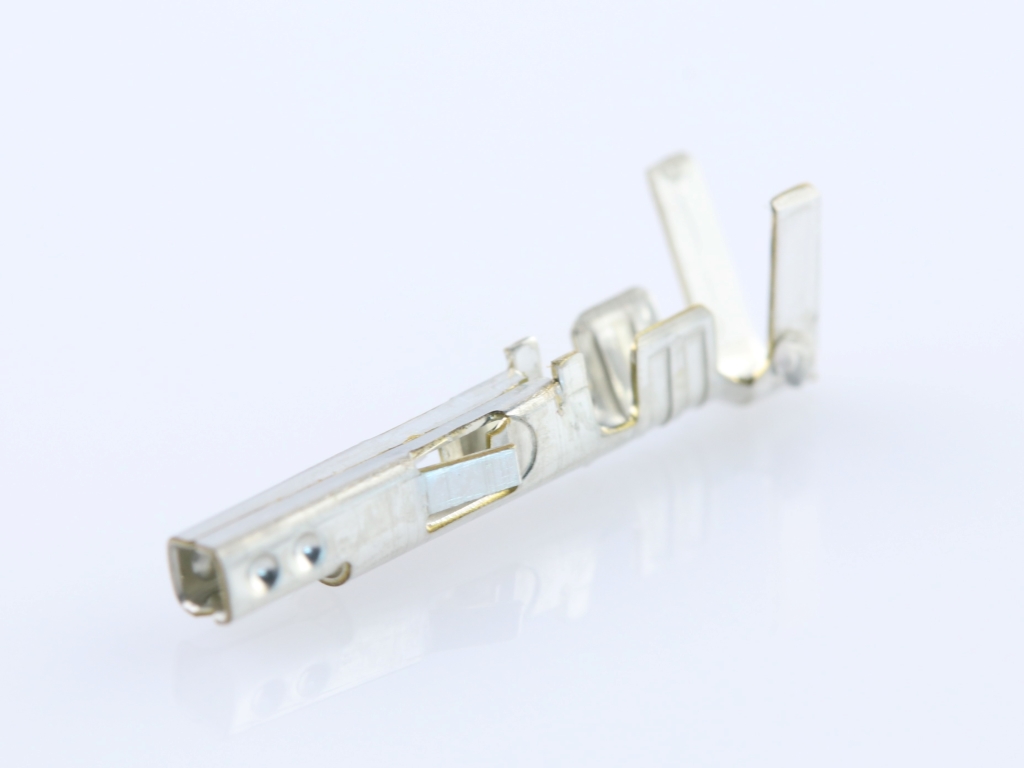

 | Molex 39-00-0065 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, 28-22 AWG, Reel | |
 | Molex 39-01-2080 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-4051 | Mini-Fit Jr. Receptacle Housing, Single Row, 5 Circuits, UL 94V-0, Natural | |
 | Molex 502578-0200 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits, Beige | |
 | Molex 64320-3319 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Brown Coding, Mat Sealed | |
 | Molex 64322-1029 | 0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.75mm | |
 | Molex 64325-1010 | CMC Blind Plug for cavity 0.635mm | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/30/2022 | 512307 - Packaging Method/Quantity Changing. part(s) listed in this notice will undergo changes for a new Delivery Unit. No changes will be made to the product as a result of this change. Samples will not be made available as this is only a Delivery Unit change. | Download | |||
| 08/01/2020 | 508485 - Warehouse transfer. moving from Lincoln (duns# 967495487) to Bolingbrook (Duns# 103340709) | Download | |||
