64319-1211

Heilind Number:	MOL64319-1211
Manufacturer:	Molex
Manufacturer Number:	64319-1211
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

.635mm, 1.50mm, CMC Receptacle, 32 Circuits, Left Wire Output, Black Coding, Mat Sealed

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 64319-1211
Color:	Black
Series:	64319 - CMC
Amperage:	12 A, 6 A
Connector Type:	CMC
Gender:	Receptacle
Housing Material:	Polyester
Number of Contacts:	32
Number of Rows:	4
Pitch:	2.54 mm, 3.7 mm
Material:	Polyester
Keying:	Yes
Operating Temperature Range:	-40 - 125 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Part Aliases:	0643191211
Contact Detail:	8 x 1.5mm & 24 x 0.635mm terminals
SKU:	MOL64319-1211

Detailed Description

Introducing the CMC 64319-1211, a high-performance black receptacle connector designed for power applications. With a versatile amperage rating of 6A or 12A, this connector features a durable polyester housing and 32 contacts arranged in 4 rows for efficient connectivity. Boasting a pitch of 2.54mm and 3.7mm, it offers flexibility in installation. Its keying feature ensures proper alignment during assembly, while its operating temperature range of -40 to 125°C guarantees reliable performance in harsh environments. RoHS compliant and with a secure lock to the mating part, the CMC 64319-1211 is a dependable solution for your wire-to-board connection needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 33472-0606	MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization A, with Connector Position Assurance, Black
	Molex 39-01-2020	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 502579-0000	CLIK-Mate 1.50mm Pitch Wire-to-Board Crimp Terminal, Tin Plating, 24-28 AWG, Reel
	Molex 64319-1201	CMC Wire Cap for 32 Circuits, CMC Receptacle Mat Sealed

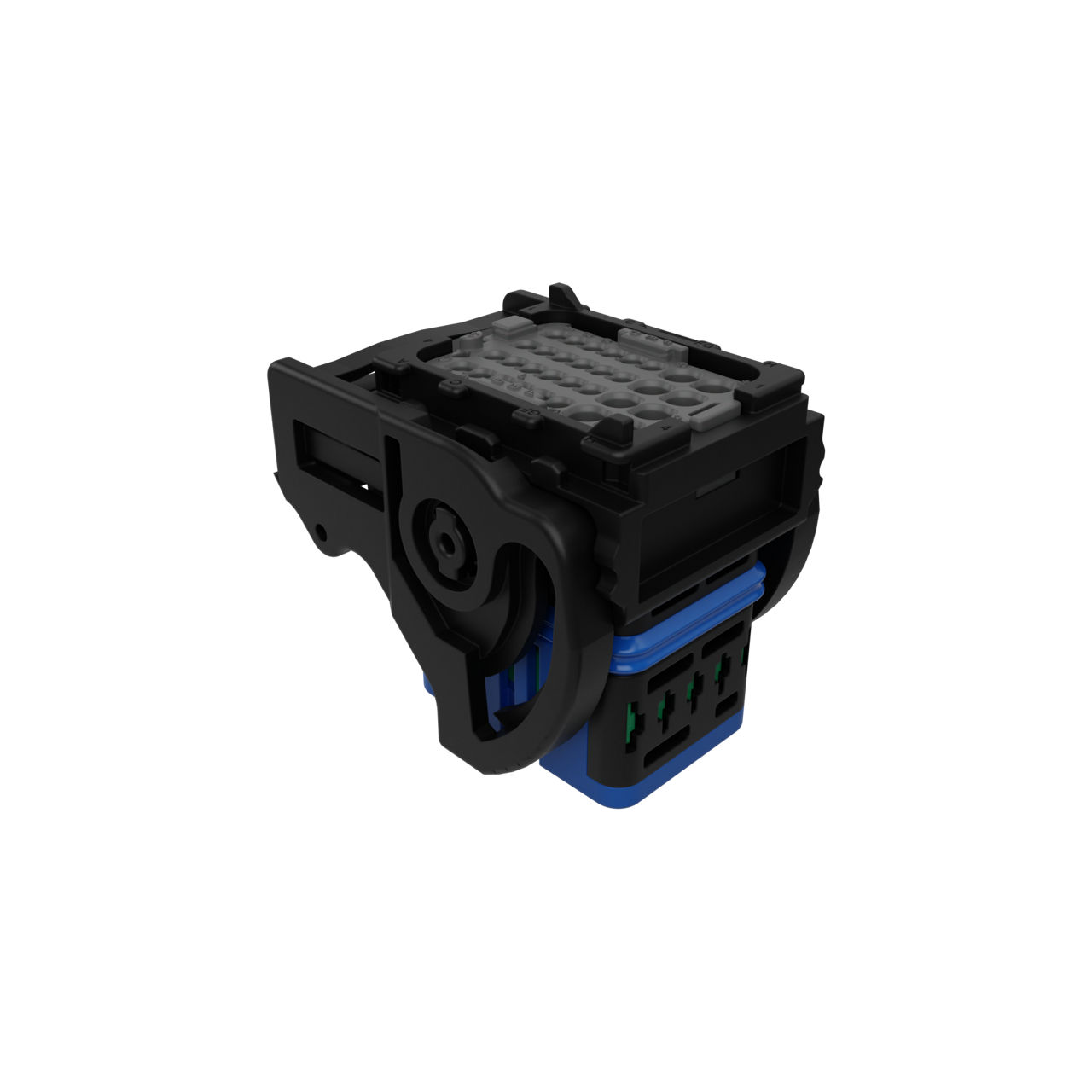

	Molex 64319-1216	.635mm, 1.50mm, CMC Receptacle, 32 Circuits, Left Wire Output, Blue Coding, Mat Sealed
	Molex 64319-3211	.635mm, 1.50mm, CMC Receptacle, 32 Circuits, Right Wire Output, Black Coding, Mat Sealed
	Molex 64319-3218	.635mm, 1.50mm, CMC Receptacle, 32 Circuits, Right Wire Output, Gray Coding, Mat Sealed
	Molex 64320-1301	CMC Wire Cap for 48 Circuits and 28 Circuits, CMC Receptacle Mat Sealed
	Molex 64320-1319	.635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Brown Coding, Mat Sealed
	Molex 64320-3311	.635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Black Coding, Mat Sealed
	Molex 64320-3319	.635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Brown Coding, Mat Sealed
	Molex 64321-1018	.635mm, 1.50mm, 2.80mm, CMC Receptacle, 53 Circuits, Left Wire Output, Gray Coding, Mat Sealed
	Molex 64321-1101	CMC Wire Cap for 53 Circuits, CMC Receptacle Mat Sealed

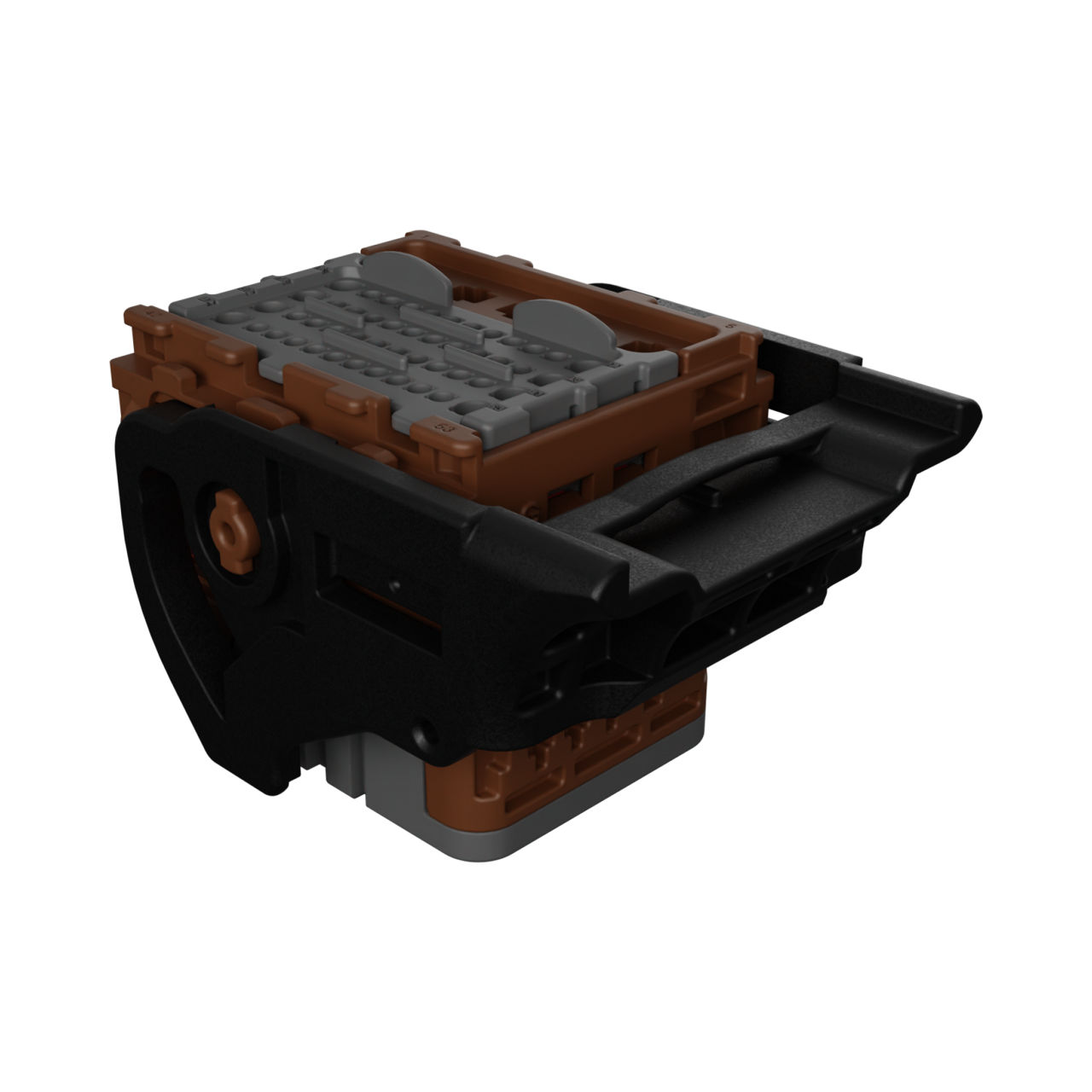

	Molex 64321-2018	.635mm, 1.50mm, 2.80mm, CMC Receptacle, 53 Circuits, Right Wire Output, Gray Coding, Mat Sealed
	Molex 64322-1029	0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.75mm
	Molex 64323-1029	1.50mm CMC CP Female Terminal, Tin Plated, for tab dimensions 1.5mm x 0.8mm, Wire Size 0.50mm
	Molex 64325-1010	CMC Blind Plug for cavity 0.635mm
	Molex 64325-1023	CMC Blind Plug cavity 1.50mm

Product Change Notice

Effective Date	Description of Change	Download
06/16/2025	515483 - Equipment/ production transfer or rearrangement. This notification is to inform you about equipment transfer that have been used to manufacture impacted part(s). Equipment have been moved to different site/ location/ premises. No changes will be made to product as part of this change.	Download
01/31/2025	515340 - Change Supplier. This notification is to inform you about Molex will add a second source for seal components to ensure business continuity while demand is growing.	Download
09/20/2023	514267 - Retraction of PCN 512573. This PCN is updated PCN which make some modification of previous PCN 512573 Because of resource and strategy adjustment, Molex decides to suspend alternative material study/ qualification on some products during this PCN.	Download
05/08/2023	513347 - Capacity change or tool replacement. In order to overcome capacity issues, Molex will add four new copy molds for CMC 32w & 48w RCPTs in order to increase its output.	Download
01/29/2023	512573 - Change Supplier. The purpose of this notice is to inform you that Molex will add a second source resin. Molex will take necessary qualification action on new source material to ensure the product meets the same form, fit, and function requires as defined in the current Molex product specification and sales drawing	Download
01/18/2023	512999 - Capacity change or tool replacement. This notice is to inform you that Molex will expand its production capacity to meet customer expectations in order to ensure that all customers can receive good services in a timely manner	Download
12/05/2022	512406 - Capacity change or tool replacement. s notification is to inform you about set of tooling is being added to meet the current and future demands of this product referenced below. There will be no changes in fit, form or function from additional tooling when compared to the existing tooling	Download
03/22/2022	510636 - Capacity change or tool replacement. due to OEM increase in product we are experiencing extremely high demand beyond our capacity to respond within leadtime. molex is expediting capacity tooling to increase output.	Download
10/23/2015	GCM 10682489 - Manufacturing Process Change.	Download
06/06/2014	GCM 10631744 - Supplier Change.	Download
