| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 53048-0810 |
| Color: | Natural |
| Series: | 53048 |
| Amperage: | 1 A |
| Connector Type: | PicoBlade |
| Number of Contacts: | 8 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Body Orientation: | Right Angle |
| Pitch: | 1.25 mm |
| Voltage: | 125 V |
| Material: | Nylon |
| Orientation: | Right Angle |
| Keying: | No |
| Tail Length: | 2.3 mm |
| Operating Temperature Range: | -40 - 85 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 8 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| PCB Thickness (Recommended): | .8 mm |
| Connector System: | Wire to Board |
| Current Derating Order No: | 987651-3691 |
| Glow Wire Capable: | No |
| Guide to Mating Part: | No |
| Lock to Mating Part: | Yes |
| Mated Height: | 3.5 mm |
| Stackable: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Product Name: | PicoBlade |
| Part Aliases: | 0530480810 |
| SKU: | MOL53048-0810 |
53048-0810
Specifications
Detailed Description

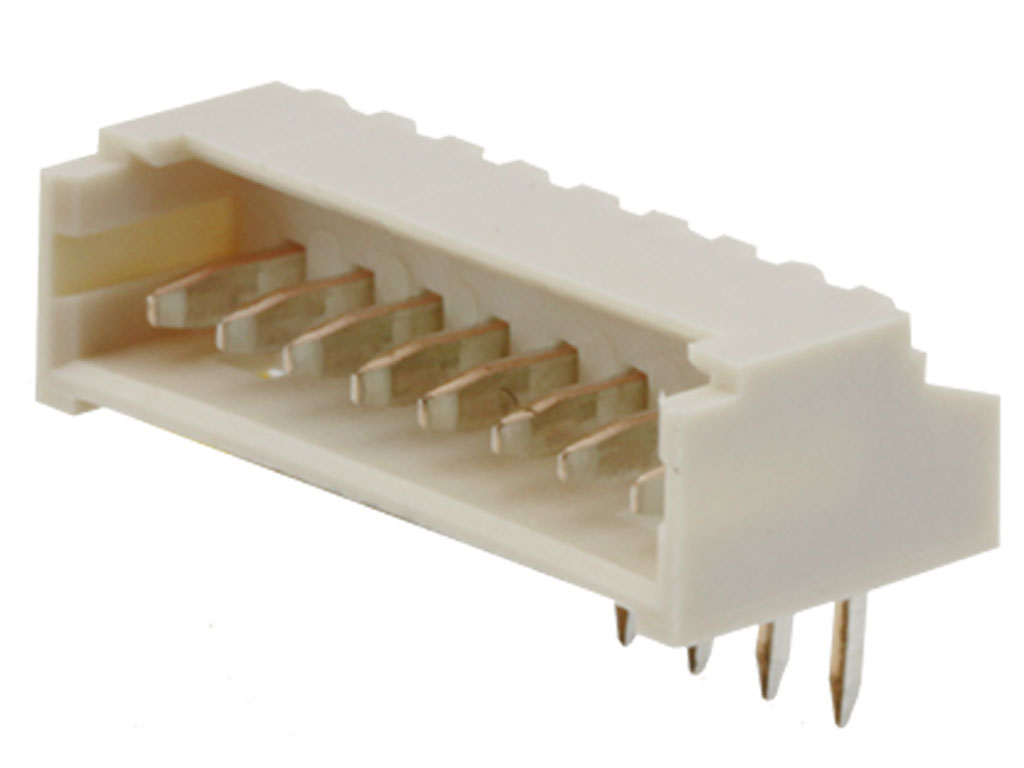

Introducing the PicoBlade 53048 Right Angle Connector, a versatile and reliable solution for your wire-to-board and wire-to-wire connectivity needs. With a low amperage rating of 1A and a voltage tolerance of 125V, this connector is perfect for small-scale power and signal applications. Featuring 8 tin-plated contacts, it ensures secure and efficient transmissions. Its through-hole termination method and nylon construction guarantee durability, even in harsh operating environments ranging from -40 to 85°C. Fully shrouded and with a mated height of 3.5mm, it offers enhanced safety and protection. RoHS compliant and in stock for immediate shipping, the PicoBlade 53048 is the ideal choice for compact and high-performance electronic systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 10-89-7042 | 2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 4 Circuits, 0.38 |  |
 | Molex 15-91-3034 | 2.54mm Pitch SL Wire-to-Board Header, Low Profile, Surface Mount, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 3 Circuits, Tin (Sn) Plating | |
 | Molex 22-05-3081 | KK 254 Solid Header, Right Angle, with Friction Lock, 8 Circuits, Tin (Sn) Plating | |
 | Molex 39-28-1243 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 24 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 53047-0610 | 1.25mm Pitch PicoBlade Wire-to-Board Header, Vertical, with Friction Lock, 6 Circuits | |
 | Molex 53048-0210 | 1.25mm Pitch PicoBlade Header, Right Angle, 2 Circuits | |
 | Molex 53048-0310 | 1.25mm Pitch PicoBlade Header, Right Angle, 3 Circuits | |
 | Molex 53048-0410 | 1.25mm Pitch PicoBlade Header, Right Angle, 4 Circuits | |
 | Molex 53048-0510 | 1.25mm Pitch PicoBlade Header, Right Angle, 5 Circuits | |
 | Molex 53048-0610 | 1.25mm Pitch PicoBlade Header, Right Angle, 6 Circuits | |
 | Molex 53048-0710 | 1.25mm Pitch PicoBlade Header, Right Angle, 7 Circuits | |
 | Molex 53048-0910 | 1.25mm Pitch PicoBlade Header, Right Angle, 9 Circuits | |
 | Molex 53048-1010 | 1.25mm Pitch PicoBlade Header, Right Angle, 10 Circuits | |
 | Molex 53253-0670 | 2.00mm Pitch Micro-Latch Wire-to-Board Header, Vertical, Square Pin, Three-sided Shroud, 6 Circuits | |
 | Molex 53254-0370 | 2.00mm Pitch Micro-Latch Wire-to-Board Header, Right Angle, Square Pin, Three-sided Shroud, 3 Circuits | |

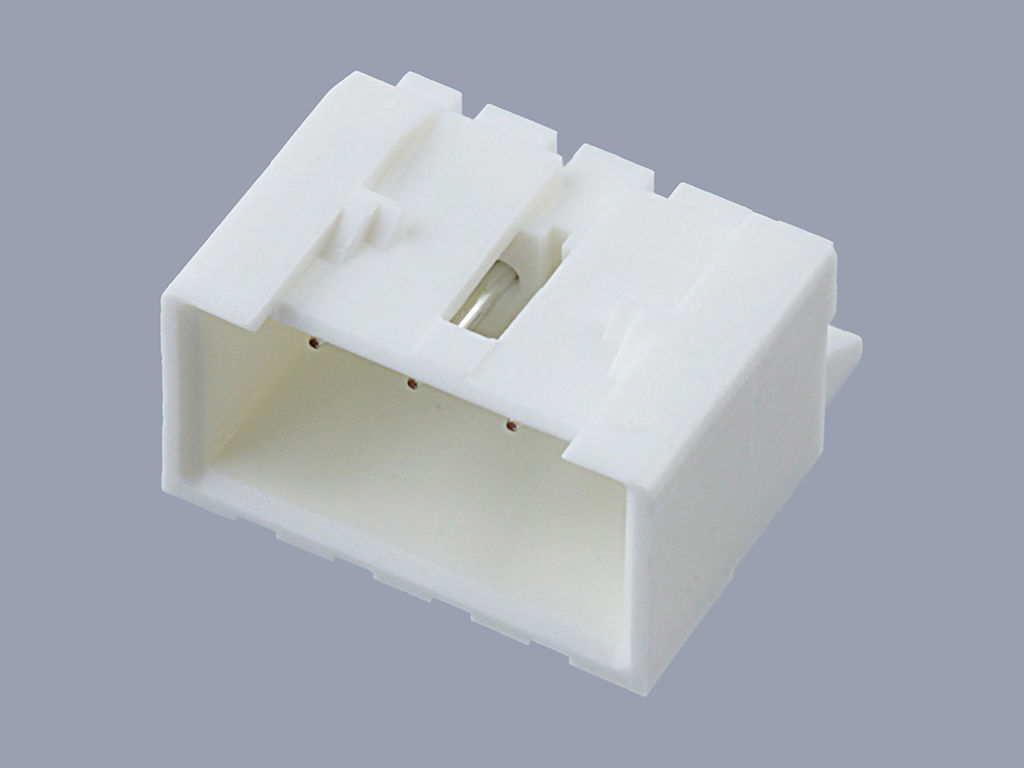

 | Molex 53426-0410 | 2.50mm Pitch Mini-Lock Wire-to-Board Header, Right Angle, Friction and Positive Lock, 4 Circuits | |
