| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 22-05-3081 |
| Color: | Natural (White) |
| Series: | 7478 - KK 254 |
| Amperage: | 4 A |
| Connector Type: | KK 254 |
| Number of Contacts: | 8 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Right Angle |
| Pitch: | 2.54 mm |
| Voltage: | 500 V |
| Material: | Nylon |
| Orientation: | Right Angle |
| Tail Length: | 3.58 mm |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 5.08 µm |
| Number of Contacts Loaded: | 8 |
| Mating Cycles: | 25 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 5.08 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | 2.54 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | Yes |
| Breakaway: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0022053081 A-7478-08A222 |
| SKU: | MOL22-05-3081 |
22-05-3081
| Heilind Number: | MOL22-05-3081 |
| Manufacturer: | Molex |
| Manufacturer Number: | 22-05-3081 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:
KK 254 Solid Header, Right Angle, with Friction Lock, 8 Circuits, Tin (Sn) Plating
More >>Specifications
Detailed Description
Introducing the 22-05-3081 KK 254 Solid Header, a versatile connector designed for reliable through-hole termination on PCBs. This right angle header features 8 circuits and is plated with tin for enhanced conductivity. With a low amperage rating of 4 A and a voltage tolerance of 500 V, it is suitable for various electronic applications. Constructed with brass contacts and a nylon body, this connector ensures durability and performance. Its polarized and stackable design offers ease of use and efficient PCB assembly. Certified for CSA and UL standards, it guarantees quality and safety. RoHS compliant and lead-free solder capable, the 22-05-3081 is the ideal choice for environmentally conscious projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

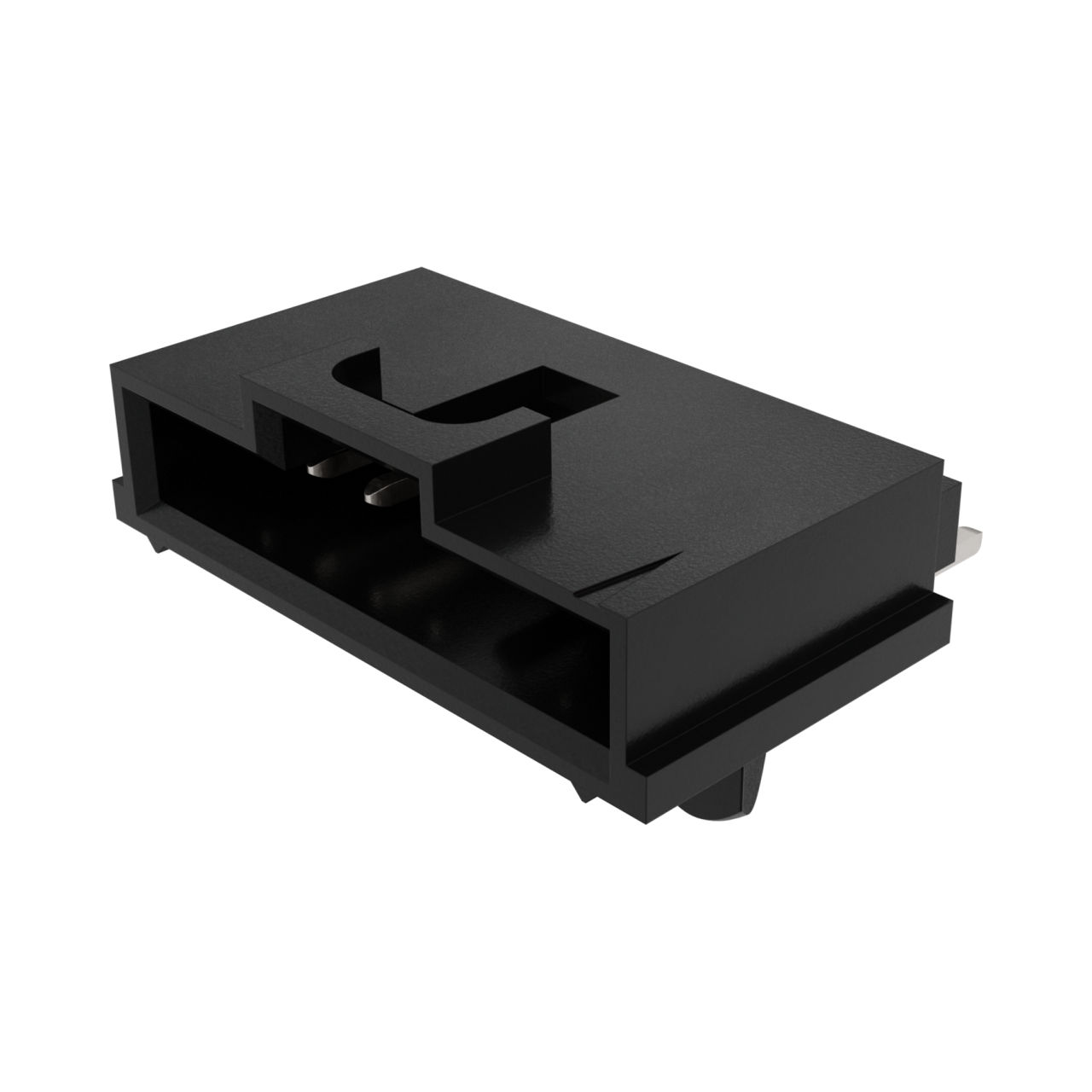

 | Molex 15-91-6079 | 2.54mm Pitch SL Wire-to-Board Header, Low Profile, Surface Mount, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 7 Circuits, Tin (Sn) Plating, Embossed Tape Packaging |  |
 | Molex 22-05-3051 | KK 254 Solid Header, Right Angle, with Friction Lock, 5 Circuits, Tin (Sn) Plating | |
 | Molex 22-05-3061 | KK 254 Solid Header, Right Angle, with Friction Lock, 6 Circuits, Tin (Sn) Plating | |

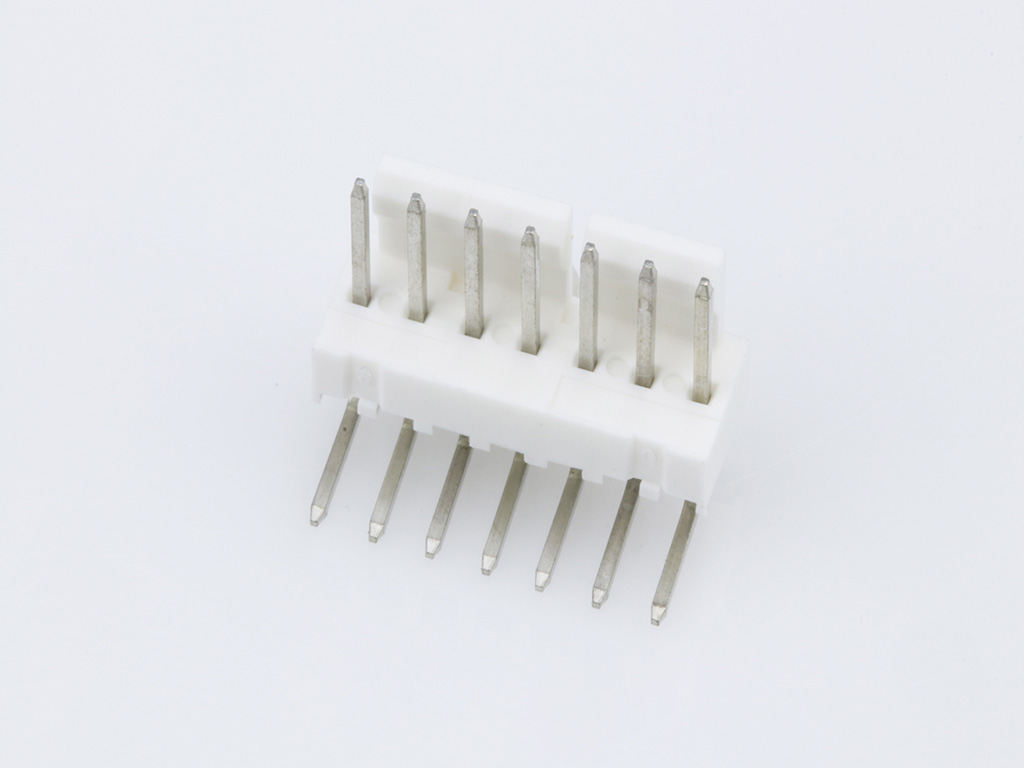

 | Molex 22-05-3071 | KK 254 Solid Header, Right Angle, with Friction Lock, 7 Circuits, Tin (Sn) Plating | |
